Wheels with pneumatic tyres, Super-Elastic wheels from Gesa

Pneumatic wheels/Super-Elastic wheels from Gesa Transporttechnik

Pneumatic wheels are air-filled wheels consisting of a wheel body with a roller bearing and a pneumatic tire. They are preferably used when transporting shock-sensitive products or when transporting on rough, uneven surfaces. Because air-filled wheels are suitable for both indoor and outdoor use, you'll find them on all kinds of products - from transport carts to transport equipment and wheelbarrows.

You can find our wheels with pneumatic tyres/super-elastic wheels as well as the entire wheel and castor catalog here:

Super-Elastic Wheels

Wheels and Castors

Air-filled wheels are characterized by their versatile properties and have many advantages.

Advantages of air-filled wheels:

• Ideal for transporting heavy goods on uneven ground
• Threshold crossings are no problem
• The air cushion protects sensitive floors
• damping when transporting sensitive goods

NOTE:
Please make sure to check the air pressure regularly. If the amount of air in the tires decreases, the load capacity of the wheels also decreases!

At Gesa Transporttechnik you will find pneumatic wheels in various series designs:

GBL series / GKL series / SEB series / PU series

Our pneumatic tires differ not only in load capacity (50 - 2145 kg), diameter (185 - 520 mm) or in the wheel width (45 - 170 mm) - At Gesa you will also find apparatus wheels in various series type designs as well as swivel and fixed castors with and without brakes.

Our pneumatic wheels also differ in terms of the wheel profile. A distinction is made here between a groove profile and a block profile:

Groove profile:

• Ripes run parallel or diagonally
• Extremely smooth running
• optimal shock absorption
• ideal for transporting delicate loads
• best handling even on wet ground
• Especially suitable for sensitive floors

Block profile or lug profile:

• ideal for uneven floors
• extremely robust and durable
• Suitable for soft and hard surfaces
• shock resistant
• Weather resistant

In order to make your selection a little easier, we have created a brief overview of our roles for you below:

Overview of series types:

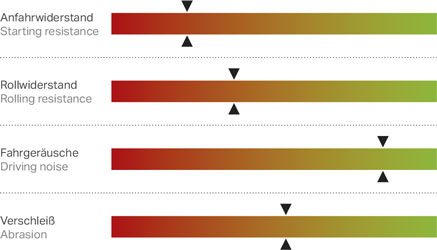

GBL series
Load capacity: 50 - 250 kg
Tread: Rubber

Wheels of the GBL series have a pneumatic tire with a tube on a galvanized sheet steel rim. The tires are available with groove and block profiles and, depending on the variant, the wheels contain roller or grooved ball bearings. The GBL series wheels can be used at temperatures from -25 °C to +50 °C.

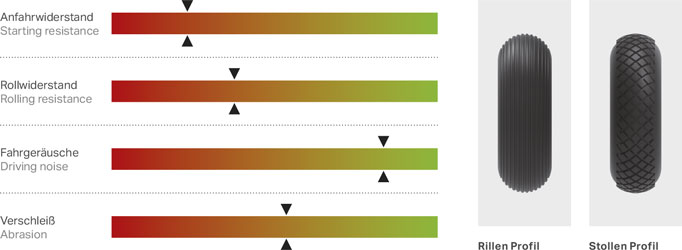

GKL series
Load capacity: 50 - 250 kg
Tread: Rubber

Pneumatic tires with groove or lug profile, with tube. Gentle on the floor. Low rolling resistance on uneven floors. Plastic rim.

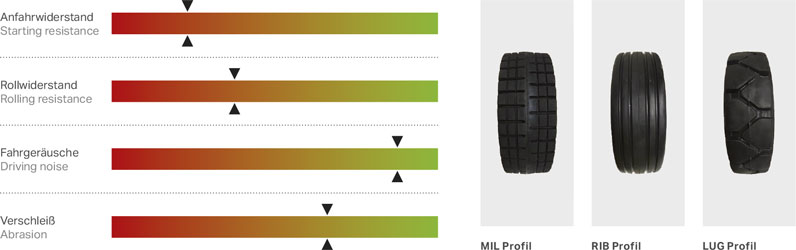

SEB series
Load capacity: 412 - 2145 kg
Tread: Rubber

Wheels of the SEB series are wheels with tires made of vulcanized elastic rubber with three components on a galvanized sheet steel rim. The tires are available with groove (RIB) and block profile (LUG) and the wheels are equipped with groove ball bearings. The SEB series wheels can be used at temperatures from -25 °C to +80 °C.

SEB series
Load capacity: 195 - 2145 kg
Tread: Rubber

Wheels of the SEB series are wheels with tires made of vulcanized elastic rubber with three components on a galvanized sheet steel rim. The tires are available with grooved (RIB) and block profile(LUG) and the wheels are equipped with groove ball bearings. The SEB series wheels can be used at temperatures from -25 °C to +80 °C .

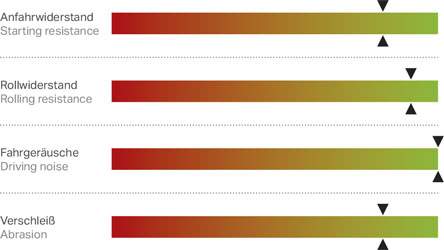

PUK/PUS series
Load capacity: 100 - 140 kg
Tread: polyurethane

Wheels in the PUK and PUS series are wheels with a tread made of foamed polyurethane on a plastic rim (PUK) or Sheet steel rim (PUS).
The wheels are an alternative to pneumatic tires!
They are puncture-proof, non-marking, vibration-damping, with low rolling resistance.

Guide to wheels and castors:

You can find additional information about the material properties of air wheels and their possible uses here: Guide Wheels and Castors

Reel styles and purchasing options:

You can easily configure both wheels and swivel and fixed castors with/without brakes using the shopping options on the product category page.

Special design wheels and castors:

We produce fast, precise and according to your specifications special wheels for your area of application.

Write to us: [email protected]
