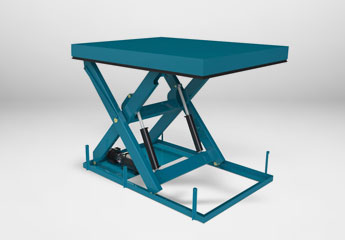

Loading lift table - scissor lift table for loading and unloading
|
|
Having to push heavily loaded wire mesh trolleys up steep or long ramps is extremely tiring and time-consuming. - And that's really not necessary these days! Because there are practical alternatives: With a loading lift table, moving goods quickly, ergonomically and conveniently is easy. Our loading platforms or loading lifting tables are used especially on ramps when loading and unloading trucks. |
The loading lift table compensates for the height difference between the truck and the fixed loading ramp - it is therefore designed for use in difficult operating conditions. With our loading lift tables, the platform can be raised in a lifting time of seconds and any useful stroke. With the segmented loading flap, which bridges the gap to the vehicle, the loading lift table is flexible and easy to adapt to the different vehicle widths and can therefore be precisely adapted to your needs. Furthermore, the scissor lift tables are designed in such a way that they withstand the environmental, noise and load loads, especially when there are frequent punctual wheel loads that occur when various vehicles and trucks drive on or cross the platform. The height of our loading lift tables varies with our different series types, but all models are also ideal for being installed in a pit. This makes loading operations even easier and can also be carried out at ground level.
Of course, our loading lifting tables come with all the necessary safety devices equipped. All-round safety protective contact strip, service opening in the platform and hose rupture protection are standard. These can also be expanded according to your specifications and adapted to your needs or local and factory regulations. As an option, this lifting table can be converted for applications that require high cycle rates. Ideal for integration and use in conveyor lines or in multi-shift operation.
With the appropriate Accessories the loading lift table can be adapted for many different applications at the customer's request. Examples of this are fall protection through railings on the platform or underrun protection in the form of bellows, plastic roller blinds or grating so that nobody can get under the lifting table. Roll-off protection, bolt-locked platform, damping buffers, substructures and superstructures, also mobile, oil-tight leak trays, lifting protection, light barriers, one or more intermediate stops of the platform, end-of-stroke cushioning of the cylinders and/or use of environmentally friendly hydraulic oil. But also various versions of the control console, such as wall and switch box mounting, lockability are common and available accessories. And different surface treatments, such as galvanizing, coating in all common RAL colors are also possible. We can also deliver almost all lifting tables in stainless steel. Special requirements such as explosion protection and clean room suitability on request.
Execution details and components of our loading lift table series JX
|
|
A compact hydraulic power pack with a transparent tank for easy checking of the oil level. The hydraulic unit is equipped with an overflow valve as standard. Suction and return filters are installed in the tank to minimize noise. The device is splash-proof according to IP65 with the motor IP55. |
|
|
The square steel profile of the scissor arms made of rectangular hollow profile offers excellent lateral stability. Pillow block bearings on all moving parts reduce bearing stress; This, along with grease fittings for all pivot points and anodized pins, results in longer bearing life. |
|
|
Precision-made scissor arm pivot points and machined profile arms ensure smooth performance and geometric movement accuracy. |
|
|
Protective contact strip made of aluminum profile with plastic corner connectors to reduce the risk of pinching. |
|
|
Motor with protection class IP55. |
|
|
The cylinders are dampened to ensure an almost silent and gentle lowering. Each cylinder is fitted with a hose rupture valve to ensure an immediate stop in the event of a pipe or hose rupture. |
|
|
Double transparent casters ensure perfect load balancing and eliminate lateral loads, thereby extending service life. All metallic rolling elements are galvanized. |
|
|
Upper stroke limit switch with easy adjustment of the upper stroke limit.< /td> |
|
|
Maintenance supports for safely carrying out any repair and service work. |
|
|
The adjustable flow control valve ensures a constant flow rate when lowering |
|
|
Lower speed is independent of load. |
|
|
Quick-locking spigots and bushings allow for inexpensive, easy and quick maintenance of lift table equipment |
|
|
CE marking |
|
|
A smart control box with options for a range of accessories. With M12 contacts for easy assembly. It is also possible to wire the control with potential-free contacts on the terminal strip in order to integrate the lifting table into external controls. |
Custom-made products
Do you need an individual loading solution for your company? Do you need a free-standing hydraulic unit, limit switch at the top, drive-over ramps, self-supporting base frame, roll stop, maintenance flap, railings, barriers and a different finish?
