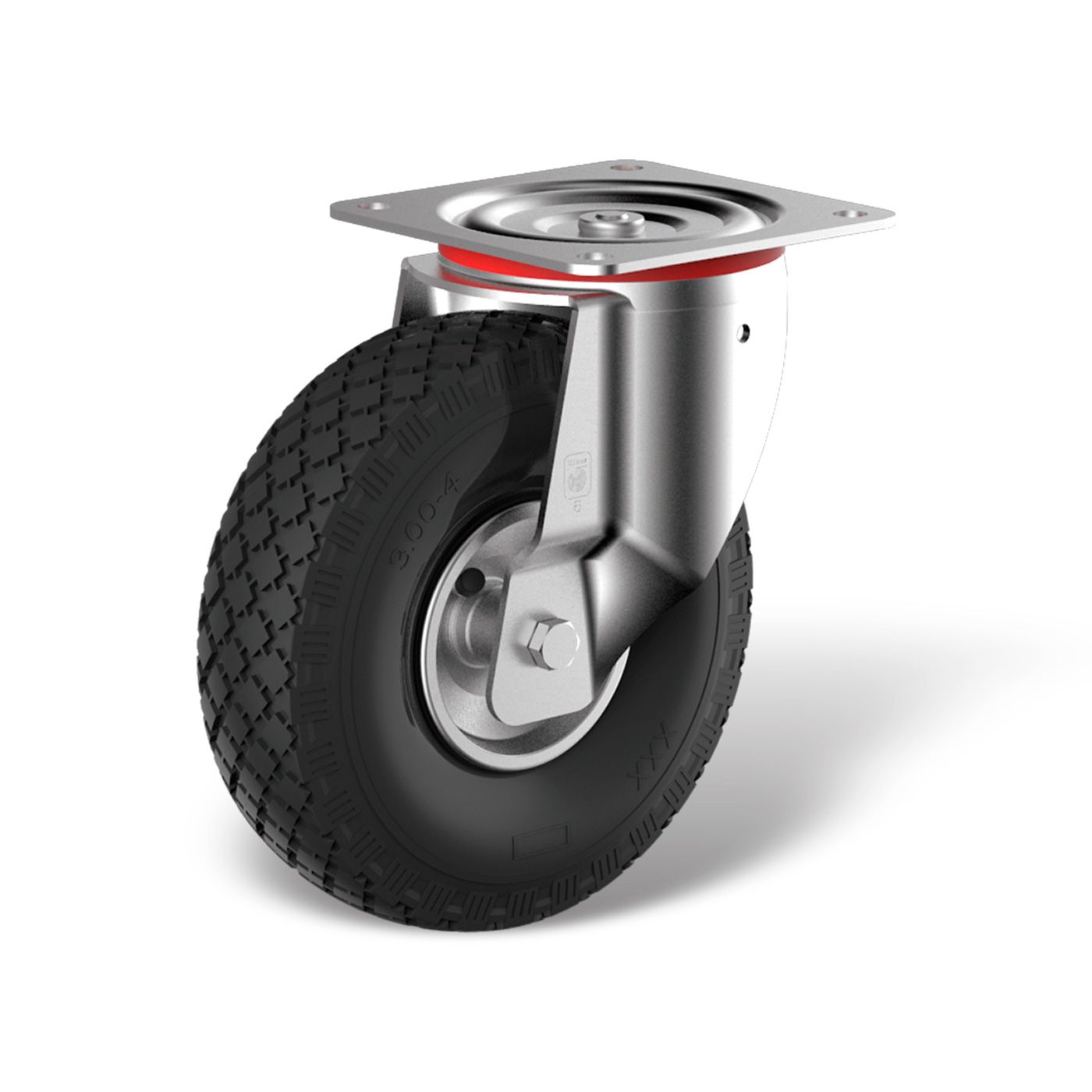

Swivel castor, wheel type GBL and GKL

Steel swivel forks with top plate. Swivel head with double ball race which is sealed to protect against dust and dirt. The top plate with four bolt holes is directly riveted to the fork to ensure smooth movement with minimal tolerances in the swivel head; The wheels of series GBL are pneumatic wheels with tyres and tubes on a galvanized pressed steel rim. The wheels are available with line or block profile and are equipped with roller or ball bearings. The series GBL is suitable for applications for a temperature range of -25 °C up to +50 °C.
