Conical conveyor rollers, driven | Gesa transport technology
All the individual components of our conveyor rollers - just click for more information
Drive
Bearing
Axle material
Axis version
Cone length
>back to overview to start a new configuration
Conveyor roller conically, driven Please select the pipe Ø, material and wall thickness
| PipeØ | Wall thickness | S | SV | SP / 2 mm | SP / 3 mm | SP / 5 mm | N | PG | PB |
|---|---|---|---|---|---|---|---|---|---|
| 30 | 1 | ||||||||
| 50 | 1,5 | ||||||||
| 50 | 2,8 |
Drive
Axis diameter
Bearing
Bearing diameter
Axle material
Axis version
Cone length
qty
Please specify number of pieces
Alle Felder sind erforderlich
Die Mindestmenge beträgt 10 Stück.
Konfiguration
Article number
Tube diameter
Material
Drive
Axis diameter
Bearing
Bearing diameter
Axle material
Axis version
Cone length
Vielen Dank für Ihre Anfrage!
Overview of all drives
AT1R PC8z20 K Jam / Tensioner (Toothed Belt)
Toothed belt pulley 8 M z20 for 2 toothed belts with 12mm width made of thermoplastic material as accumulation drive (jam) or as fixed drive (fixed) with press fit. Deep Groove Ball Bearings 6202 also available as ZZ (AT1R PC8z20 Z, K), 2RS (AT1R PC8z20 RS, K) or INOX (AT1R PC8z20 RSN, K).
Toothed belt pulley 8 M z20 for 2 toothed belts with 12mm width made of thermoplastic material as accumulation drive (jam) or as fixed drive (fixed) with press fit. Deep Groove Ball Bearings 6202 also available as ZZ (AT1R PC8z20 Z, K), 2RS (AT1R PC8z20 RS, K) or INOX (AT1R PC8z20 RSN, K).
AT2R PC8z20, blurred (Timing belt)
Steel / stainless steel timing belt pulley 8 M z20 for 2 timing belts with 12mm width welded in pipe. Deep Groove Ball Bearings 6202 ZZ (AT2R PC8z20) or 2RS (AT2R PC8z20 RS) available.
Steel / stainless steel timing belt pulley 8 M z20 for 2 timing belts with 12mm width welded in pipe. Deep Groove Ball Bearings 6202 ZZ (AT2R PC8z20) or 2RS (AT2R PC8z20 RS) available.
AT1K1 / 2z11 K Jam / Fixed (single sprocket 1/2)
Plastic sprocket 1/2x5 / 16 z11 with rack and pinion gearing as accumulation drive (jam) or as fixed drive (fixed) with press fit. Deep groove ball bearings 6202 also available as ZZ or 2RS. Also available with normal toothing. As a fixed drive not suitable for stop-and-go.
Plastic sprocket 1/2x5 / 16 z11 with rack and pinion gearing as accumulation drive (jam) or as fixed drive (fixed) with press fit. Deep groove ball bearings 6202 also available as ZZ or 2RS. Also available with normal toothing. As a fixed drive not suitable for stop-and-go.
AT1K1 / 2z11 S Jam / Fixed (single sprocket 1/2 )
Steel sprocket 1/2 x5 / 16 z11 with rack and pinion gearing as jam drive (jam) or as fixed drive (fixed) with press fit. Deep groove ball bearings 6202 also available as ZZ or 2RS. As a fixed drive not suitable for stop-and-go.
Steel sprocket 1/2 x5 / 16 z11 with rack and pinion gearing as jam drive (jam) or as fixed drive (fixed) with press fit. Deep groove ball bearings 6202 also available as ZZ or 2RS. As a fixed drive not suitable for stop-and-go.
AT1K1 / 2z11 S Stowage E (single sprocket 1/2 )
Steel sprocket 1/2 x5 / 16 z11 as accumulation drive with adjustable driving force. Drive head with deep groove ball bearing 6001 ZZ also available with 6001 2RS (AT1K 1 / 2z11, RS, stowage E) and counter bearing 024 with 6202 ZZ also with 6202 2RS (024RS). Axle on both sides with female thread M8x15. By adjusting the nuts on the fine thread M12x1,25 the friction on the friction disc and thus the driving force is increased. Maximum permissible conveying speed 0.5 m / sec.
Steel sprocket 1/2 x5 / 16 z11 as accumulation drive with adjustable driving force. Drive head with deep groove ball bearing 6001 ZZ also available with 6001 2RS (AT1K 1 / 2z11, RS, stowage E) and counter bearing 024 with 6202 ZZ also with 6202 2RS (024RS). Axle on both sides with female thread M8x15. By adjusting the nuts on the fine thread M12x1,25 the friction on the friction disc and thus the driving force is increased. Maximum permissible conveying speed 0.5 m / sec.
AT1K1 / 2z11 S Stau EK (single sprocket 1/2 )
Steel sprocket 1/2 x5 / 16 z11 as accumulation drive with adjustable driving force. Drive head with deep groove ball bearing 6001 ZZ / 6202 Currently also available with 6001 2RS / 6202 2RS (AT1K 1 / 2z11, RS, EK stowage) and counter bearing 024 with 6202 ZZ also with 6202 2RS (024RS). Axle on both sides with female thread M8x15. By adjusting the nuts on the fine thread M12x1,25, the friction of the sprocket in the slide bushing and thus the driving force is increased. Maximum permissible conveying speed 0.5 m / sec.
Steel sprocket 1/2 x5 / 16 z11 as accumulation drive with adjustable driving force. Drive head with deep groove ball bearing 6001 ZZ / 6202 Currently also available with 6001 2RS / 6202 2RS (AT1K 1 / 2z11, RS, EK stowage) and counter bearing 024 with 6202 ZZ also with 6202 2RS (024RS). Axle on both sides with female thread M8x15. By adjusting the nuts on the fine thread M12x1,25, the friction of the sprocket in the slide bushing and thus the driving force is increased. Maximum permissible conveying speed 0.5 m / sec.
AT1K1 / 2z11, blurred (Single sprocket 1/2 )
Steel sprocket 1/2 x5 / 16 z11 with truss gearing welded with tube. Deep groove ball bearings 6202 also available as ZZ or 2RS.
Steel sprocket 1/2 x5 / 16 z11 with truss gearing welded with tube. Deep groove ball bearings 6202 also available as ZZ or 2RS.
AT1K1 / 2z14 K Jam / Fixed (single sprocket 1/2 )
Sprocket 1/2 x5 / 16 z14 made of thermoplastic material as accumulation drive (jam) or as fixed drive (fixed) with press fit , Deep groove ball bearings 6202 also available as ZZ or 2RS. As a fixed drive not suitable for stop-and-go.
Sprocket 1/2 x5 / 16 z14 made of thermoplastic material as accumulation drive (jam) or as fixed drive (fixed) with press fit , Deep groove ball bearings 6202 also available as ZZ or 2RS. As a fixed drive not suitable for stop-and-go.
AT1K1 / 2z14 S Jam / Fixed (single sprocket 1/2 )
Steel sprocket 1/2 x5 / 16 z14 with rack and pinion gearing as jam drive (jam) or as fixed drive (fixed) with press fit. Deep groove ball bearings 6202 also available as ZZ or 2RS. As a fixed drive not suitable for stop-and-go.
Steel sprocket 1/2 x5 / 16 z14 with rack and pinion gearing as jam drive (jam) or as fixed drive (fixed) with press fit. Deep groove ball bearings 6202 also available as ZZ or 2RS. As a fixed drive not suitable for stop-and-go.
AT1K1 / 2z14 S Stau EK (single sprocket 1/2 )
Steel sprocket 1/2 x5 / 16 z14 as accumulation drive with adjustable driving force. Drive head with deep groove ball bearing 6202 ZZ also available with 6202 2RS (AT1K 1 / 2z14, RS, EK jam) and counter bearing 024 with 6202 ZZ also with 6202 2RS (024RS). Axle on both sides with female thread M8x15. By adjusting the nuts on the fine thread M12x1,25, the friction of the sprocket in the slide bushing and thus the driving force is increased. Maximum permissible conveying speed 0.5 m / sec.
Steel sprocket 1/2 x5 / 16 z14 as accumulation drive with adjustable driving force. Drive head with deep groove ball bearing 6202 ZZ also available with 6202 2RS (AT1K 1 / 2z14, RS, EK jam) and counter bearing 024 with 6202 ZZ also with 6202 2RS (024RS). Axle on both sides with female thread M8x15. By adjusting the nuts on the fine thread M12x1,25, the friction of the sprocket in the slide bushing and thus the driving force is increased. Maximum permissible conveying speed 0.5 m / sec.
AT1K1 / 2z14, blurred (Single sprocket 1/2 )
Steel sprocket 1/2 x5 / 16 z14 with spline gearing welded with tube. Deep groove ball bearings 6202/6003 also available as ZZ or 2RS.
Steel sprocket 1/2 x5 / 16 z14 with spline gearing welded with tube. Deep groove ball bearings 6202/6003 also available as ZZ or 2RS.
AT1K5 / 8z12 S Jam / Fixed (single sprocket 5/8 )
Steel sprocket 5/8 x3 / 8 z12 with rack and pinion gearing as jam drive (jam) or as fixed drive (fixed) with press fit. Deep groove ball bearings 6202/6003 also available as ZZ or 2RS. As a fixed drive not suitable for stop - and - go operation.
Steel sprocket 5/8 x3 / 8 z12 with rack and pinion gearing as jam drive (jam) or as fixed drive (fixed) with press fit. Deep groove ball bearings 6202/6003 also available as ZZ or 2RS. As a fixed drive not suitable for stop - and - go operation.
AT1K5 / 8z12, blurred (Single sprocket 5/8 )
Steel sprocket 5/8 x3 / 8 z12 with spline gearing welded with tube. Deep groove ball bearings 6202/6003 also available as ZZ or 2RS.
Steel sprocket 5/8 x3 / 8 z12 with spline gearing welded with tube. Deep groove ball bearings 6202/6003 also available as ZZ or 2RS.
AT1K5 / 8z13 / 15 S Jam (5/8 single chain sprocket)
Steel sprocket 5/8 x3 / 8 z13 or z15 with rack and pinion gearing as accumulation drive. Deep Groove Ball Bearings 6204/6004 Currently also available as 2RS.
Steel sprocket 5/8 x3 / 8 z13 or z15 with rack and pinion gearing as accumulation drive. Deep Groove Ball Bearings 6204/6004 Currently also available as 2RS.
AT1K5 / 8z13 / 15, blurred (Single sprocket wheel 5/8 )
Steel sprocket 5/8 x3 / 8 13 or z15 with spline gearing welded with tube. Deep groove ball bearings 6204 also available as ZZ or 2RS.
Steel sprocket 5/8 x3 / 8 13 or z15 with spline gearing welded with tube. Deep groove ball bearings 6204 also available as ZZ or 2RS.
AT1K3 / 4z13, blurred (Single sprocket wheel 3/4 )
Steel sprocket 3/4 x7 / 16 z13 with spline gearing welded with tube. Deep groove ball bearings 6402/6005 also available as ZZ or 2RS.
Steel sprocket 3/4 x7 / 16 z13 with spline gearing welded with tube. Deep groove ball bearings 6402/6005 also available as ZZ or 2RS.
AT2K1 / 2z14 K Jam / Fixed (double sprocket 1/2 )
Sprocket 1/2 x5 / 16 z14 made of thermoplastic material as accumulation drive (jam) or as fixed drive (fixed) with press fit , Deep groove ball bearings 6202 also available as ZZ or 2RS. As a fixed drive not suitable for stop-and-go.
Sprocket 1/2 x5 / 16 z14 made of thermoplastic material as accumulation drive (jam) or as fixed drive (fixed) with press fit , Deep groove ball bearings 6202 also available as ZZ or 2RS. As a fixed drive not suitable for stop-and-go.
AT2K1 / 2z14 S Jam / Fixed (double sprocket 1/2 )
Steel sprocket 1/2 x5 / 16 z14 as accumulation drive (jam) or as fixed drive (fixed) with press fit. Deep groove ball bearing 6202 also available as ZZ or 2RS.
As a fixed drive not suitable for stop-and-go.
Steel sprocket 1/2 x5 / 16 z14 as accumulation drive (jam) or as fixed drive (fixed) with press fit. Deep groove ball bearing 6202 also available as ZZ or 2RS.
As a fixed drive not suitable for stop-and-go.
AT2K1 / 2z14 S Jam-E (double sprocket 1/2 )
Steel sprocket 1/2 x5 / 16 z14 as accumulation drive with adjustable driving force. Drive head with deep groove ball bearing 6001 ZZ also available with 6001 2RS (AT1K 1 / 2z14, RS, stowage E) and counter bearing 024 with 6202 ZZ also with 6202 2RS (024RS). Axle on both sides with female thread M8x15. By adjusting the nuts on the fine thread M12x1,25 the friction on the friction disc and thus the driving force is increased. Maximum permissible conveying speed 0.5 m / sec.
Steel sprocket 1/2 x5 / 16 z14 as accumulation drive with adjustable driving force. Drive head with deep groove ball bearing 6001 ZZ also available with 6001 2RS (AT1K 1 / 2z14, RS, stowage E) and counter bearing 024 with 6202 ZZ also with 6202 2RS (024RS). Axle on both sides with female thread M8x15. By adjusting the nuts on the fine thread M12x1,25 the friction on the friction disc and thus the driving force is increased. Maximum permissible conveying speed 0.5 m / sec.
AT2K1 / 2z14 S Stau EK (double sprocket 1/2 )
Steel sprocket 1/2 x5 / 16 z14 as accumulation drive with adjustable driving force. Drive head with deep groove ball bearing 6202 ZZ also available with 6202 2RS (AT2K 1 / 2z14, RS, EK jam) and counter bearing 024 with 6202 ZZ also with 6202 2RS (024RS). Axle on both sides with female thread M8x15. By feeding the nuts on the fine thread M12x1.25, the friction of the sprocket in the slide bushing and thus the driving force is increased. Maximum permissible conveying speed 0.5 m / sec.
Steel sprocket 1/2 x5 / 16 z14 as accumulation drive with adjustable driving force. Drive head with deep groove ball bearing 6202 ZZ also available with 6202 2RS (AT2K 1 / 2z14, RS, EK jam) and counter bearing 024 with 6202 ZZ also with 6202 2RS (024RS). Axle on both sides with female thread M8x15. By feeding the nuts on the fine thread M12x1.25, the friction of the sprocket in the slide bushing and thus the driving force is increased. Maximum permissible conveying speed 0.5 m / sec.
AT2K1 / 2z14, blurred (Double sprocket 1/2 )
Steel sprocket 1/2 x5 / 16 z14 welded with pipe. Deep groove ball bearings 6202/6003 also available as ZZ or 2RS.
Steel sprocket 1/2 x5 / 16 z14 welded with pipe. Deep groove ball bearings 6202/6003 also available as ZZ or 2RS.
AT2K5 / 8z13 / 15 S Jam (Double sprocket 5/8 )
Steel sprocket 5/8 x3 / 8 z13 or z15 as accumulation drive. Deep Groove Ball Bearings 6204/6004 Currently also available as 2RS.
Steel sprocket 5/8 x3 / 8 z13 or z15 as accumulation drive. Deep Groove Ball Bearings 6204/6004 Currently also available as 2RS.
AT2K5 / 8z13 / 15 S, blurred. (Double sprocket 5/8 )
Steel sprocket 5/8 x3 / 8 z13 or z15 welded with pipe. Deep groove ball bearings 6204/6005 also available as ZZ or 2RS.
Steel sprocket 5/8 x3 / 8 z13 or z15 welded with pipe. Deep groove ball bearings 6204/6005 also available as ZZ or 2RS.
AT2K3 / 4z13, blurred (Double sprocket 3/4 )
Steel sprocket 3/4 x7 / 16 z13 welded with pipe. Deep groove ball bearings 6204/6005 also available as ZZ or 2RS.
Steel sprocket 3/4 x7 / 16 z13 welded with pipe. Deep groove ball bearings 6204/6005 also available as ZZ or 2RS.
Powered roller with double sprocket made of thermoplastic material (KT2K 1 / 2z14, K, fixed) or steel (KT2K 3 / 8z12, S, fixed / KT2K 1 / 2z14, S, fixed) with pushed-on cone elements.
Overview of all types of bearings
ST-001 / ST-001N
Thermoplastic bearing roller bearing with ball row. The balls are available in steel (ST-001) or stainless steel No. 1.4034 (ST-001N).
Maximum load capacity per roll: 14 kg
Thermoplastic bearing roller bearing with ball row. The balls are available in steel (ST-001) or stainless steel No. 1.4034 (ST-001N).
Maximum load capacity per roll: 14 kg
ST-009 / ST-009N
Thermoplastic Support Roller Bearings with Two Ball Rows. The balls are available in steel (ST-009) or Niro W-No 1.4034 (ST-009N).
Maximum load capacity per roll: 24 kg
Thermoplastic Support Roller Bearings with Two Ball Rows. The balls are available in steel (ST-009) or Niro W-No 1.4034 (ST-009N).
Maximum load capacity per roll: 24 kg
ST-013
Roller bearing made of galvanized sheet steel with conical ball bearing. Maximum storage capacity per roll: 160 kg
Roller bearing made of galvanized sheet steel with conical ball bearing. Maximum storage capacity per roll: 160 kg
ST-017
Zinc plated steel bearing roller bearing with cone ball bearing. Maximum load capacity per roll: 240 kg
Zinc plated steel bearing roller bearing with cone ball bearing. Maximum load capacity per roll: 240 kg
ST-025
Thermoplastic Support Roller Bearings with Deep Groove Ball Bearing 6202 (ST-025) and Labyrinth Seal. The ball bearing is also available as 2RS (ST-025RS), INOX (ST-025RSN) or Delrin (ST-025D).
Maximum load capacity per roll: 160 kg
Thermoplastic Support Roller Bearings with Deep Groove Ball Bearing 6202 (ST-025) and Labyrinth Seal. The ball bearing is also available as 2RS (ST-025RS), INOX (ST-025RSN) or Delrin (ST-025D).
Maximum load capacity per roll: 160 kg
ST-029
Galvanized Steel Carrier Roller Bearings with Deep Groove Ball Bearing 6202/6003 (ST-029). The ball bearing is also available as ZZ (ST-029Z) or 2RS (ST-029RS).
Maximum load capacity per roll: 240 kg
Galvanized Steel Carrier Roller Bearings with Deep Groove Ball Bearing 6202/6003 (ST-029). The ball bearing is also available as ZZ (ST-029Z) or 2RS (ST-029RS).
Maximum load capacity per roll: 240 kg
ST-033
Roller bearing made of bright or galvanized sheet steel with deep groove ball bearing 6204/6004 for axis 20 or 6205/6005 for axis 25. The ball bearing is also available as ZZ (ST-033Z) or 2RS (ST -033RS).
Maximum load capacity per roll: 560 kg
Roller bearing made of bright or galvanized sheet steel with deep groove ball bearing 6204/6004 for axis 20 or 6205/6005 for axis 25. The ball bearing is also available as ZZ (ST-033Z) or 2RS (ST -033RS).
Maximum load capacity per roll: 560 kg
ST-037
Thermoplastic Support Roller Bearings with Deep Groove Ball Bearing 6204 (ST-037). The ball bearing is also available as ZZ (ST-037Z) or 2RS (ST-037RS).
Maximum load capacity per roll: 360 kg
Thermoplastic Support Roller Bearings with Deep Groove Ball Bearing 6204 (ST-037). The ball bearing is also available as ZZ (ST-037Z) or 2RS (ST-037RS).
Maximum load capacity per roll: 360 kg
ST-045
Tragrollenlager aus blankem Stahlblech in Rohr geschweisst mit Rillenkugellager 6204 bei Achse 20 oder 6305 bei Achse 25. Das Kugellager ist auch als 2RS (ST-045RS) erhältlich.
Maximale Lagertragfähigkeit pro Rolle: 560 kg
Tragrollenlager aus blankem Stahlblech in Rohr geschweisst mit Rillenkugellager 6204 bei Achse 20 oder 6305 bei Achse 25. Das Kugellager ist auch als 2RS (ST-045RS) erhältlich.
Maximale Lagertragfähigkeit pro Rolle: 560 kg
The following axle materials are available:
- bright steel (A)
- galvanized steel (AV)
- stainless steel (AN)
- galvanized steel (AV)
- stainless steel (AN)
Overview of all available axis versions
Overview of conical elements

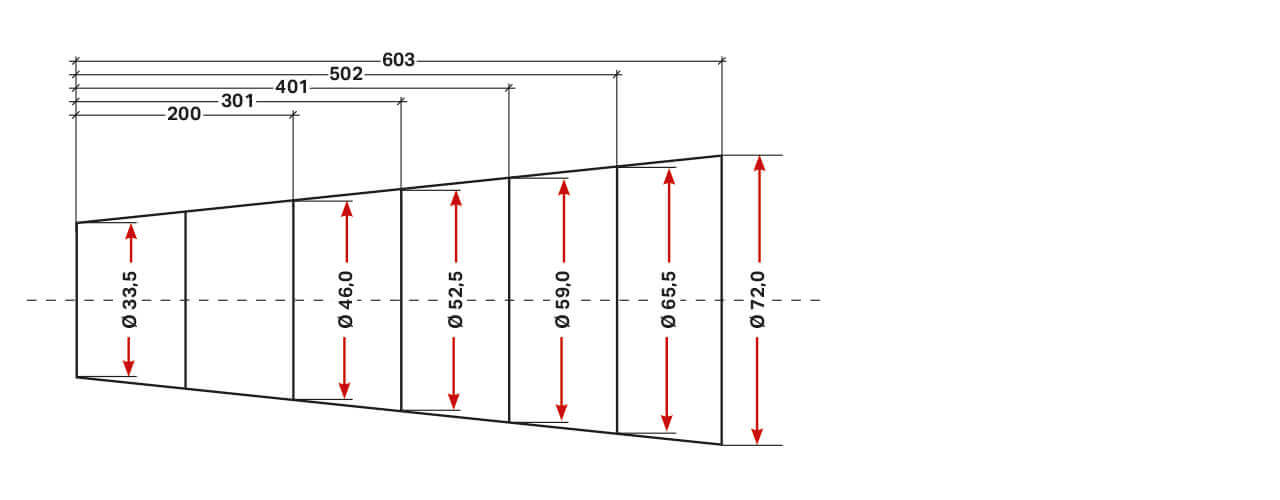

Conical elements for inner radius 500 mm and pipe diameter 30

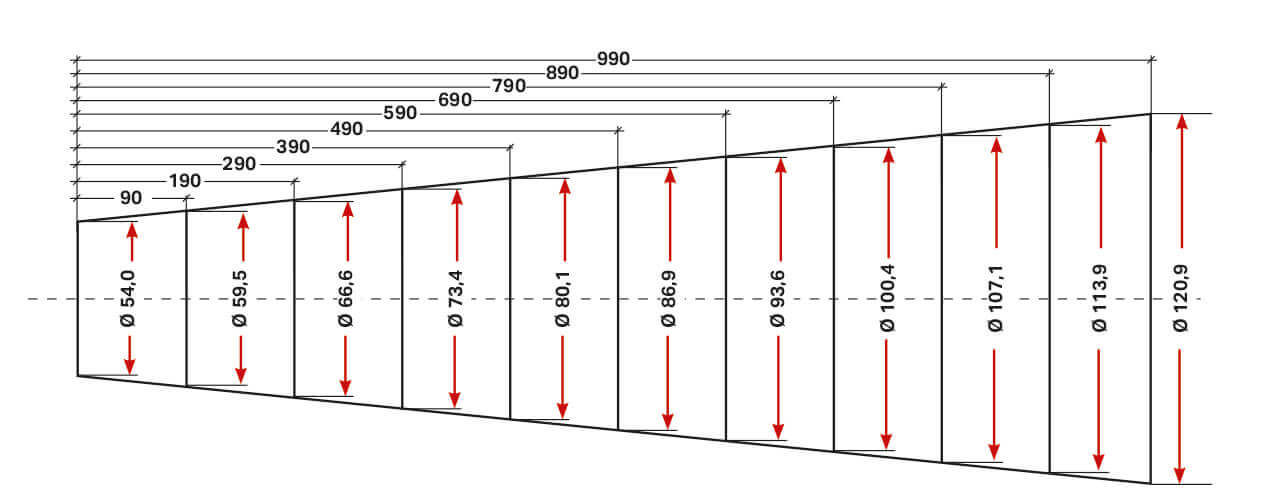

Conical elements for inner radius 800 mm and pipe diameter 50

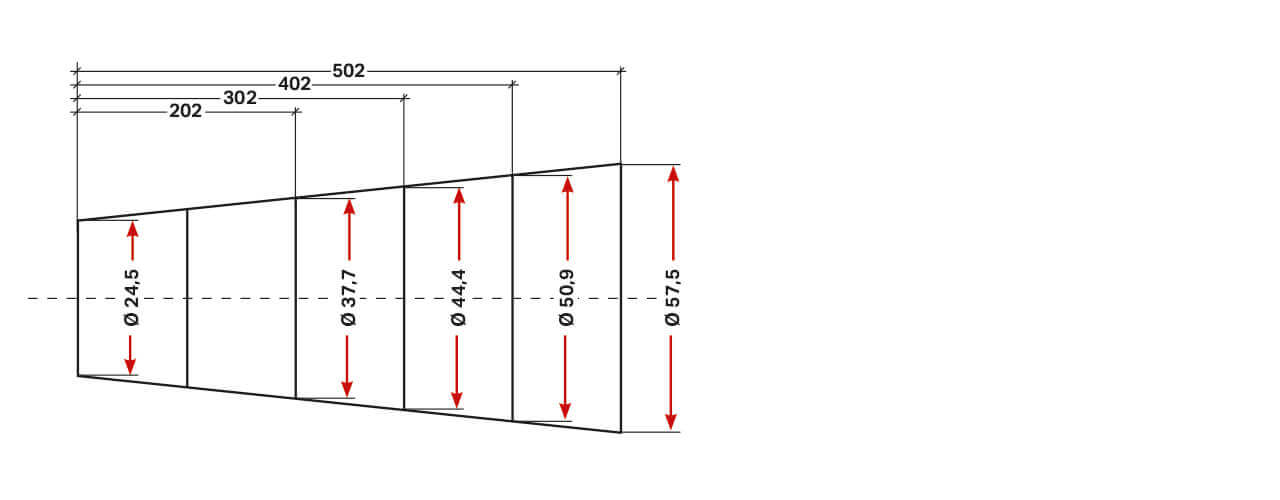

Conical elements for inner radius 373 mm and pipe diameter 20
