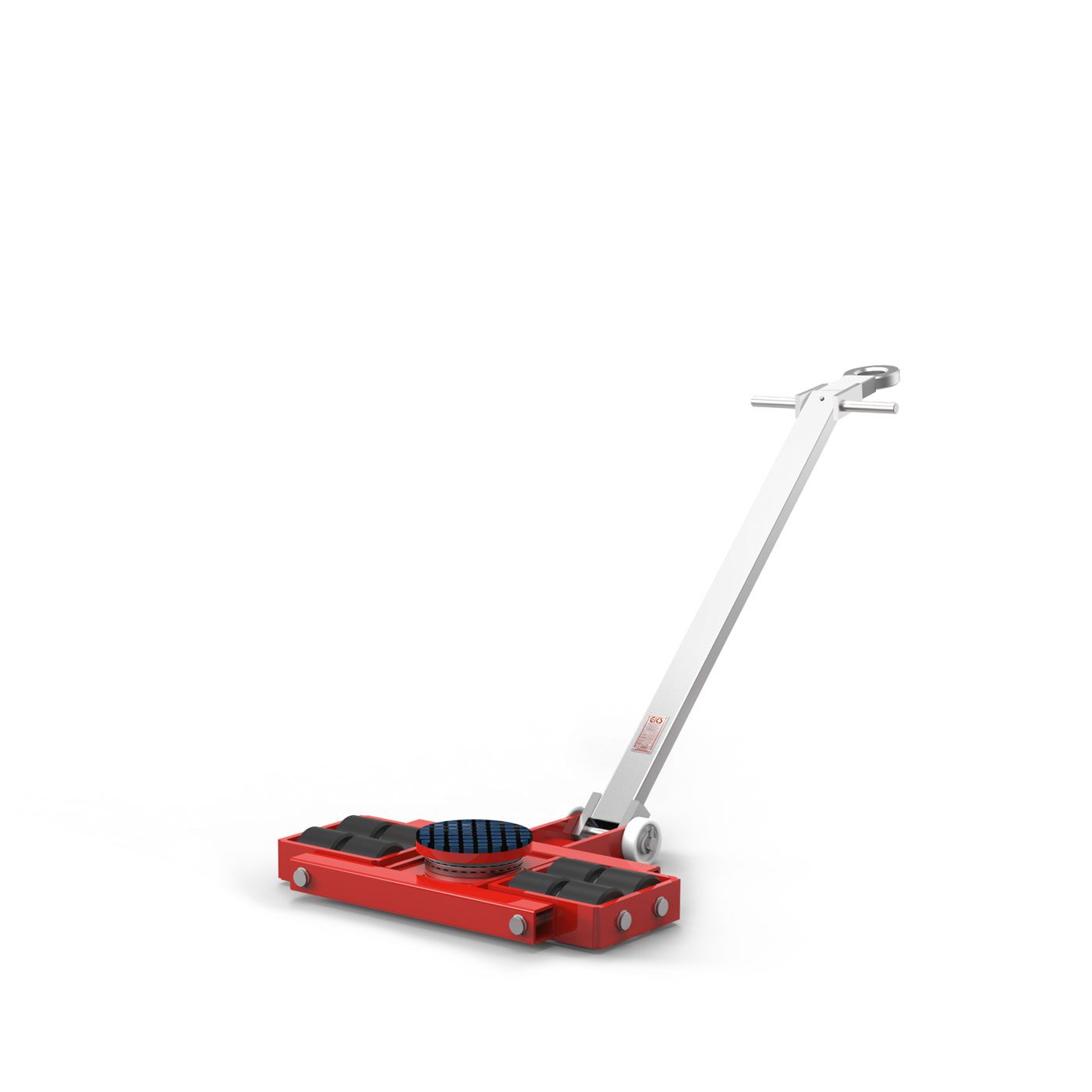

Transport trolleys L6

In stock

Item number
2110

Model
L6
UNSPSC
24101612

Load-bearing capacity (kg)
6000

Einbauhöhe / Lastrollen mm / Stk.
110 / 8
Turntable
± 90°

Steering rod (mm)
1080

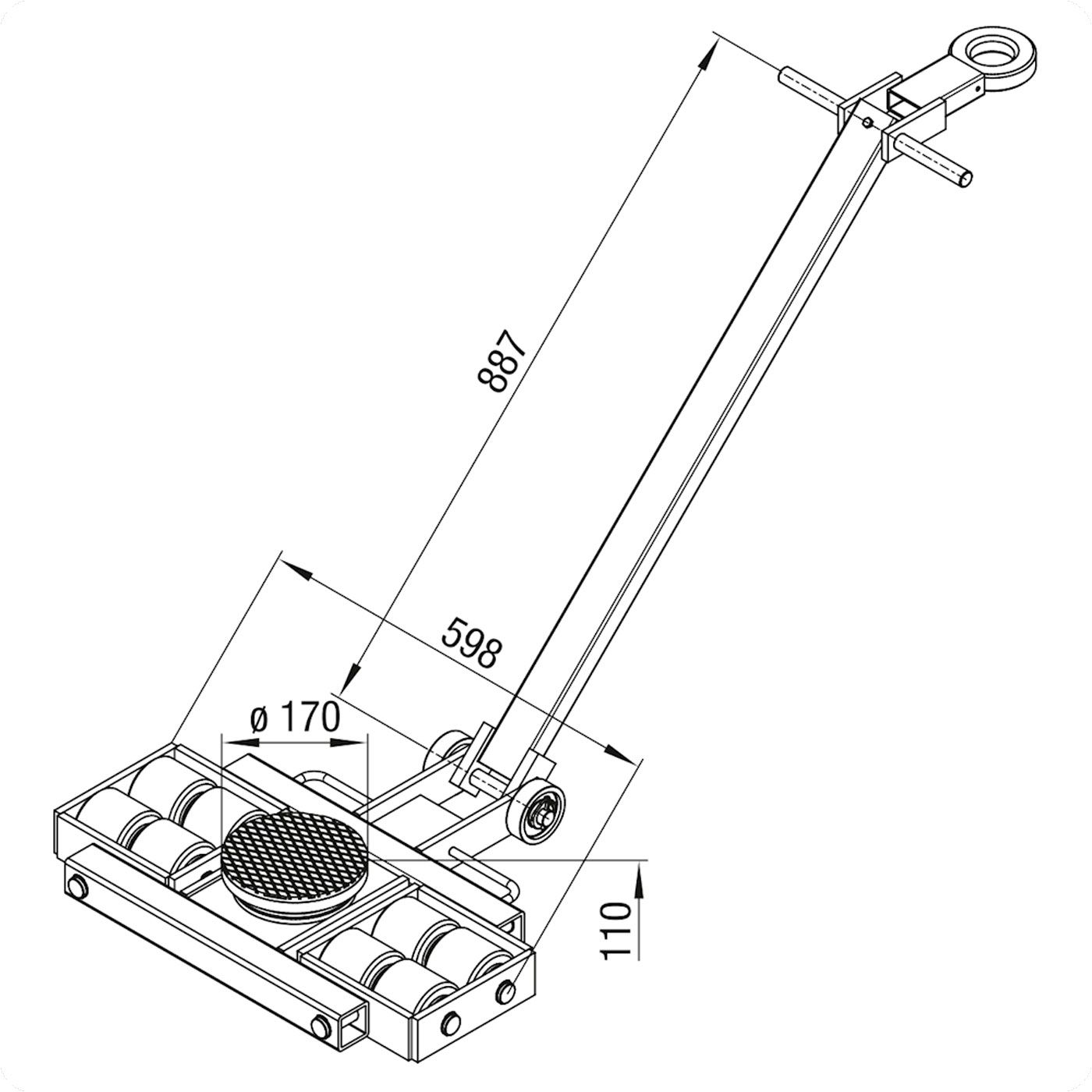

Overall dimensions (mm)
610 x 520

Weight (kg)
41
Grouped product items
Product Name Qty


We deliver stock items within
24 hours free of charge*!


*Within Austria from € 250,-

Product features GKS®-PERFEKT transport chassis L 6

  • Sturdy construction
  • Very low installation height: 110 mm
  • All trolleys with the same installation height can be combined with one another
  • Rollers tested over many years with long durability
  • Handlebars with towing eyes made of particularly robust materials
  • Load capacity in kN / t: 60 / 6
    Total load capacity in kN / t: 120 / 12 (transport trolleys F6 + L6)

The GKS®-PERFEKT transport trolleys up to 120 tons have been tried and tested worldwide for many decades.

The set, consisting of the steerable chassis L and the fixed chassis F, offers a perfect solution for safe transport thanks to the 3-point support.

With the TL tandem trolleys, long or bulky loads can be moved just as safely. Various roller coverings offer a wide range of uses: from sensitive floors to use on dirty surfaces.

GKS®-PERFEKT standard transport trolleys F / L 3 to F / L 18 for heavy loads from 6 to 36 t - very low installation height: 110 mm. All trolleys from F / L 3 to F / L 18 can be combined with each other; Can be combined with the TL 6 / TL 12 tandem trolleys or RL 2 / RL 4 / RL 6 rotating trolleys.

Need additional information?

Our staff will be happy to advise you if you have any questions about the product and together we will find the ideal transport chassis for your area of application.
