Transport trolleys L 20

In stock

Item number
2116

Model
L20
UNSPSC
24101612

Load-bearing capacity (kg)
20000

Einbauhöhe / Lastrollen mm / Stk.
180 / 8
Turntable
± 90°

Steering rod (mm)
1620

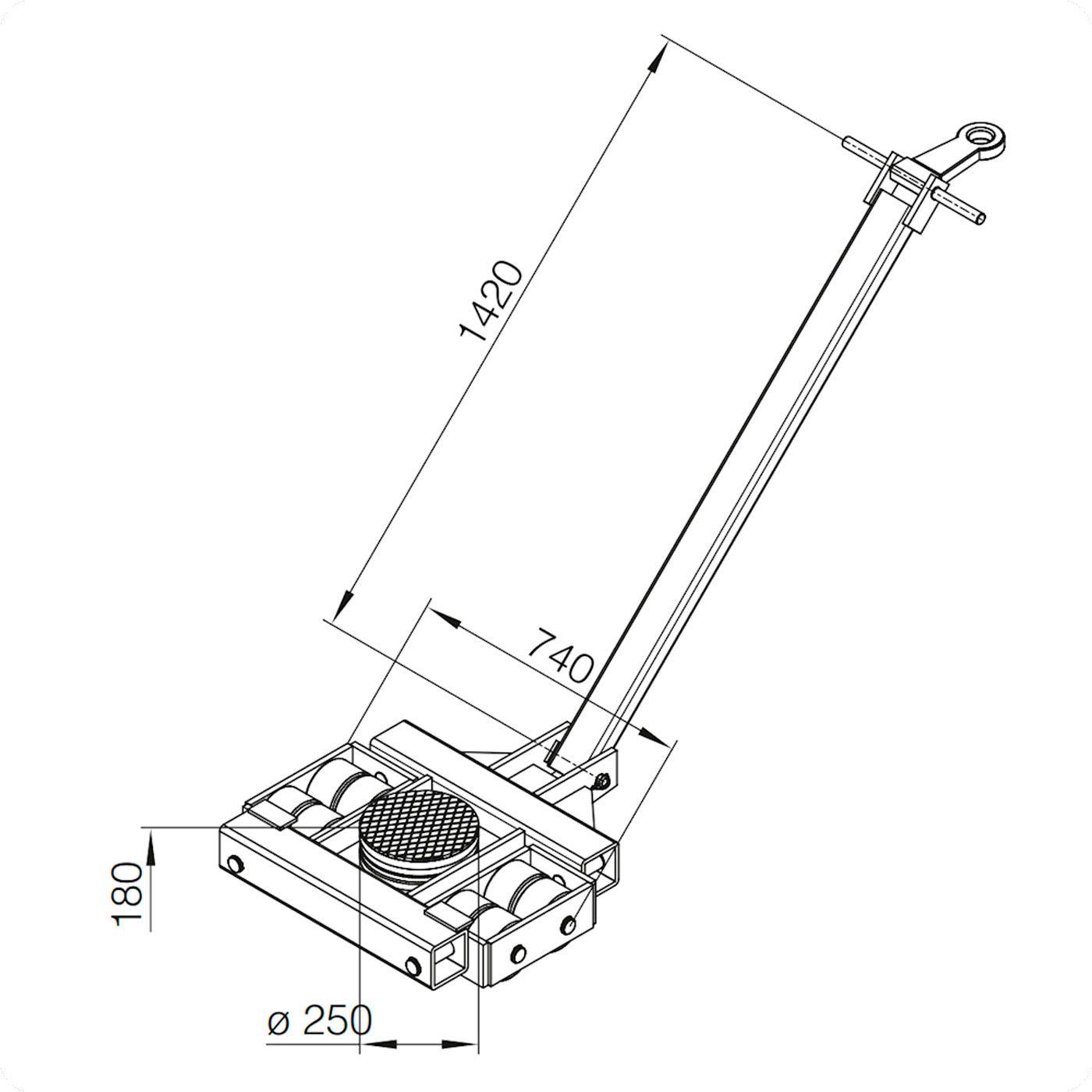

Overall dimensions (mm)
747 x 800

Weight (kg)
170
Grouped product items
Product Name Qty


We deliver stock items within
24 hours free of charge*!


*Within Austria from € 250,-

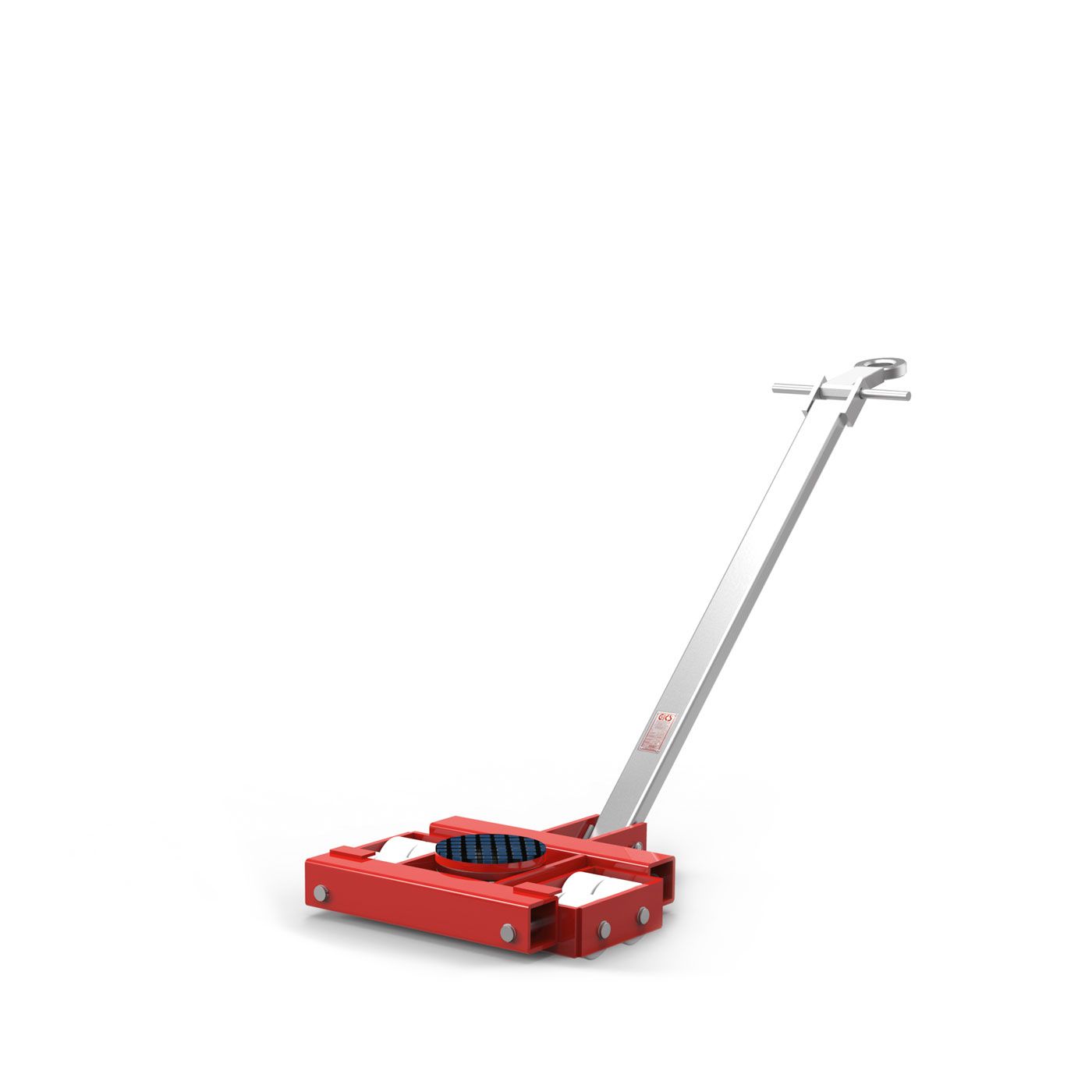

Product features GKS®-PERFEKT transport chassis L 20

  • Heavy-duty transport trolleys F / L20 to F / L60 for loads from 40 to 120 tons
  • Installation height: 180 mm
  • All chassis from F / L20 to F / L60 can be combined with each other
  • Lifting capacity in kN / t: 200 / 20
    Total capacity in kN / t:  400 / 40 (transport chassis F20 + L20)

The GKS®-PERFEKT transport trolleys up to 120 tons have been tried and tested worldwide for many decades.

The set, consisting of the steerable chassis L and the fixed chassis F, offers a perfect solution for safe transport thanks to the 3-point support.

With the tandem trolleys TL, long or bulky loads can be moved just as safely. Various roller coverings offer a wide range of uses: from sensitive floors to use on dirty surfaces.

GKS®-PERFEKT Standard transport trolleys F / L 3 to F / L 18 for heavy loads from 6 to 36 t - very low installation height: 110 mm. All trolleys from F / L 3 to F / L 18 can be combined with each other; Can be combined with the TL 6 / TL 12 tandem trolleys or RL 2 / RL 4 / RL 6 rotating trolleys.

Need additional information?

Our employees will be happy to advise you if you have any questions about the product and together we will find the ideal transport chassis for your area of application.
Call us: +43 463 341140   or use our Gesa webshop chat.

Gesa – your partner for transport technology in Austria.
