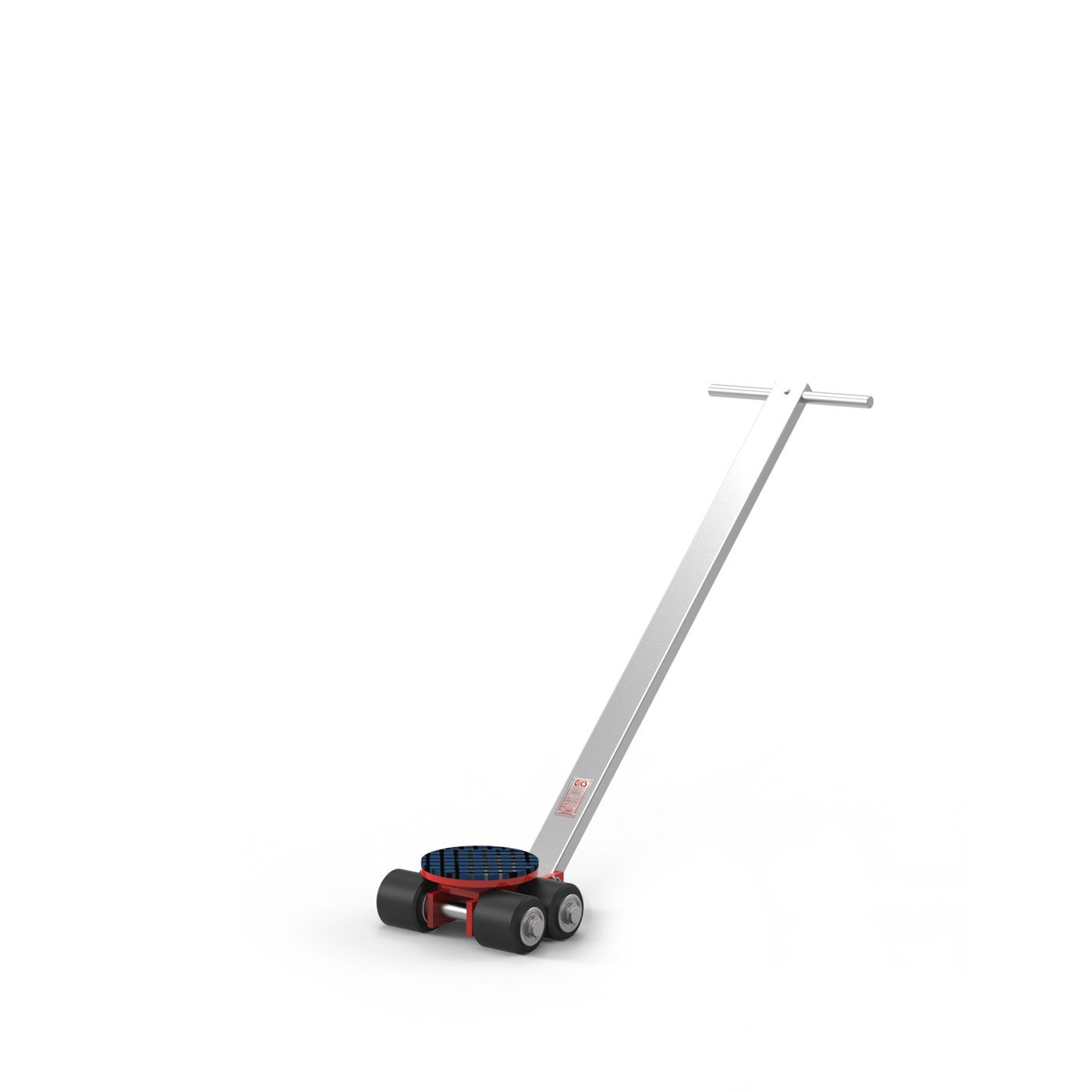

Transport trolleys L 3

Product features GKS®-PERFEKT transport chassis L3:

• Sturdy construction

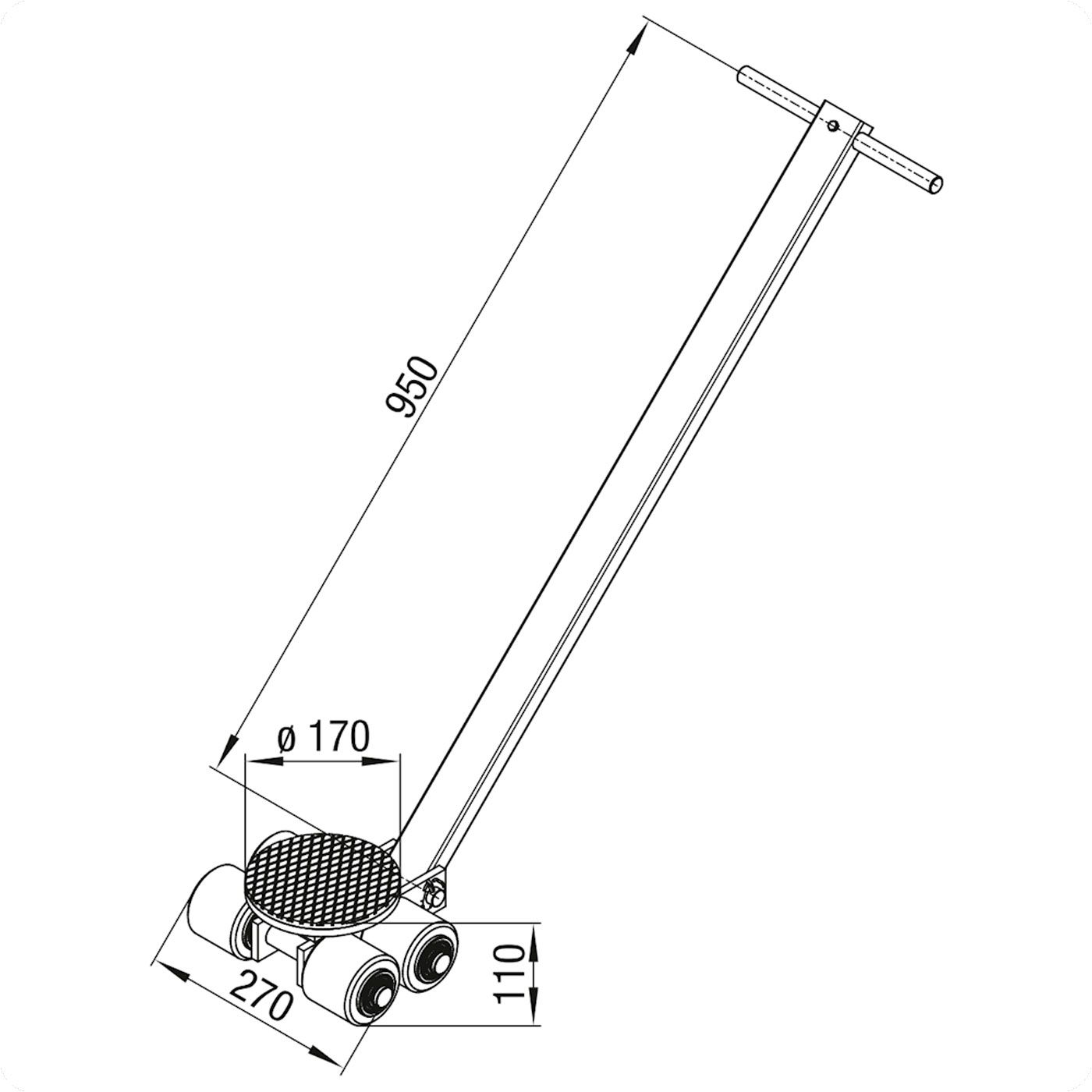

• Very low installation height: 110 mm
• All trolleys with the same installation height can be combined with one another
• Rollers tested over many years with a long service life
• Handlebars with towing eyes made of particularly robust materials
• Lifting capacity in kN / t: 30 / 3
  Total capacity in kN / t: 60 / 6 (transport chassis F3 + L3)

The GKS®-PERFEKT transport trolleys up to 120 tons have been tried and tested worldwide for many decades.

The set, consisting of the steerable chassis L and the fixed chassis F, offers a perfect solution for safe transport thanks to the 3-point support.

With the tandem trolleys TL, long or bulky loads can be moved just as safely. Various roller coverings offer a wide range of uses: from sensitive floors to use on dirty surfaces.

GKS®-PERFEKT Standard transport trolleys F / L 3 to F / L 18 for heavy loads from 6 to 36 t - very low installation height: 110 mm. All trolleys from F / L 3 to F / L 18 can be combined with each other; Can be combined with the TL 6 / TL 12 tandem trolleys or RL 2 / RL 4 / RL 6 rotating trolleys.
