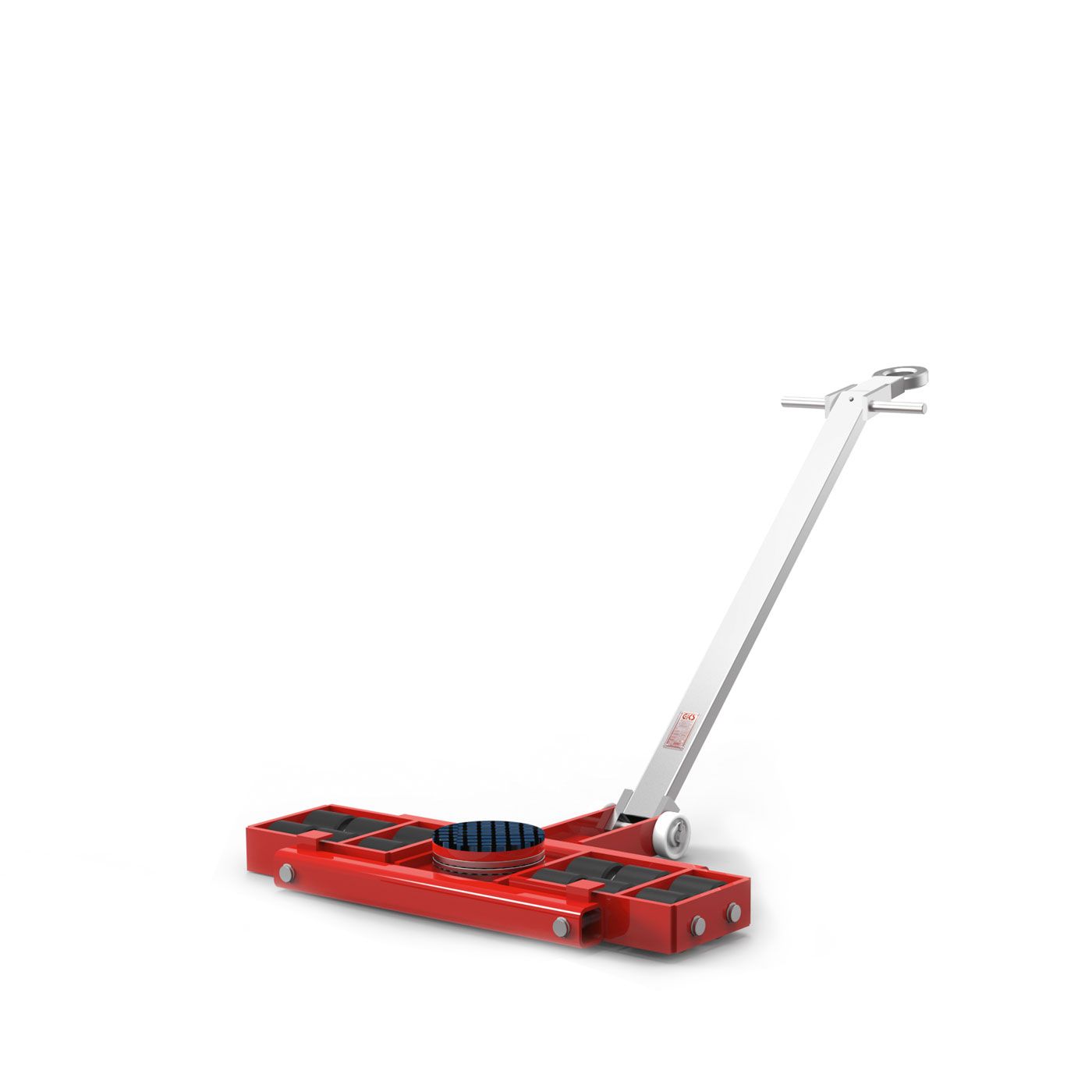

Transport trolleys L 9

Product features GKS®-PERFEKT transport chassis L 9

• Can be combined with the tandem trolleys TL6 / TL12 or rotary trolleys RL2 / 4 / 6

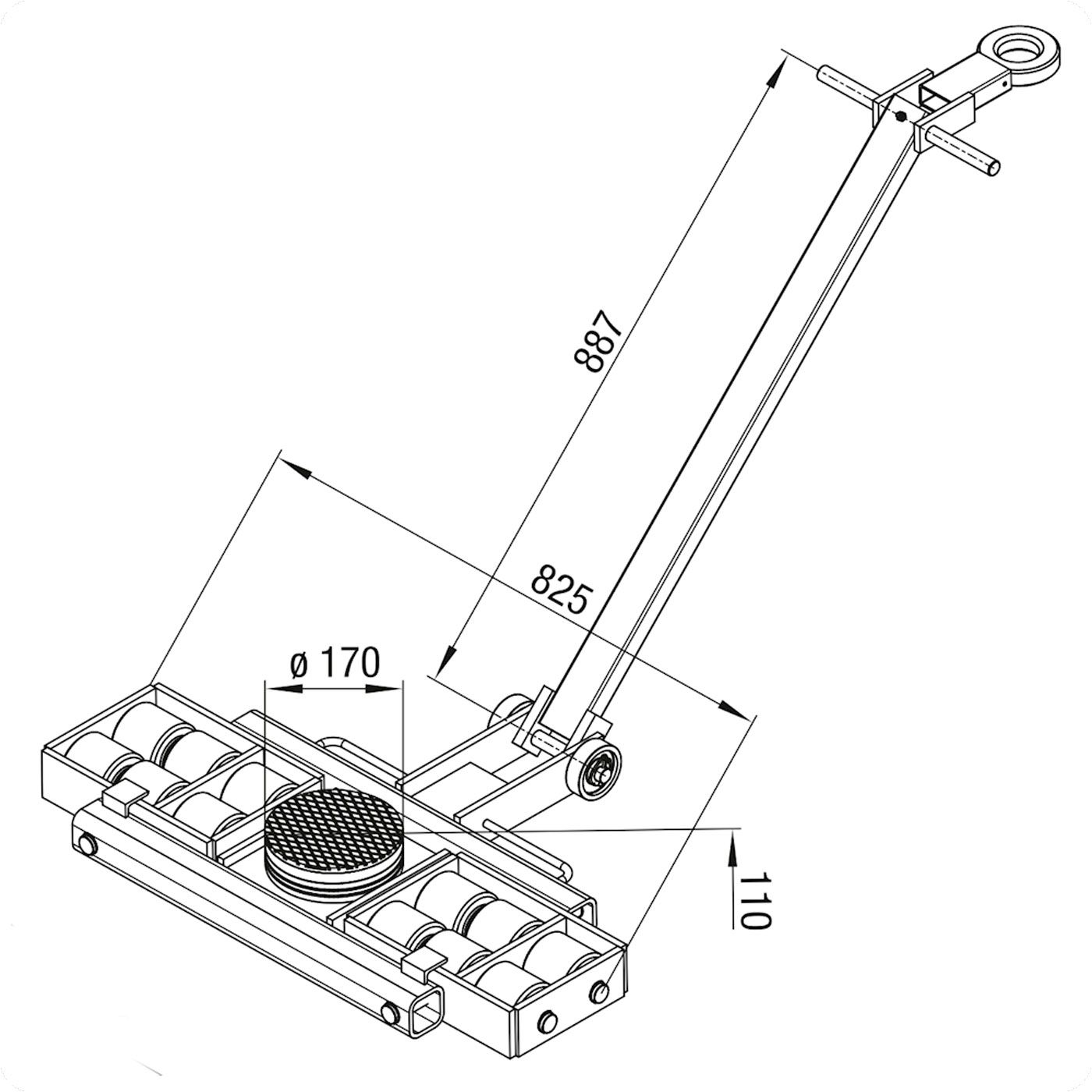

• Very low installation height: 110 mm
• Load capacity in kN / t: 90 / 9
  Total load capacity in kN / t:  180 / 18 (transport trolleys F9 + L9)

The GKS®-PERFEKT transport trolleys up to 120 tons have been tried and tested worldwide for many decades.

The set, consisting of the steerable chassis L and the fixed chassis F, offers a perfect solution for safe transport thanks to the 3-point support.

With the tandem trolleys TL, long or bulky loads can be moved just as safely. Various roller coverings offer a wide range of uses: from sensitive floors to use on dirty surfaces.

GKS®-PERFEKT Standard transport trolleys F / L 3 to F / L 18 for heavy loads from 6 to 36 t - very low installation height: 110 mm. All trolleys from F / L 3 to F / L 18 can be combined with each other; Can be combined with the TL 6 / TL 12 tandem trolleys or RL 2 / RL 4 / RL 6 rotating trolleys.

Need additional information?

Our employees will be happy to advise you if you have any questions about the product and together we will find the ideal transport chassis for your area of application.
Call us: +43 463 341140   or use our Gesa webshop chat.

Gesa – your partner for transport technology in Austria.
