Heat resistant wheels and castors
Heat-resistant wheels offer all the requirements for use in high temperature fluctuations.
They can be used at temperatures far into the minus range (max. -70°C) as well as at very high temperatures (max. +400°C). Our heat-resistant wheels are therefore ideal for use in the food industry, medical technology or in various industrial sectors.
80-200 mm35-50 mm200-340 kg108-232 mm
Temperature-resistant wheels, swivel and fixed castors
The demands on wheels and castors are just as different as their areas of application. Accordingly, Gesa Transporttechnik also offers a variety of different wheels and castors for special applications.
Temperature-resistant wheels and castors from Gesa are heat-resistant at temperatures up to max. +400°C and can also be used down to max. -70°C without hesitation.
You can find our heat-resistant wheels as well as the entire wheels and castors catalog here:
 Heat resistant wheels |
 Wheels and Castors |
Series product overview:
Series KNGF -30°C to +150°C Polyamide 6
Wheels in the KNGF series are one-piece injection-moulded plastic wheels made from high-quality glass-fibre reinforced polyamide 6, heat-resistant up to +150 °C. The wheels have a very high chemical resistance to many aggressive media. 100% suitable for all sectors of the food industry, 100% recyclable. Recommended for use in wet and hot conditions, suitable for steam tunnels and salt water.
KNGF RI series -30°C to +150°C polyamide 6 / KNGF LI/BI series -30°C to +150°C polyamide 6
Castors from the KNGF RI series have a stainless sheet steel housing made from 1.4301 (AISI 304) with bolt hole attachment, KNGF LI/BI series castors strong>are equipped with a plate attachment. Fork head with double ball race and a slewing ring clearance adapted to high-temperature use. Grease-free slewing ring for the highest standards of cleanliness and temperature resistance, RoHS-compliant.
KPMTW series -40°C to +300°C ditherm
Wheels of the KPMTW series are DITHERM wheels injection molded in one piece from high-quality compounds and special fibres, heat-resistant up to +300 °C. High chemical resistance to many aggressive media. They meet all recommended flammability, smoke and toxicity standards. 100% suitable for the food industry and for any oven application that requires a continuous temperature up to +280°C - with peaks of +300°C. Also for the cooling area down to -40 °C. DITHERM wheels have excellent resistance to temperature differences.
KPMTW RI series -40°C to +300°C ditherm / KPMTW LI/BI series -40°C to +300°C ditherm
Rollers from the KPMTW RI serieshave a stainless sheet steel housing made from the material 1.4301 (AISI 304) with bolt hole attachment, castors from the KPMTW LI/BI series >are equipped with a plate attachment. Fork head with double ball race and a slewing ring clearance adapted to high-temperature use. Grease-free slewing ring for the highest standards of cleanliness and temperature resistance, RoHS-compliant.
KPSTW series -70°C to +280°C ditherm
Wheels of the KPSTW series are made of a special THT composite material, temperature resistant from -70 to +280 °C, resistant to breakage and chipping. They are highly resistant to chemicals, oils and harsh cleaning agents. Minimum rolling resistance due to the characteristics of the material, which ensures silent running even with the plain bearing design. Not chalking.
KPSTW RI series -70°C to +280°C ditherm / KPSTW LI/BI series -70°C to +280°C ditherm
Reels of the KPSTW RI series have a stainless sheet steel housing made of the material 1.4301 (AISI 304) with bolt hole attachment, castors of the KPSTW LI/BI series are equipped with a plate attachment. Fork head with double ball race and a slewing ring clearance adapted to high-temperature use. Grease-free slewing ring for the highest standards of cleanliness and temperature resistance, RoHS-compliant.

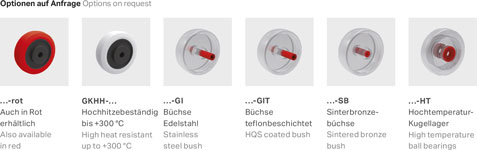

GKH series -40°C to +260°C rubber 72° Shore A
Wheels of the GKH series consist of a DITHERM rim on which a special, heat-resistant 72° Shore A rubber tread is vulcanized. For extremely high temperatures up to +260 °C. Thanks to the special manufacturing process, the wheels are of the highest quality, durable and versatile.
GKH RI/LI/BI series -40°C to +260°C rubber 72° Shore A
Reel Series GKH RI/LI/BI have a stainless sheet steel housing made of material 1.4301 (AISI 304) with bolt hole attachment or plate attachment. RoHS compliant. Fork head with double ball race and a slewing ring clearance adapted to high-temperature use. Slewing ring without grease for the highest demands on cleanliness and temperature resistance.
KPXTW series -50°C to +400°C ditherm
Wheels in the KPXTW series are reinforced, heat-resistant Wheels made of high-quality material compounds. For extremely high temperatures up to +400 °C. Thanks to the special manufacturing process, the wheels are of the highest quality, durable and versatile.
KPXTW RI series -50°C to +400°C ditherm / KPXTW LI/BI series -50°C to +400°C ditherm
Reel series KPXTW RI have a stainless sheet steel housing made of material 1.4301 (AISI 304) with bolt hole attachment, reels series KPXTW LI/BI are equipped with a plate attachment. Fork head with double ball race and a slewing ring clearance adapted to high-temperature use. Grease-free slewing ring for the highest standards of cleanliness and temperature resistance, RoHS-compliant.
Shopping Options:
You can easily configure both wheels and swivel and fixed castors with/without brakes using the purchasing options.
We would be happy to advise you on choosing the right castor . Call us: +43 463 341140
Gesa. Your partner for wheels and castors.
