HTF-GF20 - flat shaped highlifter

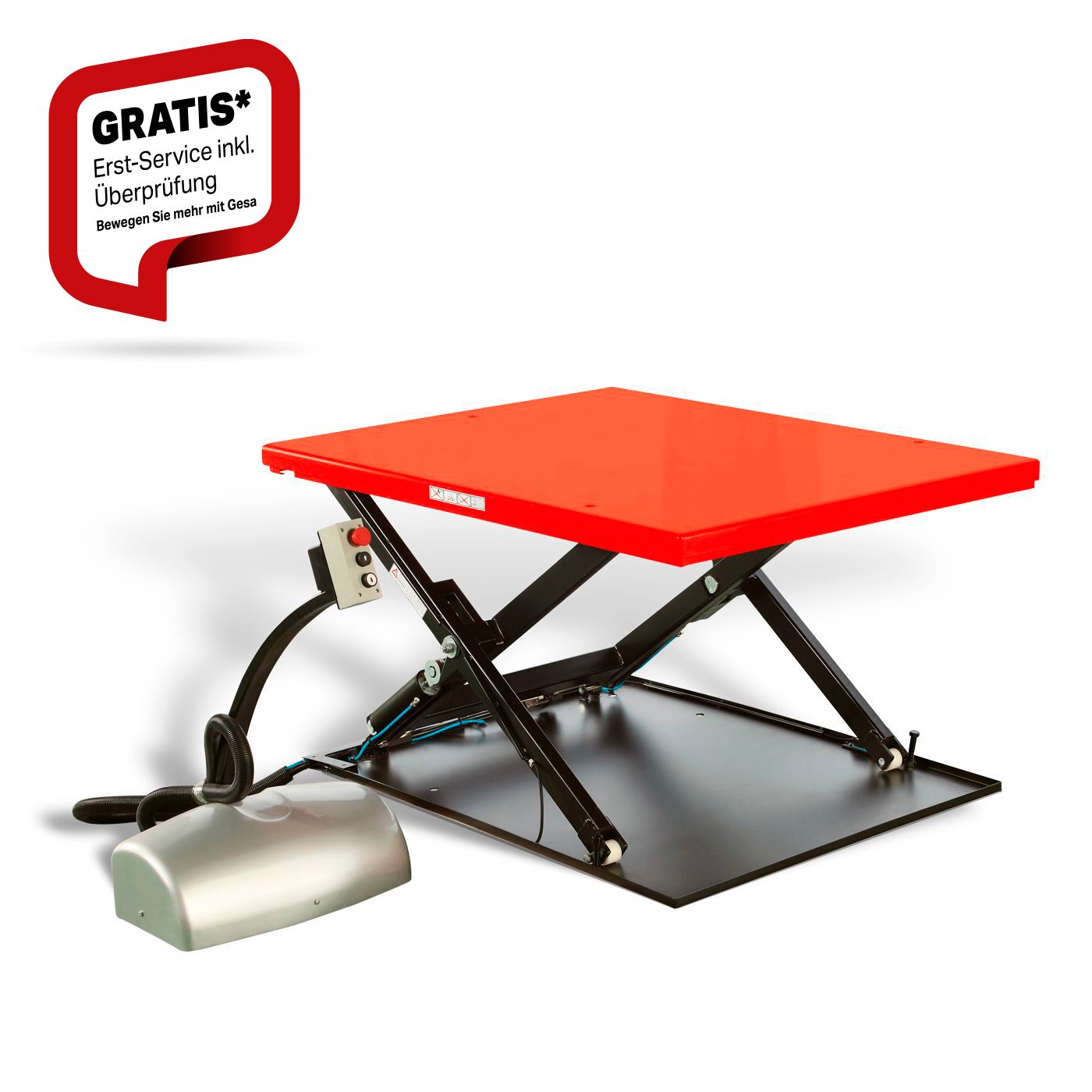

Flat lift table HTF-G20

Our HTF-G20 flat lifting table with closed platform is a robust and versatile lifting device. With it, heavy loads can be lifted to an ergonomic working height, lifting is stepless and lowering is also effortless and gentle. The max. load capacity of this lifting table is max. 2000 kg.
The separate control unit, with lifting and lowering buttons, an emergency stop switch and a key switch, can be placed flexibly .
The so-called foot protection bar stops lowering immediately to prevent possible crushing.< /p>

Advantage of the HTF-G20:

The flat lifting table can be lowered to 85 mm and lifted using a ramp using pallet truck can be conveniently loaded or unloaded. Structural changes during operation, such as loading ramps or pits, are no longer necessary with flat lifting tables.

Product features:

• Load capacity up to 2000 kg* and more
• Table tops 1560 mm x 1140 mm.
• comply with EN 1570-1 and have the CE mark
• 24 V DC controls and controls with dead man's switch
• IP54 electrical system
• anti-pinch distance between all moving parts
• Overload protection
• Adjustable, highly sensitive protective contact strip on all four platform sides
• The table has electrical safety valves and mechanical supports for service and maintenance work
• maintenance-free bearings
• optional PLC control for easy adaptation to your special and individual requirements
• Operating instructions in several languages

Gesa Transporttechnik offers you:

• Competent advice on the products
• Planning and assembly of the lifting tables at your site
• The lifting platforms are extremely space-saving - thanks to their compact design
• Low maintenance
• Ease of use of the lifts
• short service intervals
• Services are carried out by our Gesa service team
• Low repair costs thanks to robust design
• 24h service hotline should a fault occur.
• individual guarantee solutions: contact us - our standard guarantee period of 12 months can be extended at will

Ramp included in delivery
