Tiger® scissors type lifting table, load capacity up to 4000kg

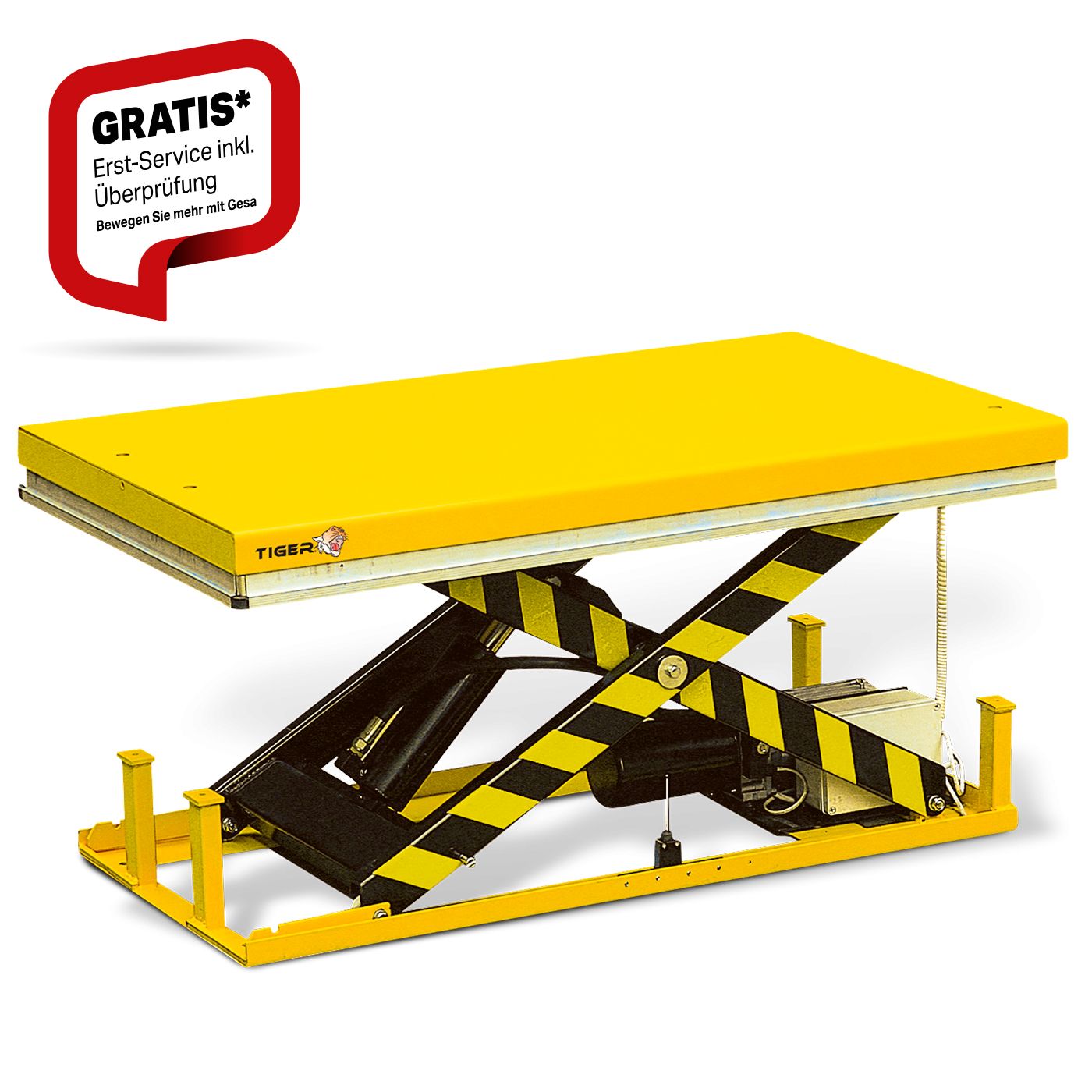

TIGER® scissor lift tables - heavy-duty version with closed platform

Our stationary scissor lift table TIGER® is a high-quality, robust and versatile lifting device. For daily use, the stationary lifting table can be mounted on the floor or embedded in the floor. The height can be adjusted hydraulically and steplessly. Raising is stepless and lowering is also effortless and gentle.

The TIGER® scissor lift table with single scissors is available in different versions. It makes ergonomic work even more convenient and productive.

Product details:

• Load capacity from 1000 to 4000 kg
• Base frame in angle iron construction, upper frame in folded construction; q platform made of smooth sheet metal
• Particularly strong scissor arms made of profile steel, extremely strong, hard chrome-plated hydraulic cylinder with pressure relief valve, contact protection strip on all sides, inspection supports
• Electro-hydraulic unit 400 V/50 Hz, internal control voltage 24 V
• Control elements on 3 m long control cable with switch for up/down and emergency stop button
• The lifting table complies with safety standards EN 1570
• Free installation or pit installation possible

Product features:

• high quality, robust and durable construction
• hydraulically driven mechanics
• high quality hydraulic cylinder
• low-maintenance plain bearings, solid rollers with plain bearings
• electronic control

Gesa Transporttechnik offers you:

• Competent advice on the products
• Planning and assembly of the lifting tables at your site
• The lifting platforms are extremely space-saving - thanks to their compact design
• Low maintenance
• Ease of use of the lifts
• short service intervals
• Services are carried out by our Gesa service team
• Low repair costs thanks to robust design
• 24h service hotline should a fault occur.
• individual guarantee solutions: contact us - our standard guarantee period of 12 months can be extended at will

Shipping and delivery are of course free of charge!

Easy loading and unloading with the TIGER® lifting tables:

They are often used in materials and merchandise management as a lifting aid, as part of a conveyor line in production or in various service companies.

Flexible workspace:

Repairs or crafts involving heavy materials are carried out safely on the lift table platform. Our lifting tables are very popular as a durable, safe and robust work surface. They are an essential part of any company equipment. The lifting function is used to set the ideal working height - ergonomic working is possible at the "push of a button".
