Tiger® Plus - lifting up to 2840mm

In stock

Item number
38286

Model
ECL 1029
UNSPSC
24101606

Load-bearing capacity (kg)
1500

Lifting heights min./max. (mm)
85 / 2900

Free lift (mm)
78

Construction height when retracted (mm)
1930

Construction height when extended (mm)
3305

Fork length (mm)
1150

Fork width (mm)
570

Load center (mm)
600

Fork load-carrying width (mm)
180

Total length x width (mm)
1806 x 820

Drive wheel (mm)
210 x 70

Fork rollers Ø x width (mm)
80 x 70

Support castor Ø x width (mm)
124 x 60
Wenderadius
Turning radius (mm)
1485

Lifting motor (kW)
2,2

Traction motor power (kW)
0,75 kW

Traveling speed loaded/unloaded (km/h)
4,4 / 4,7
Lifting speed with/without load
0,105 / 0,17

Battery (V/Ah)
4x12/60

Weight (kg)
510 (ohne Batterie)
Grouped product items
Product Name Qty


We deliver stock items within
24 hours free of charge*!


*Within Austria from € 250,-

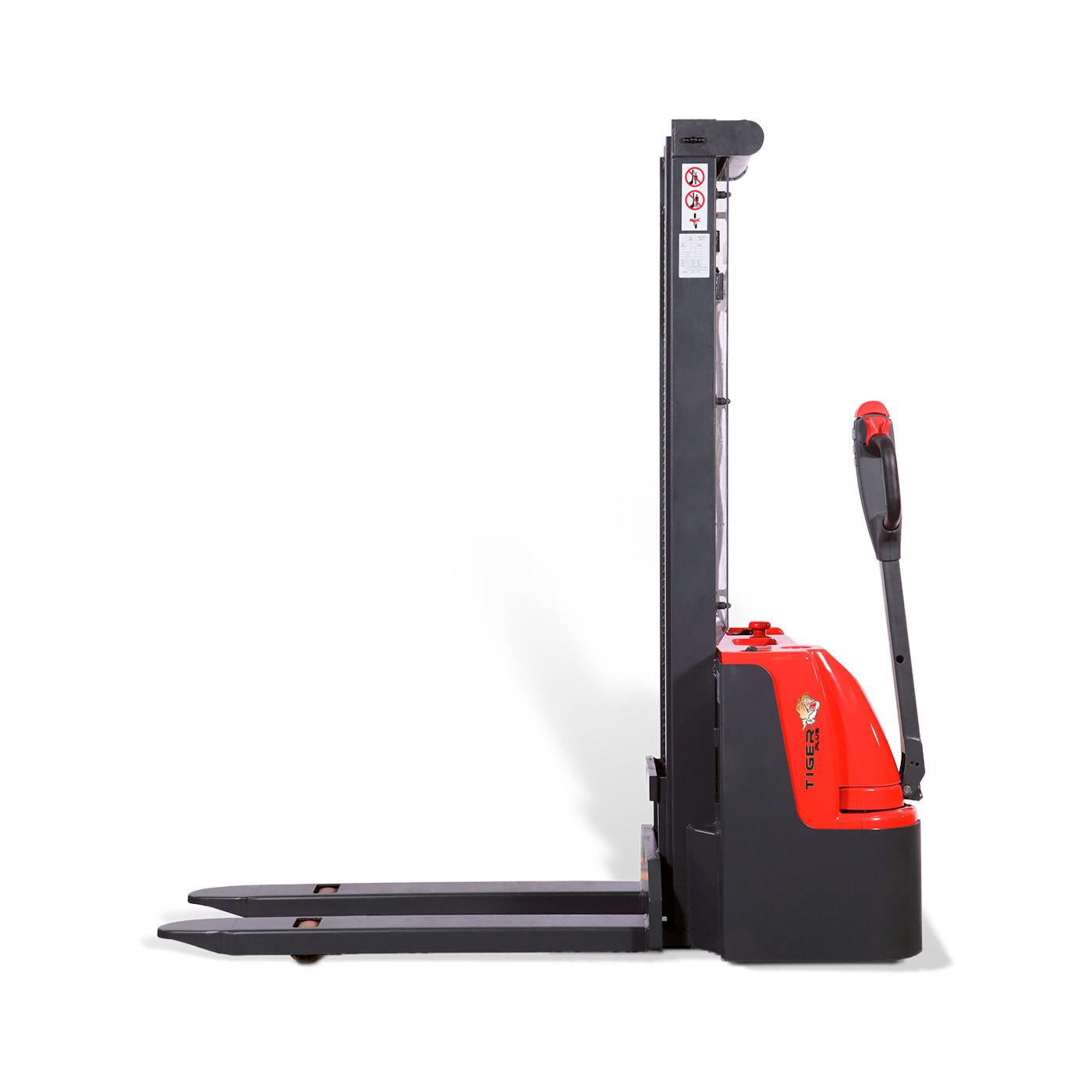

TIGER®-PLUS ECL electric forklift truck

The perfect all-rounder for every warehouse, workshop or production - the TIGER®-PLUS EDL. This product, in proven brand quality from Gesa Transporttechnik, is used wherever heavy loads have to be transported.

Product details:

  • Load capacity up to 1000 kg
  • Lifting height from 1530 - 2840 mm
  • Particularly suitable for transport over short distances and storage up to a lifting height of 2850 mm;
  • Maintenance-free three-phase drive motor
  • On-board charger
  • ergonomic design
  • all controls easily accessible via the tiller head
  • Battery charge indicator for longer battery life
  • 4-wheel model with side-mounted drawbar for high stability

Areas of application:

  • Deployment in warehouse
  • for industry
  • on retail spaces
  • in the workshop/production
