SELF - Logitrans®, lifting up to 3300mm

In stock

Item number
UNSPSC
24101606

Load-bearing capacity (kg)
1000

Lifting heights min./max. (mm)

Lifting height max. (mm)

Construction height when retracted (mm)

Construction height when extended (mm)

Fork length (mm)
1150

Load center (mm)
600

Fork load-carrying width (mm)
560

Total length x width (mm)

Drive wheel (mm)
250 x 76

Fork rollers Ø x width (mm)
85 x 90

Support castor Ø x width (mm)
150 x 50
Wenderadius
Turning radius (mm)
1475

Lifting motor (kW)
1,2 kW / 24 V

Traction motor power (kW)
1,2 / 24 kW/V

Traveling speed loaded/unloaded (km/h)
5/6 bis 500 mm , 3/4 ab 500 mm Hub
Lifting speed with/without load
0,07 / 0,012

Battery (V/Ah)

Weight (kg)

Free lift (mm)
190
Grouped product items
Product Name Qty


We deliver stock items within
24 hours free of charge*!


*Within Austria from € 250,-

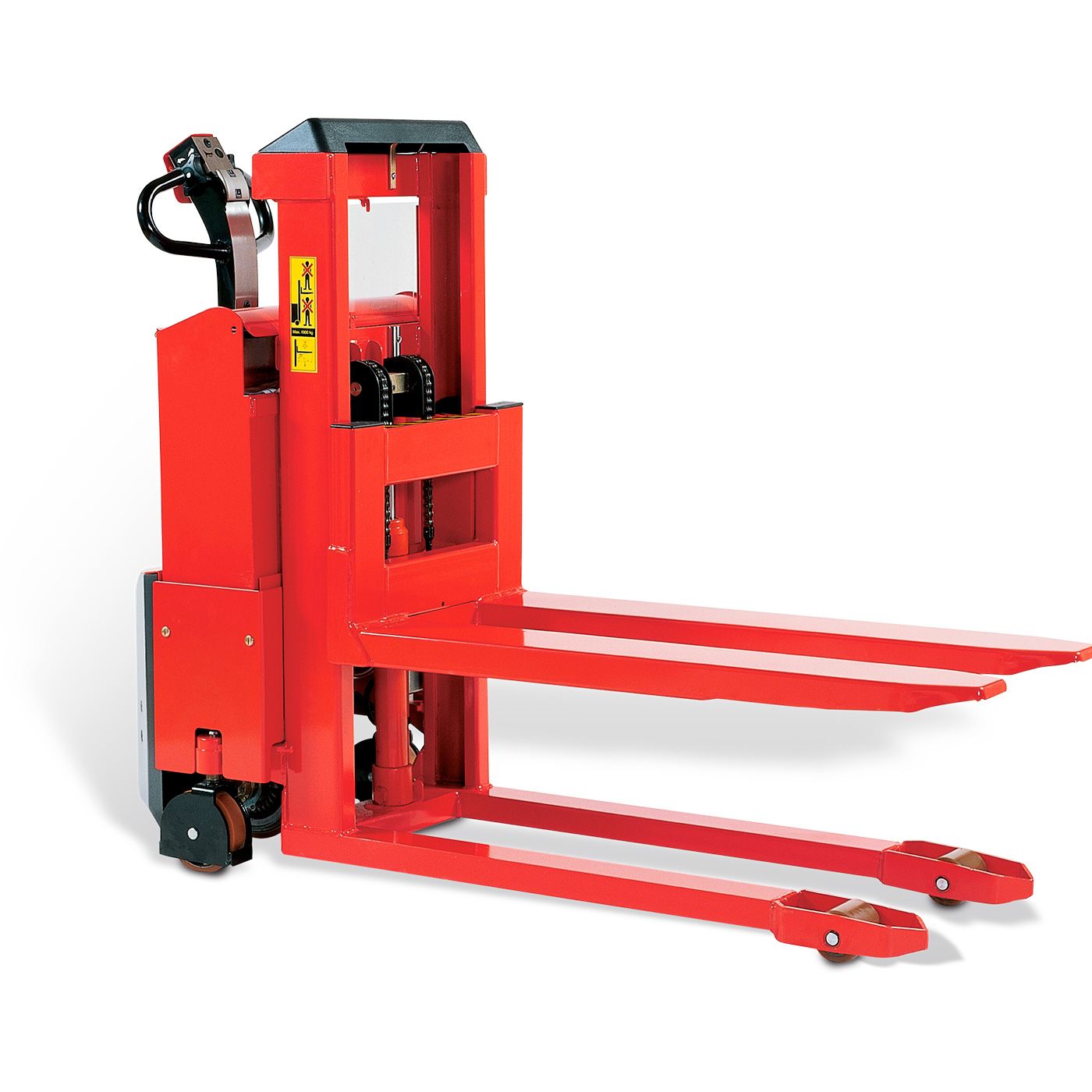

Logitrans® SELF MAXI – electric forklift truck

The Logitans® SELF-Maxi electric stacker is designed for frequent use and heavy pallet handling applications.  This truck has a robust construction and a powerful drive motor, housed in a very user-friendly design. With an adjustable fork span and spreader legs, it can handle many different types of pallets.

Customize your SELFS Maxi: Special fork sizes and fork types are available to lift non-standard pallets (including low profile pallets) as well as box pallets, crates, racks, dolavs and IBCs. The forks can be easily detached and replaced with other attachments (e.g. boom spear, crane arm, barrel forks, barrel turner, platform table) for multitasking. The truck can be modified with custom features to lift other non-palletized goods such as euro totes and carriers. Please contact us to discuss your requirement.

The SELF MAXI features a programmable speed controller that can be adjusted to the individual user. The transparent, impact-resistant safety pane and the duplex mast design offer the operator optimal viewing conditions. No damage to surroundings, pallets and goods - Maxi has an elegant design with rounded corners.

Product features:

  • Fully electric lift and drive: no operator effort required
  • Adjustable fork width and support legs to handle different pallet sizes
  • Forks can be easily detached and replaced with other attachments (e.g. crane arm, jib spear, platform table, drum turner) for multitasking
  • Transparent safety glass and duplex mast for optimal operator visibility
  • 2 year guarantee
  • 1000kg and 1200kg capacity versions available
  • A wrapover version is available for handling open pallets (e.g. EURO pallets) over sides without bottom skids
  • Optional: radio remote control
  • Optional: level control - the height of the pallet is automatically adjusted to the optimal working height during loading/unloading

Your benefit:

  • This model can be customized with alternative fork types and custom fork widths and fork lengths to handle many different pallet types.
  • This model can be customized to meet your specific needs with bespoke platforms, outrigger spears, crane arms and drum fork sizes.
  • Manual and semi-electric versions are also available

Please do not hesitate to contact us for more information.
