Tiger® scissors type lifiting table in triplicate and quadruplicate.

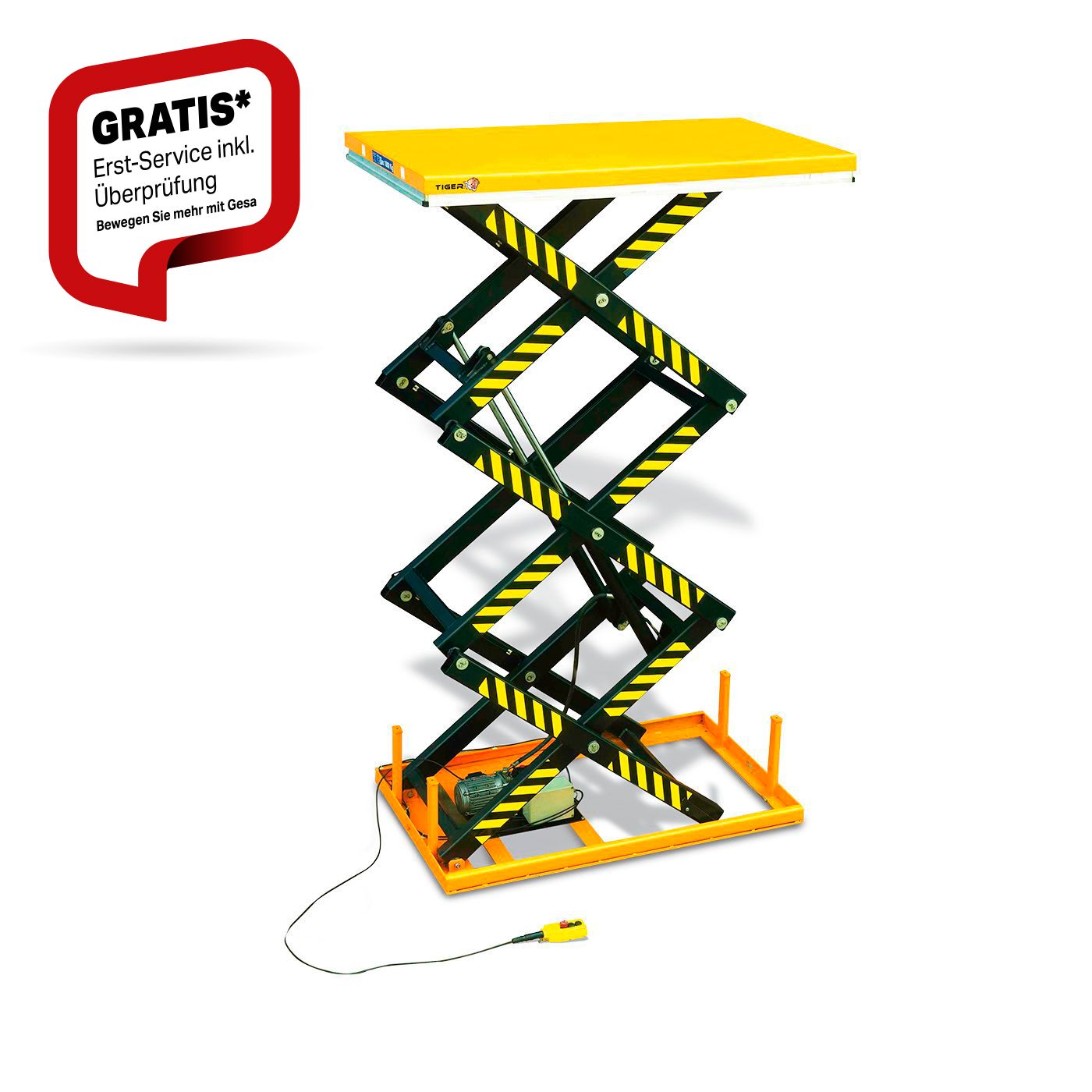

TIGER® triple and quadruple scissor lift tables

Our TIGER® multiple scissor lift tables, the original from Gesa, are suitable for lifting loads to great heights. This is why this type of lifting table is particularly popular for multi-storey warehouses or production lines with several levels.
By combining several vertical scissor packages, multiple scissor lift tables can achieve far greater lifting heights than simple scissor lift tables. Heavy loads can be easily and effortlessly lifted or lowered electro-hydraulically at the touch of a button. The lifting table can be firmly anchored to the floor or sunk into the floor - for even more safety and stability.

Of course, our multiple scissor lift tables are equipped with all the necessary safety devices. For example, each cylinder is equipped with a hose rupture valveq to ensure an immediate stop in the event of a pipe or hose rupture. All multiple scissor lift tables have an emergency stop switch and an optional key switch, which means that operation is only accessible to authorized persons. The very stable platform of the lifting tables also ensures safety in the workplace. To protect the feet, the floor panel is equipped with a raised bar and an electric foot protective contact stripon the underside of the platform reliably protects the operator from crushing when lowering the platform. Inspection and maintenance supports on the scissor links ensure additional safety during maintenance work.

Product features

• Load capacity up to 2000 kg* and more
• Table tops 1700 mm x 1000 mm.
• Control unit with up/down and emergency stop button on 3 m cable and dead man's control
• comply with EN 1570-1 and have the CE mark
• 24 V DC controls and controls with dead man's switch
• IP54 electrical system
• anti-pinch distance between all moving parts
• Overload protection
• Adjustable, highly sensitive protective contact strip on all four platform sides
• The table has electrical safety valves and mechanical supports for service and maintenance work
• maintenance-free bearings
• optional PLC control for easy adaptation to your special and individual requirements
• User manual in several languages
  * depending on the model.

 Custom-made products

Do you need an individual multiple scissor lift table for your business? Do you need a larger platform, higher load capacity, steel cladding for the free-standing hydraulic unit, top limit switch, ramp, self-supporting base frame, roll stop, maintenance flap, railings, barriers and a different finish?
