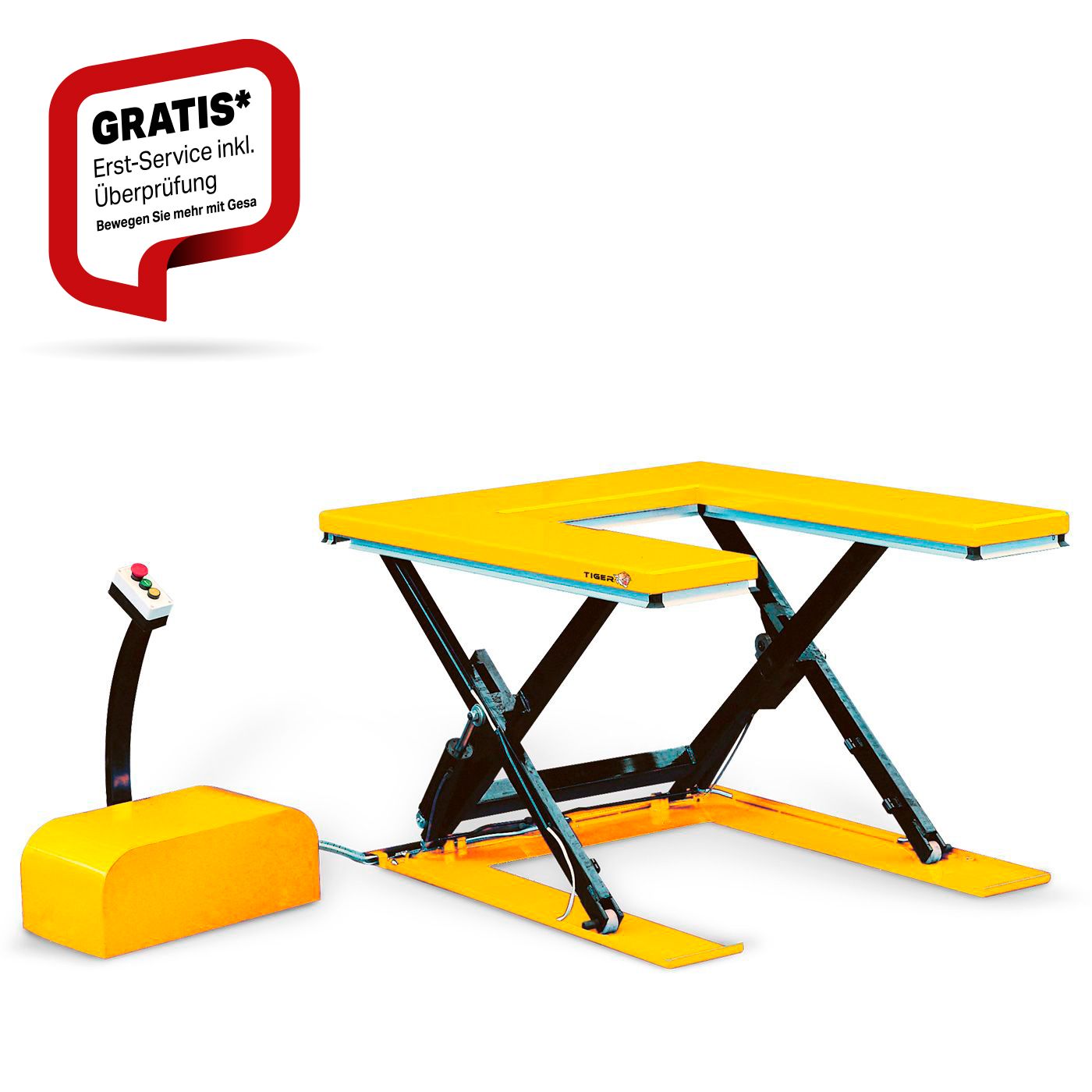

Tiger® - flat lifting table, U-shaped

U-shaped lifting table: Serie-TIGER®

Our TIGER® flat lift tables, the original from Gesa Transporttechnik, with U-platform  are extremely robust and versatile lifting devices.

It can be used to lift heavy loads to an ergonomic working height, lifting is stepless and lowering is also effortless and gentle. Depending on the model, the max. load capacity is between 600 kg and max. 1500 kg.

The separate control unit, with Lifting and lowering buttons, an emergency stop switch and a key switch can be placed flexibly.

Thanks to the so-called foot protection strip the lowering is immediately interrupted to prevent possible crushing.

Advantage of the TIGER® flat lifting tables:

Due to the recess in the platform, loading is possible by conveniently driving in a pallet truck or forklift without using any ramps, pits or similar.

The TIGER® lifting table can be lowered to 85 mm and via a ramp using pallet truck  can be conveniently loaded or unloaded. Structural changes during operation, such as loading ramps or pits, are no longer necessary with flat lifting tables.

Due to this advantage, our flat lifting tables are used in many production and logistics halls.

Product features of the TIGER® series

• Load capacity up to 1500 kg*
• Depending on the model, the dimensions of the tabletop are between 1420 mm x 1140 mm and 1600 mm x 1160 mm.
• comply with EN 1570-1 and have the CE mark
• 24 V DC controls and controls with dead man's switch
• IP54 electrical system
• anti-pinch distance between all moving parts
• Overload protection
• Adjustable, highly sensitive protective contact strip on all four platform sides
• The table has electrical safety valves and mechanical supports for service and maintenance work
• maintenance-free bearings
• optional PLC control for easy adaptation to your special and individual requirements
• Operating instructions in several languages
  *  depending on the model

Gesa Transporttechnik offers you:

• Competent advice on the products
• Planning and assembly of the lifting tables at your site
• The lifting platforms are extremely space-saving - thanks to their compact design
• Low maintenance
• Ease of use of the lifts
• short service intervals
• Services are carried out by our Gesa service team
• Low repair costs thanks to robust design
• 24h service hotline should a fault occur.
• individual guarantee solutions: contact us - our standard guarantee period of 12 months can be extended as required
