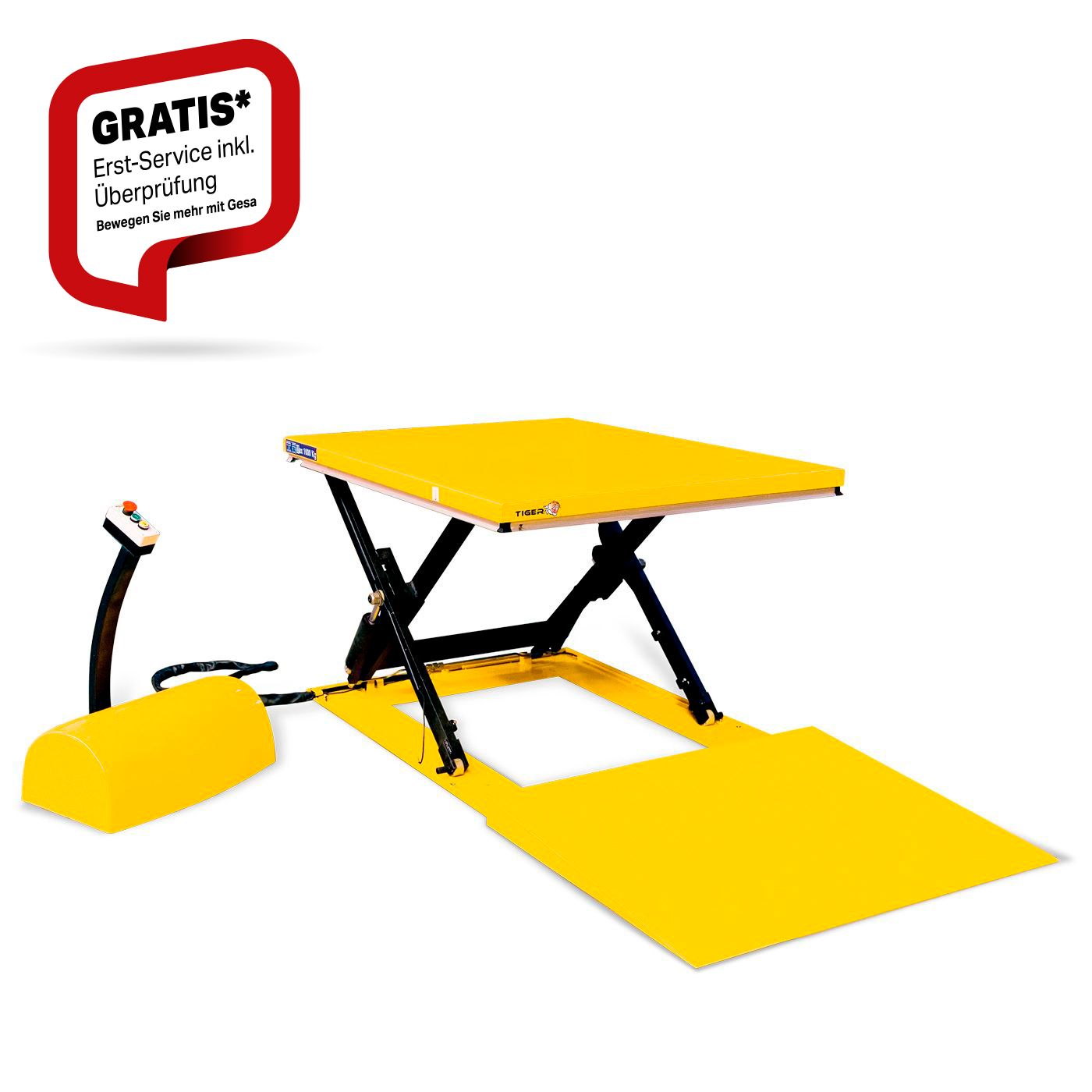

Tiger® - flat lifting table, closed

Flat lifting tables with closed platform: Serie-TIGER®

Our TIGER® flat lift tables, the original from Gesa Transporttechnik, with a closed platform are extremely robust and versatile usable lifting device.

It can be used to lift heavy loads to an ergonomic working height, lifting is stepless and lowering is also effortless and gentle. The max. load capacity is between 1000 kg and max. 2000 kg, depending on the model

Advantage of the TIGER® flat lifting table:

The flat lifting table can be lowered to 85 mm and using a ramp using pallet truck can be conveniently loaded or unloaded. Structural changes during operation, such as loading ramps or pits, are no longer necessary with flat lifting tables.

Product features of the TIGER® series:

• Load capacity up to 2000 kg*
• Depending on the model, table top dimensions between 1450 mm x 800 mm and max. 1600 mm x 1200 mm.
• comply with EN 1570-1 and have the CE mark
• 24 V DC controls and controls with dead man's switch
• IP54 electrical system
• anti-pinch distance between all moving parts
• Overload protection
• Adjustable, highly sensitive protective contact strip on all four platform sides
• The table has electrical safety valves and mechanical supports for service and maintenance work
• maintenance-free bearings
• optional PLC control for easy adaptation to your special and individual requirements
• User manual in several languages
  * depending on model

Gesa Transporttechnik offers you:

• Competent advice on the products
• Planning and assembly of the lifting tables at your site
• The lifting platforms are extremely space-saving - thanks to their compact design
• Low maintenance
• Ease of use of the lifts
• short service intervals
• Services are carried out by our Gesa service team
• Low repair costs thanks to robust design
• 24h service hotline should a fault occur.
• individual guarantee solutions: contact us - our standard guarantee period of 12 months can be extended at will

Ramp included in delivery
