Tiger® double - scissors type lifting table, load capacity up to 2000kg

Tiger® double scissor lift table

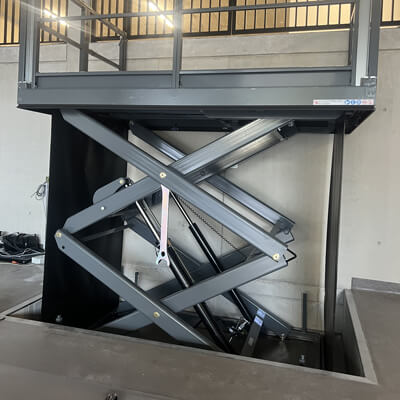

Our double scissor lift tables are particularly suitable when loads have to be lifted to great heights. By combining two scissor packages, our double scissor lift table can achieve a far greater lifting height than a simple scissor lift table. Double scissor lift tables are firmly anchored to the floor - but they can also be embedded in the floor - for even more safety and stability. These lifting tables are characterized by their robust construction. The scissors of the lifting tables raise and lower the lifting table platform safely and reliably and, depending on the version, you can lift loads of up to 2000 kg.

Product details:

• Load capacity up to 2000 kg* and more
• Table tops between 1300 mm x 820 mm and 1300 mm x 850 mm.
• comply with EN 1570-1 and have the CE mark
• 24 V DC controls and controls with dead man's switch
• IP54 electrical system
• anti-pinch distance between all moving parts
• Overload protection
• Adjustable, highly sensitive protective contact strip on all four platform sides
• The table has electrical safety valves and mechanical supports for service and maintenance work
• maintenance-free bearings
• optional PLC control for easy adaptation to your special and individual requirements
• Operating instructions in several languages
  * depending on Model;

Accessories:

Gesa Transporttechnik has the right accessories for all our lifting tables.
For example, fall protection with a railing on the platform or underrun protection in the form of bellows, plastic roller blinds or grating so that nobody can get under the lifting table. Roll-off protection, bolt-locked platform, damping buffers, substructures and superstructures, also mobile, oil-tight leak trays, lifting protection, light barriers, one or more intermediate stops of the platform, end-of-stroke cushioning of the cylinders and/or use of environmentally friendly hydraulic oil.
But also various versions of the control console, such as wall and switch box mounting, lockability are common and available accessories.

Additional offers:

And different surface treatments, such as galvanizing, coating in all common RAL colors are also possible. We can also supply you with almost all lifting tables in  stainless steel  Special requirements such as explosion protection and clean room suitability on request.

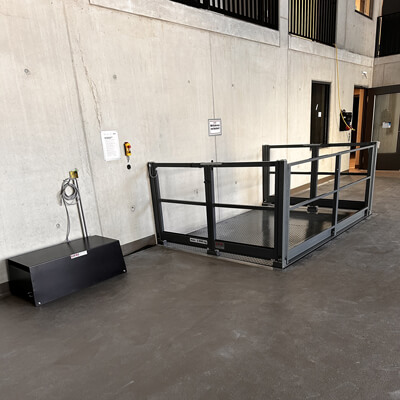

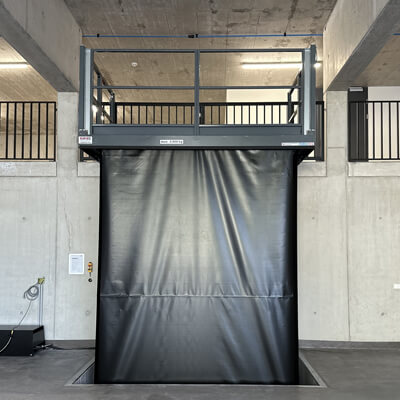

Custom-made products

You need an individual double scissor lift table for your company?

Do you need a larger platform, higher load capacity, steel cladding for the free-standing hydraulic unit, top limit switch, ramp, self-supporting base frame, roll stop, maintenance flap, railings, barriers and a different finish?
