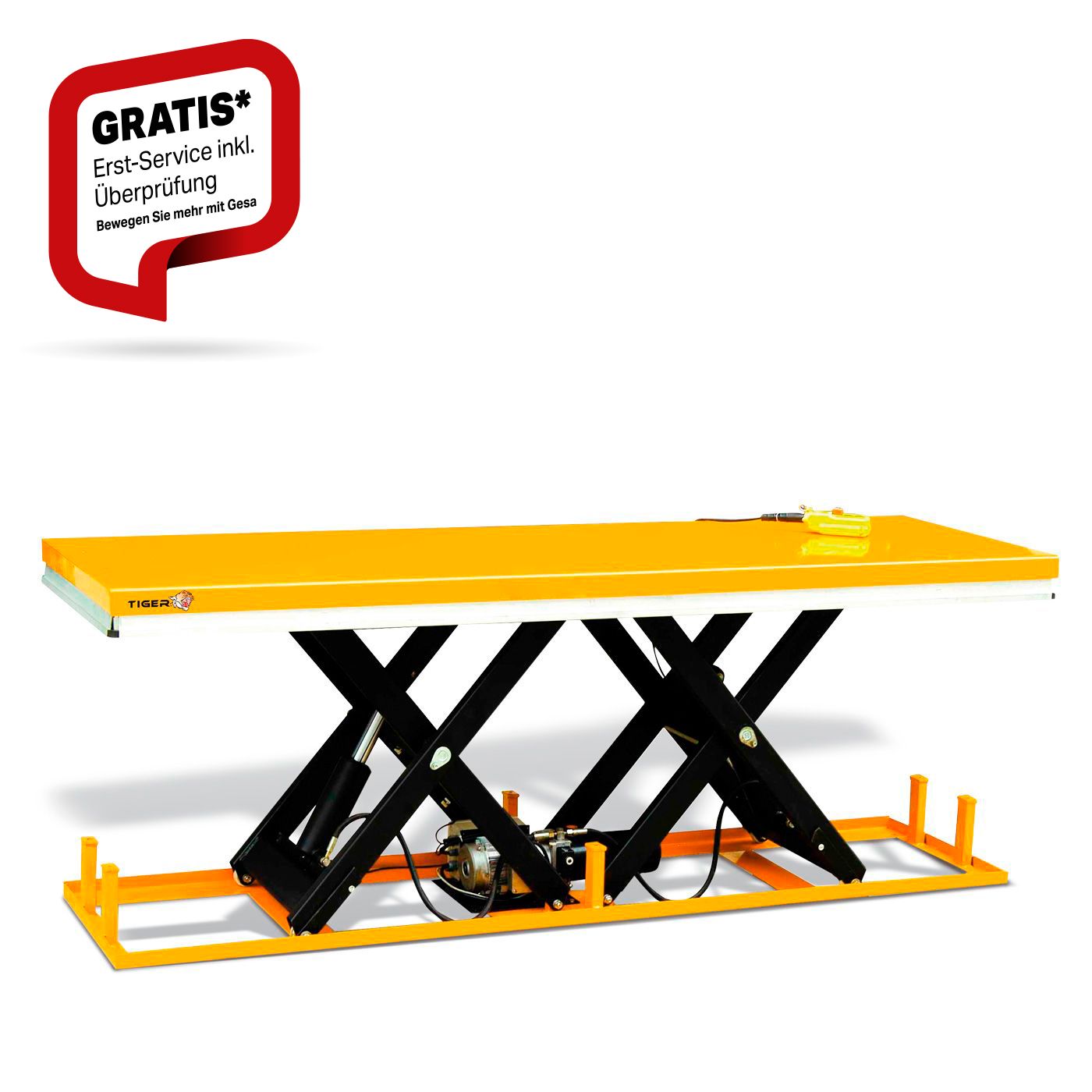

Scissors-type lifting table in tandem version, horizontal

Scissor lift tables tandem design

Our double scissor lift tables in tandem design consist of a combination of two single scissors in a row and thus achieve the desired capacity for the table platform of 2500 mm x 850 mm. The lifting movements of the two scissor assemblies are mechanically synchronized so that the parallel lifting function can be achieved. Our tandem scissor lift tables also enable effective and safe handling of bulky loads.

Product features:

• Load capacity up to 4000 kg* and more
• Table tops between 2500 mm x 820 mm and 4550 mm x 1000 mm.
• comply with EN 1570-1 and have the CE mark
• 24 V DC controls and controls with dead man's switch
• IP54 electrical system
• anti-pinch distance between all moving parts
• Overload protection
• Adjustable, highly sensitive protective contact strip on all four platform sides
• The table has electrical safety valves and mechanical supports for service and maintenance work
• maintenance-free bearings
• optional PLC control for easy adaptation to your special and individual requirements
• User manual in several languages
  * depending on the model;

Gesa Transporttechnik offers you:

• Competent advice on the products
• Planning and assembly of the lifting tables at your site
• The lifting platforms are extremely space-saving - thanks to their compact design
• Low maintenance
• Ease of use of the lifts
• short service intervals
• Services are carried out by our Gesa service team
• Low repair costs thanks to robust design
• 24hservice hotline should a fault occur.
• individual guarantee solutions: contact us - our standard guarantee period of 12 months can be extended at will

SERVICE:
When buying a lifting table, this is first service of course free of charge. Our Gesa service team will of course be happy to carry out the other short service intervals.

Accessories:

With various accessories , the lifting tables can be adapted to your specific application:
For example, fall protection with a railing on the platform or underrun protection in the form of bellows, plastic roller blinds or grating so that nobody can get under the lifting table. Roll-off protection, bolt-locked platform, damping buffers, substructures and superstructures, also mobile, oil-tight leak trays, lifting protection, light barriers, one or more intermediate stops of the platform, end-of-stroke cushioning of the cylinders and/or use of environmentally friendly hydraulic oil.
But also various versions of the control console, such as wall and switch box mounting, lockability are common and available accessories.

Custom-made products

Do you need an individual double scissor lift table for your business? A larger platform, higher load capacity, steel cladding for the free-standing hydraulic unit, top limit switch, ramp, self-supporting base frame, roll stop, maintenance flap, railings, barriers and a different paint finish?
