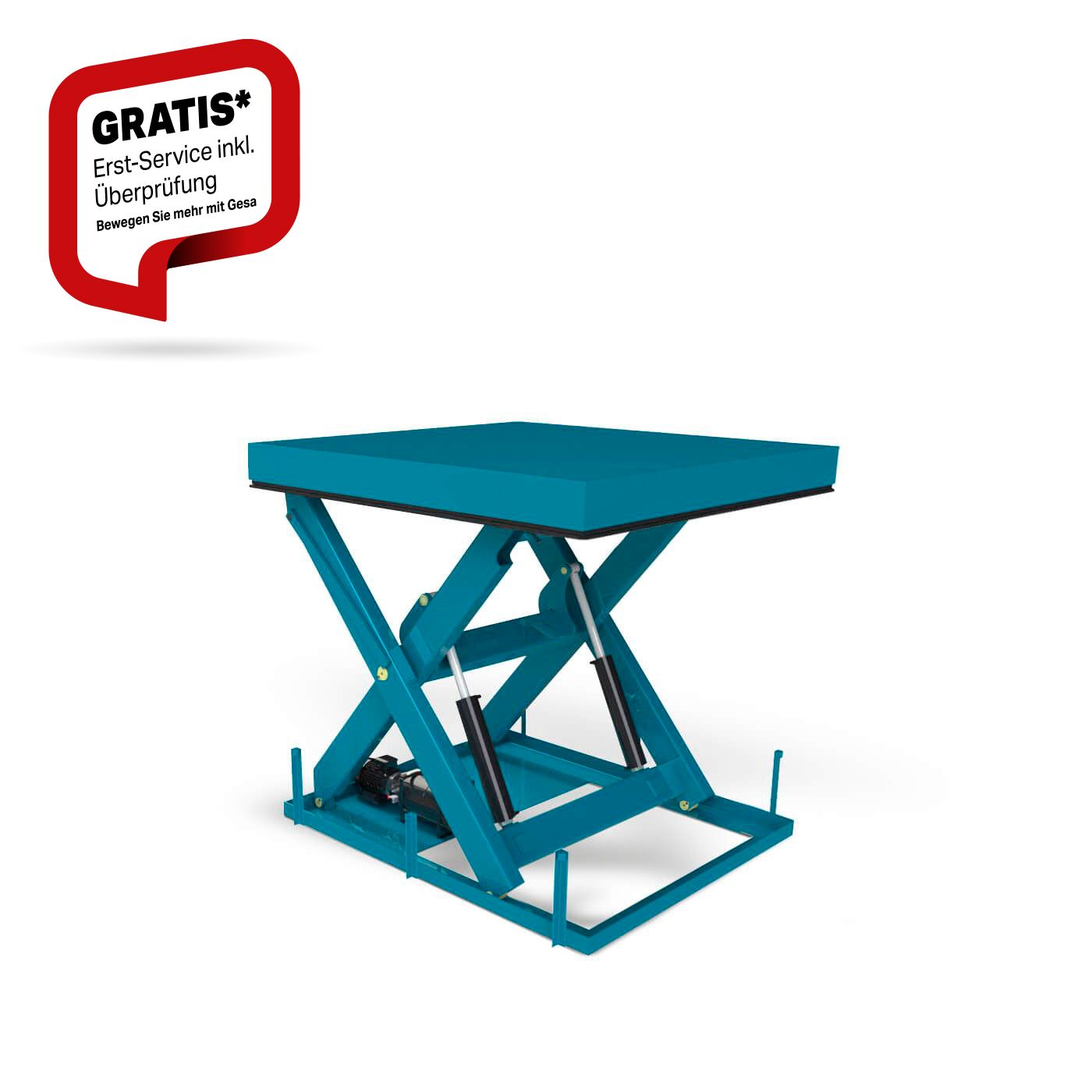

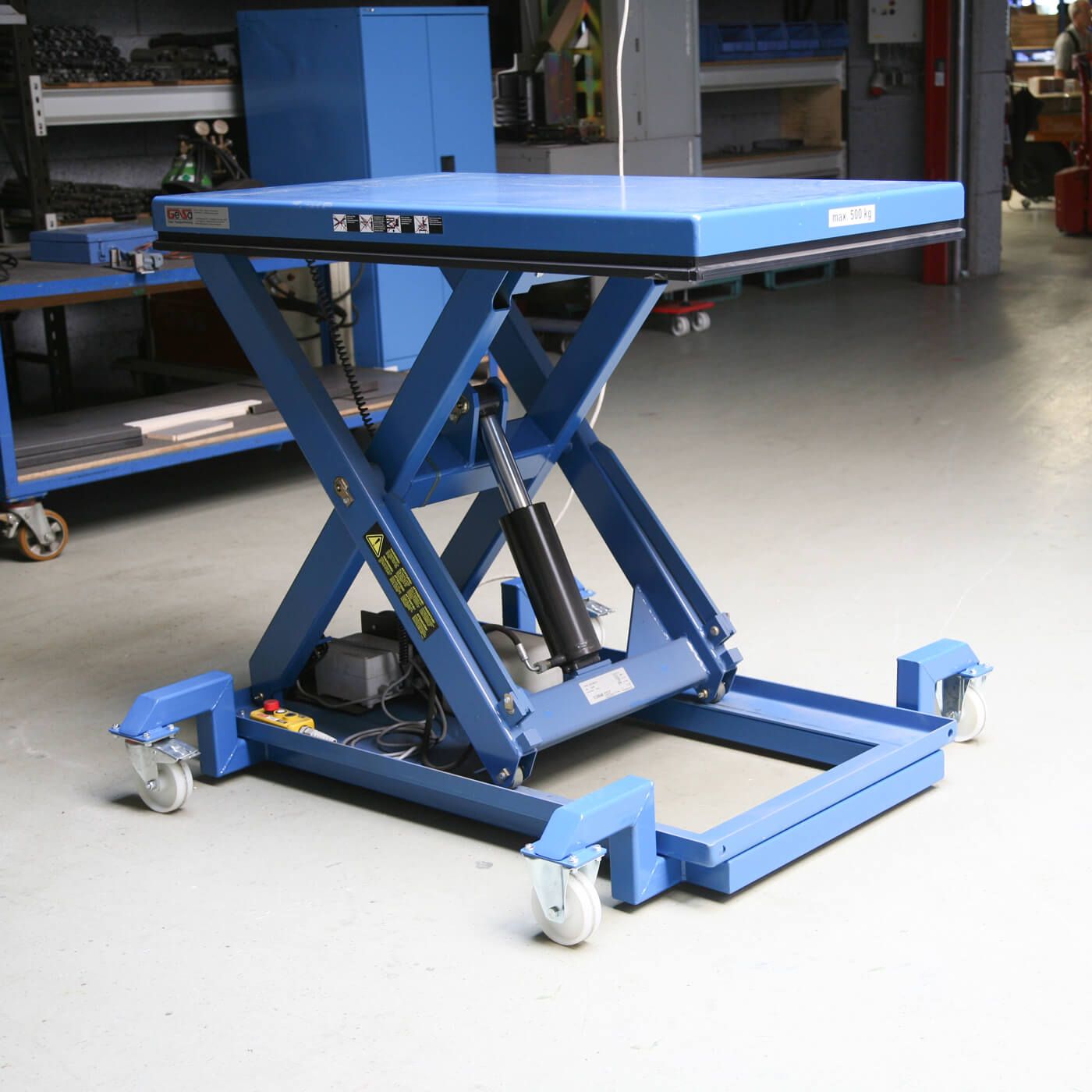

Loading lifting table with square platform

Our loading lift tables are used specifically in the logistics sector. When loading and unloading trucks, they compensate for the difference in height between the fixed loading ramp and the access road. With our loading lift tables, the platform can be raised to the desired lifting height within a few seconds using a control element and also lowered smoothly, gently and safely.

With the right accessories, the loading lift table can be adapted to many different applications at the customer's request. For example, if the lifting table is to be run over with a vehicle when it is lowered, we provide a reinforced platform and additional support bolts for ideal force transmission in the pit to withstand the loads. The Gesa team will be happy to advise you on this.

The loading tables of the JX3 series with a square platform are ideally suited for daily use in the logistics sector thanks to their robust and high quality.

Product features of the JX3 series with square platform

• Load capacity up to 3000 kg* and more
• Square table tops 2000 mm x 2000 mm
• comply with EN 1570-1 and have the CE mark
• 24 V DC controls and controls with dead man's switch
• IP54 electrical system
• anti-pinch distance between all moving parts
• Overload protection
• Adjustable, highly sensitive protective contact strip on all four platform sides
• The table has electrical safety valves and mechanical supports for service and maintenance work
• maintenance-free bearings
• optional PLC control for easy adaptation to your special and individual requirements
• User manual in several languages
  * depending on the model

Optionally, this lifting table can be converted for applications where high cycle rates are required. Ideal for integration and use in conveyor lines or multi-shift operation.

Gesa Transporttechnik offers you:

• Competent advice on the products
• Planning and assembly of the lifting tables at your site
• The lifting platforms are extremely space-saving - thanks to their compact design
• Low maintenance
• Ease of use of the lifts
• low service intervals
• Services are carried out by our Gesa service team
• Low repair costs thanks to robust design
• 24h service hotline should a fault occur.
• individual guarantee solutions: contact us - our standard guarantee period of 12 months can be extended at will

Custom-made products - we also adapt each lifting table to individual customer requirements.
