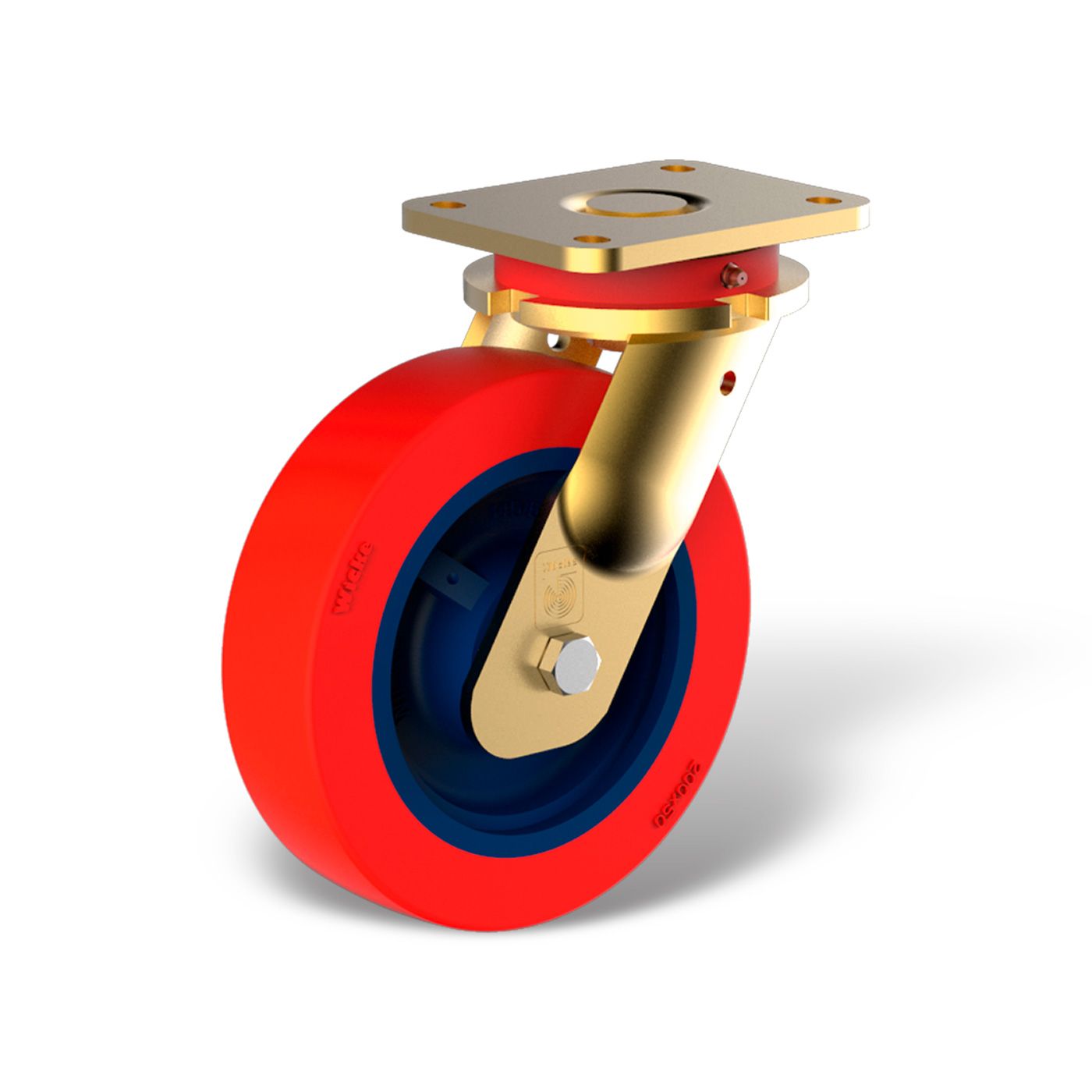

TG LLAK 4/200/75K

LLAK series plate mount steering forks are heavy duty welded steel construction. The slewing ring in the fork head is supported twice with an axial grooved ball bearing (DIN 711/ISO 104) and tapered roller bearing (DIN 720/ISO 355). Although the bearings are lubricated for life, they can also be relubricated via a grease nipple if necessary. The fork part and fork head are screwed to a very robust central bolt and secured by riveting, the fork is yellow chromated.

Wheels in the TG series consist of a cast rim made of high-quality gray cast iron, on which a soft polyurethane tire, Wicke Redthane® 75 ° Shore A, is poured on. The Redthane® tire, which is connected to the rim with a special adhesion promoter, is abrasion-resistant, has low rolling and starting resistance, very good traction properties and runs extremely quietly. The tire is cut-resistant with very good values for tear resistance and tear propagation resistance. The wheels are equipped with a deep groove ball bearing.
