PE LVK 3/160/50K
€90.25 Regular Price €95.00
exkl. MwSt./Stk.
5% Online-Rabatt
You save 4,75 €
Available immediately
PE LVK 3/160/50K
Item number
34380
Part description
PE LVK 3/160/50K
UNSPSC
31162701
Diameter (mm)
160
Wheel width (mm)
50
Construction height (mm)
215
Load-bearing capacity (kg)
880
Arrester
without Arrester
Bearing type
Prescision ball bearing
Wheel material
Polyurethane
Wheel material
Polyurethane
Fastening plates external dimensions (LxB) (mm)
135 x 110
Fastening hole diameter (mm)
11
Jib length (mm)
53
Fastening method
Anschraubplatte
Hole spacing (a x b) (mm)
105 x ( 75/80)
PE LVK 3/160/50K
€90.25 Regular Price €95.00
5% Online-Rabatt
You save 4,75 €
Available immediately
Related Products
Heavy-duty castors series PE
Starting at €30.31
Swivel castor with wheel type PE
Starting at €37.62
Fixed castors with wheel type PE
Starting at €35.44
Swivel castor with bolt hole, wheel type PE
Starting at €35.82
Swivel castor with wheel type PE
Starting at €61.18
Fixed castors with wheel type PE
Starting at €39.71
Swivel castor with wheel type PE
Price On Demand
Fixed castors with wheel type PE
Price On Demand
Fixed castors with wheel type PE
Starting at €45.98
Swivel castor with wheel type PE
Price On Demand
Fixed castors with wheel type PE
Price On Demand
€90.25 Regular Price €95.00
exkl. MwSt./Stk.
5% Online-Rabatt
You save 4,75 €
Available immediately
Serie PE
Starting resistance
Rolling resistance
Driving noise
Abrasion
Starting resistance
Rolling resistance
Driving noise
Abrasion
We deliver stock items within
24 hours free of charge*!
*Within Austria from € 250,-

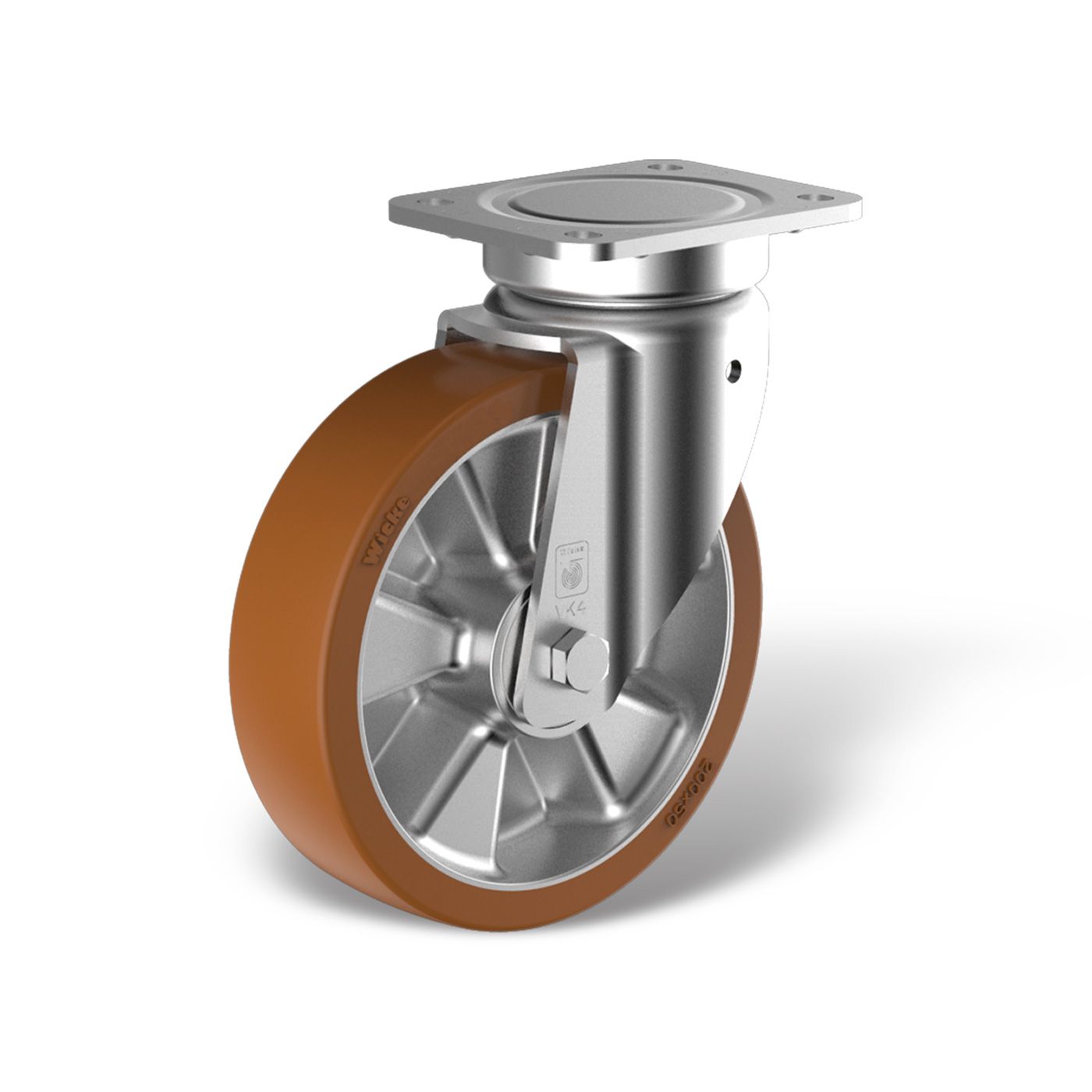

Sheet steel housing with plate mounting. There is a sealed 2RS ball bearing in the fork crown. The ball bearing is protected against the ingress of dirt and dust. The base plate with four screw holes is firmly screwed to the fork part and secured to ensure the greatest possible ease of movement with the least amount of play in the fork head.
Wheels in the PE series consist of a one-piece die-cast aluminum rim with a polyurethane tire, wick Topthane® 92° Shore A, is poured on. The Topthane® tire, which is bonded to the rim with a special adhesion promoter, is abrasion-resistant and has low rolling and starting resistance. The tire is cut-resistant with very good values for tear resistance and tear resistance. The wheels are equipped with deep groove ball bearings.
Wheels in the PE series consist of a one-piece die-cast aluminum rim with a polyurethane tire, wick Topthane® 92° Shore A, is poured on. The Topthane® tire, which is bonded to the rim with a special adhesion promoter, is abrasion-resistant and has low rolling and starting resistance. The tire is cut-resistant with very good values for tear resistance and tear resistance. The wheels are equipped with deep groove ball bearings.
