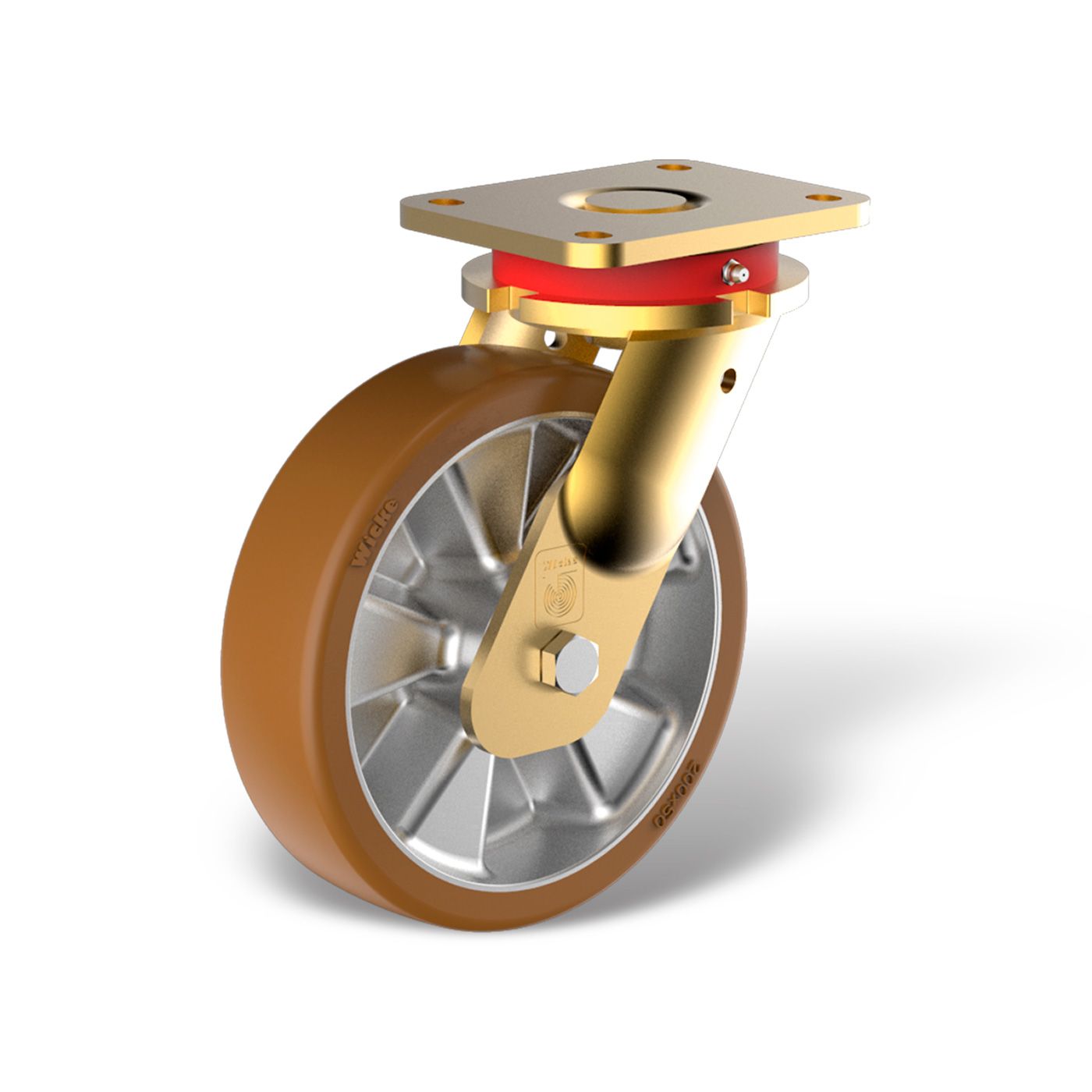

Swivel castor with wheel type PE

In stock

Item number
UNSPSC
31162701

Diameter (mm)

Wheel width (mm)

Construction height (mm)

Load-bearing capacity (kg)

Arrester

Bearing type
Prescision ball bearing

Wheel material
Polyurethane

Fastening plates external dimensions (LxB) (mm)
135 x 110

Fastening hole diameter (mm)
11

Jib length (mm)

Fastening method
Anschraubplatte

Hole spacing (a x b) (mm)
105 x ( 75/80)
Grouped product items
Product Name Qty
Serie PE

Starting resistance

Rolling resistance

Driving noise

Abrasion




We deliver stock items within
24 hours free of charge*!


*Within Austria from € 250,-
Swivel forks with LLAK series top plate are made in heavy duty welded steel construction. The swivel head is equipped with a precision axial ball bearing (DIN 711/ISO 104) and a tapered roller bearing (DIN 720/ISO 355). Although the bearings are greased for life, they can be additionally greased with the grease nipple. The swivel head and the yoke are bolted and secured by a cross-linking, the swivel fork is yellow chromatised; Wheels of the serie PE are made of a one-piece aluminum die cast wheel centre with a vulcanized polyurethane Wicke Topthane® 92° shore A tyre. The Topthane® tyre is bonded to the wheel centre with a special bonding agent. The tyre is abrasion resistant with low starting and rolling resistance. The tyre is cut proof and has good tear strength. The wheels are with ball bearings.
