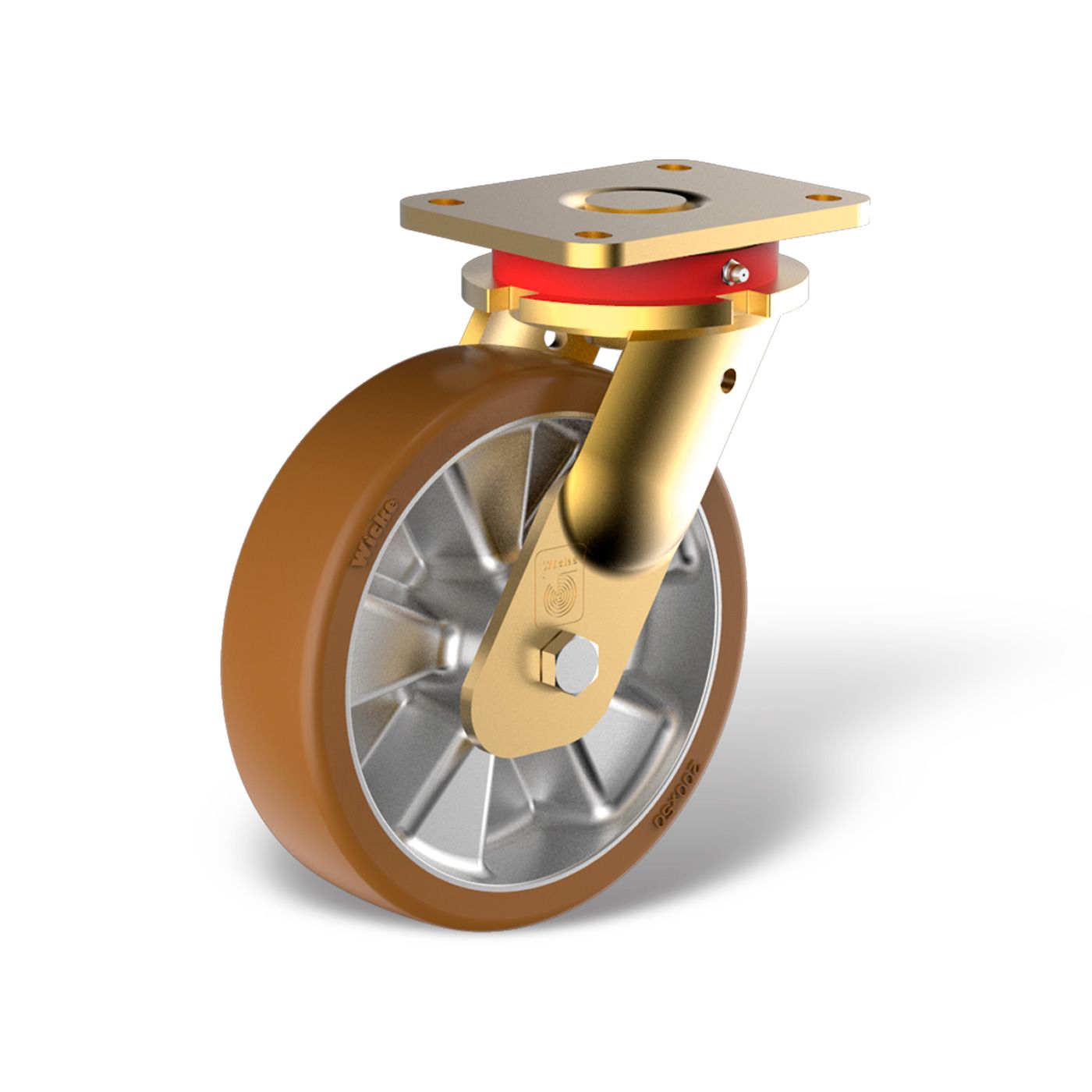

PE LLAK 64/250/50K

Steering forks with plate mounting of the LLAK series are welded steel structures in heavy design. The slewing ring in the fork head is supported twice with an axial deep groove ball bearing (DIN 711/ISO 104) and a tapered roller bearing (DIN 720/ISO 355). Although the bearings are lubricated for life, they can also be relubricated via a grease nipple if necessary. Fork part and fork head are screwed with a very robust center bolt and secured by riveting, the fork is yellow chromated.

Wheels of the PE series consist of a one-piece die-cast aluminum rim on which a polyurethane tire, Wicke Topthane® 92° Shore A, is infused. The Topthane® tire, which is bonded to the rim with a special adhesion promoter, is abrasion-resistant and has low rolling and starting resistance. The tire is cut-resistant with very good values for tear resistance and tear resistance. The wheels are equipped with deep groove ball bearings
