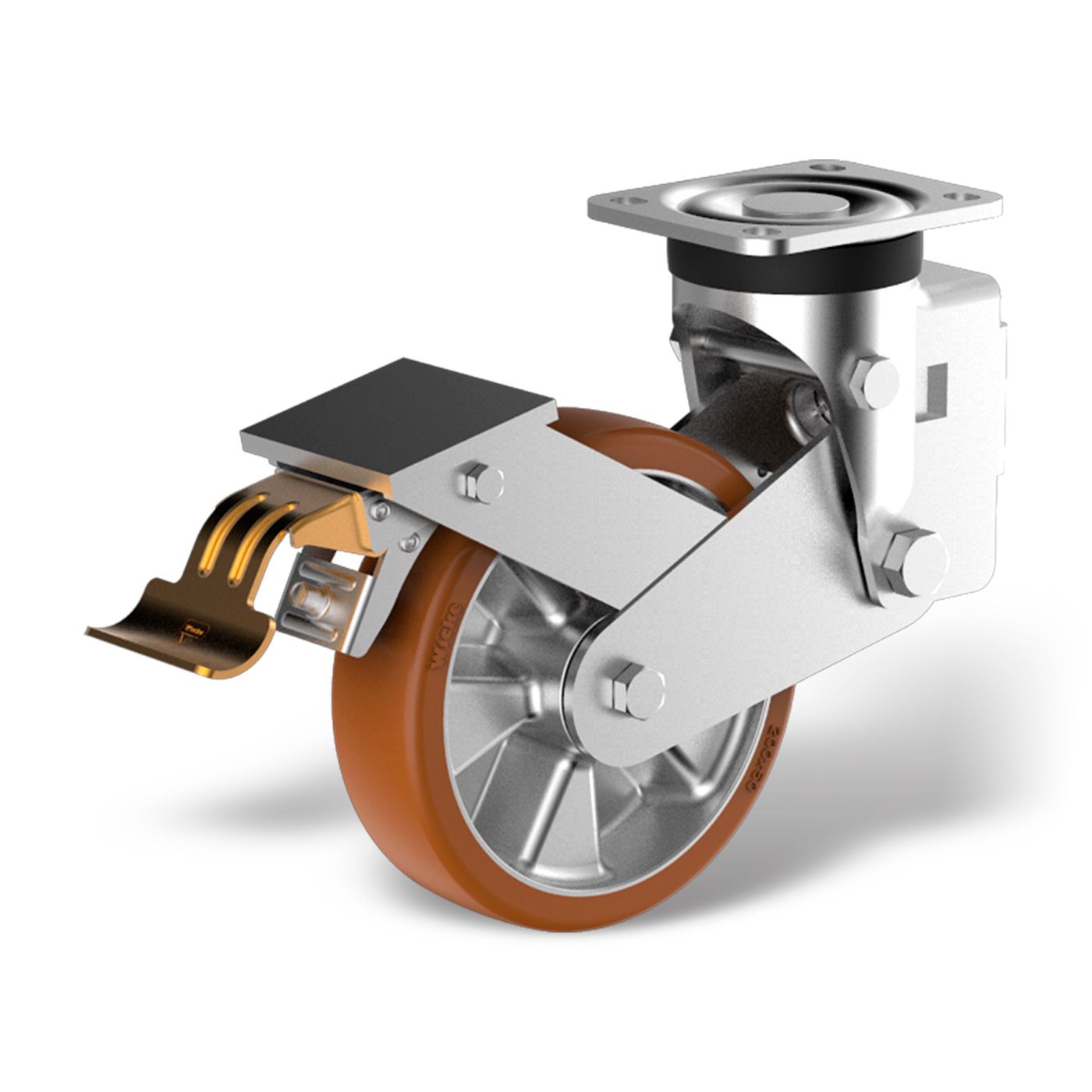

PE LGF 3/4/200/50K-FSTF

Sheet steel housing with plate mounting. Fork head with double ball race and hardened bearing shells. The greased ball tracks are protected with sealing rings against the ingress of dirt and dust. The base plate is screwed firmly to the fork part and secured; we ensure that there is little play in the fork head and that it moves as smoothly as possible. In the series, the load is absorbed via a spring package consisting of a steel compression spring and an elastomer spring element. The spring forces can be varied using other spring packages upon customer request.

Wheels of the PE series consist of a one-piece die-cast aluminum rim onto which a polyurethane tire, Wicke Topthane® 92° Shore A, is cast. The Topthane® tire, which is bonded to the rim with a special adhesion promoter, is abrasion-resistant and has low rolling and starting resistance. The tire is cut-resistant with very good values for tear resistance and tear resistance. The wheels are equipped with deep groove ball bearings. Fv:550; Fe: 5500; Fw: 30
