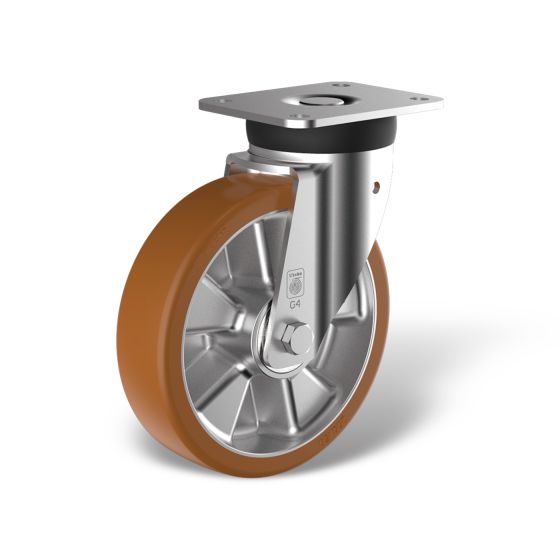

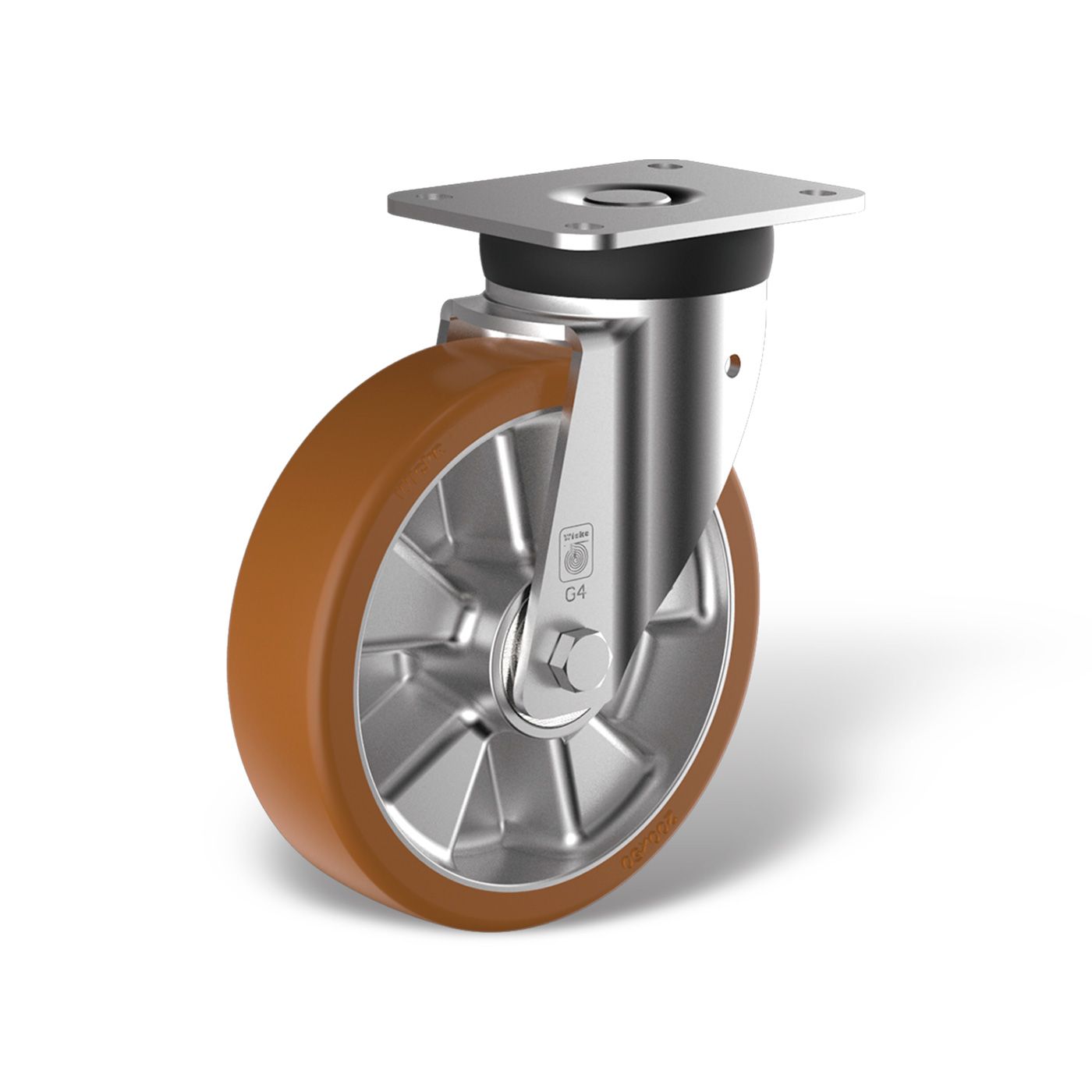

PE LG 02/100/40K

Sheet steel housing with plate mounting. Fork head with double ball race and hardened bearing shells. The greased ball tracks are protected with sealing rings against the ingress of dirt and dust. The base plate is firmly screwed and secured to the fork part, we pay attention to minimal play in the fork head with the greatest possible ease of movement.

Wheels in the PE series consist of a one-piece die-cast aluminum rim on which a polyurethane tire, Wicke Topthane, is mounted ® 92° Shore A, is poured. The Topthane® tire, which is bonded to the rim with a special adhesion promoter, is abrasion-resistant and has low rolling and starting resistance. The tire is cut-resistant with very good values for tear resistance and tear resistance. The wheels are equipped with deep groove ball bearings
