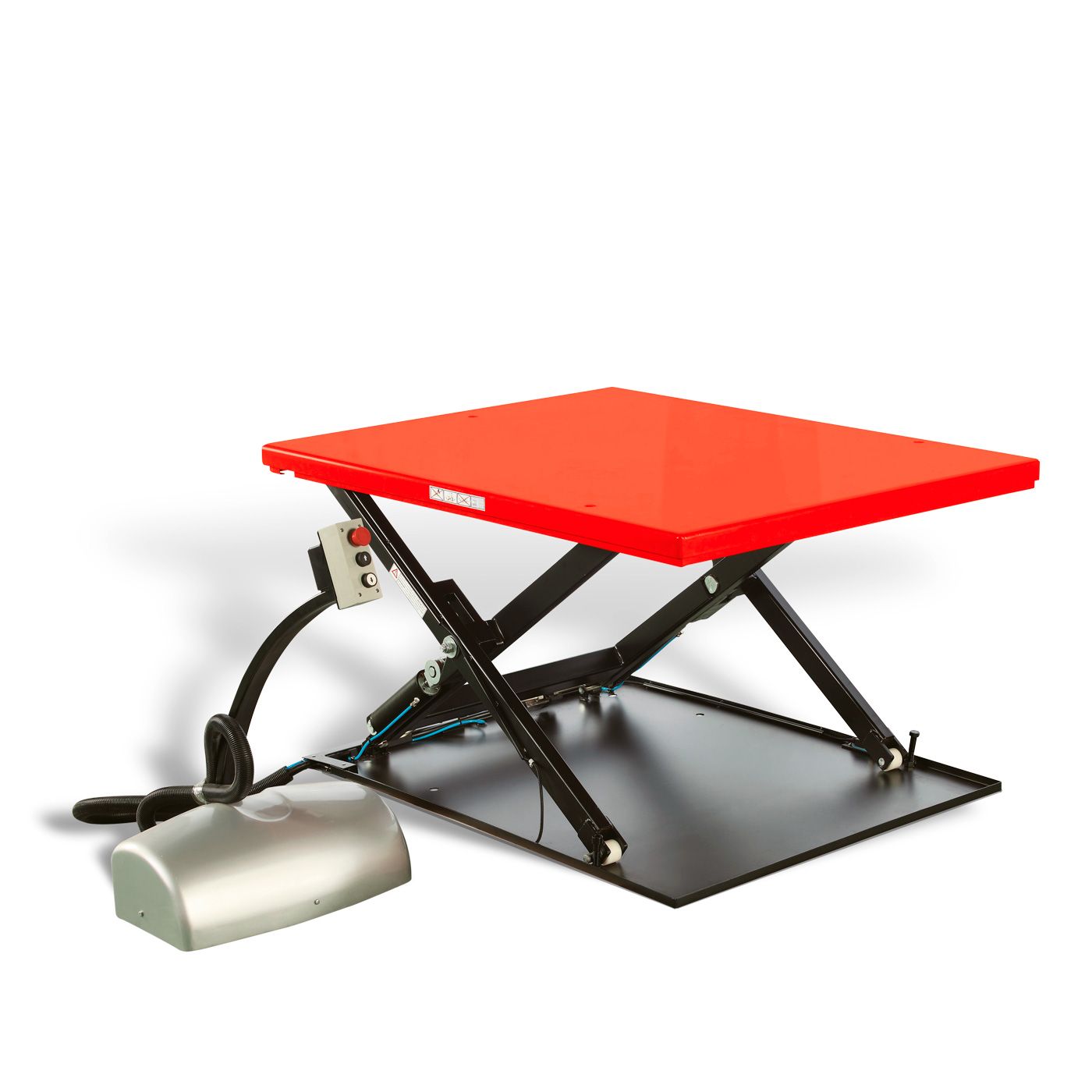

HTF-GF10 - flat shaped highlifter, stainless steel

Shelf lifting table – HTF-G10

Our HTF-G10 flat lifting table with closed platform is a robust and versatile lifting device. With it, heavy loads can be lifted to an ergonomic working height, lifting is stepless and lowering is also effortless and gentle. The maximum load capacity is 1000 kg.
The separately standing operating unit, with lifting and lowering buttons, an emergency stop switch and a key switch, can be placed flexibly.
The so-called foot protection strip stops the lowering immediately to prevent possible crushing.

Advantage of the HTF-G10:

The flat lifting table can be lowered to 85 mmq and using a ramp using pallet truck can be conveniently loaded or unloaded. Structural changes during operation, such as loading ramps or pits, are no longer necessary with flat lifting tables.

Product features

• Load capacity up to 1000 kg
• Table tops 1450 mm x 1140 mm.
• comply with EN 1570-1 and have the CE mark
• 24 V DC controls and controls with dead man's switch
• IP54 electrical system
• anti-pinch distance between all moving parts
• Overload protection
• Adjustable, highly sensitive protective contact strip on all four platform sides
• The table has electrical safety valves and mechanical supports for service and maintenance work
• maintenance-free bearings
• optional PLC control for easy adaptation to your special and individual requirements
• Operating instructions in several languages

Ramp included in delivery
