HU 600

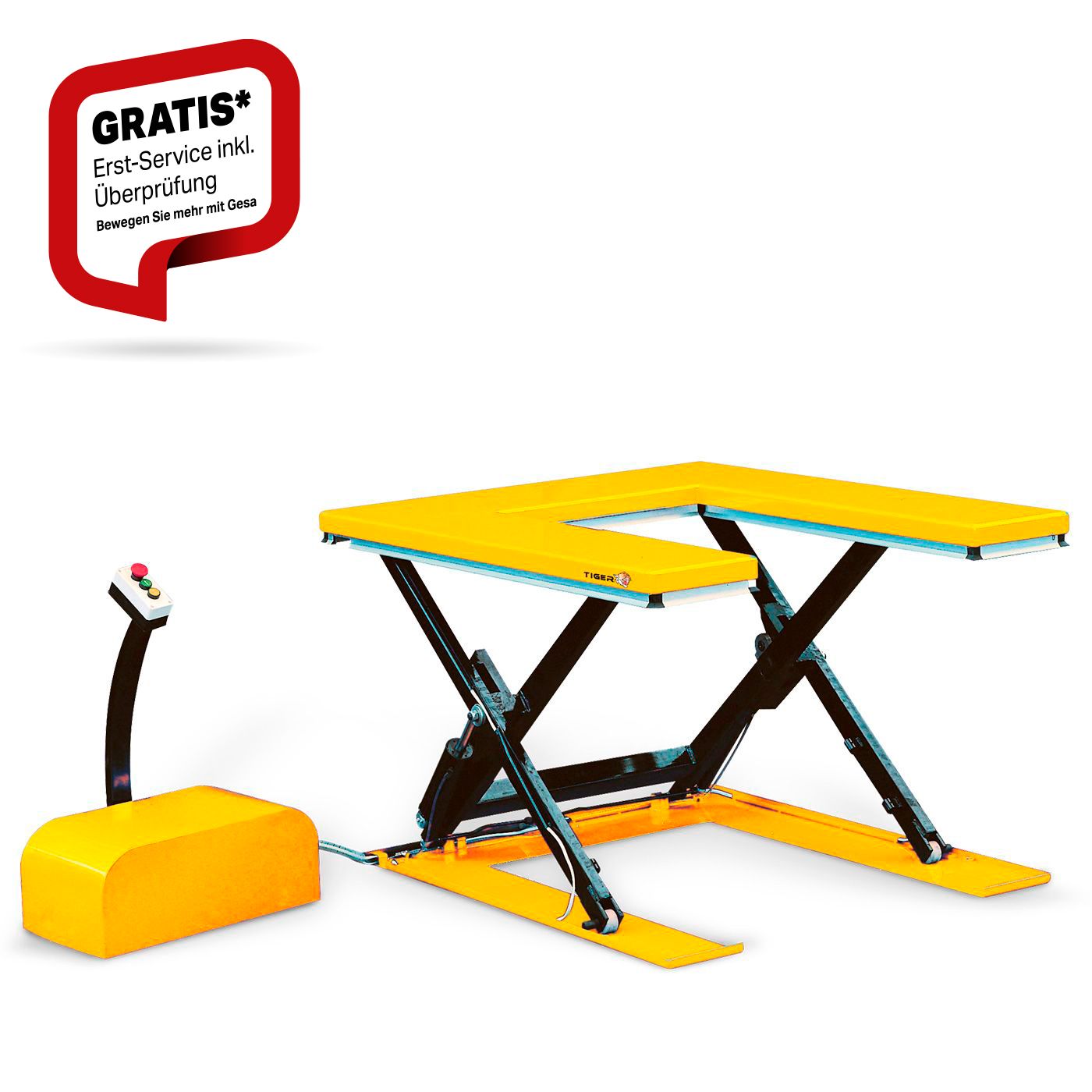

TIGER® flat lifting tables, robust design with a large platform, the low overall height enables easy loading when retracted, the hydraulic unit is housed externally in a protected box, the control unit with up/down and Emergency stop button, operating voltage 400 V/50 Hz, control voltage 24 V, The flat lifting table is subject to the strict safety standard EN 1570; Pipe rupture protection, contact protection strips and inspection supports are standard equipment. The U-shaped lifting table has an entry opening for fork lift trucks (width 585 mm), the pallet can be parked directly on the platform (no ramp required)
