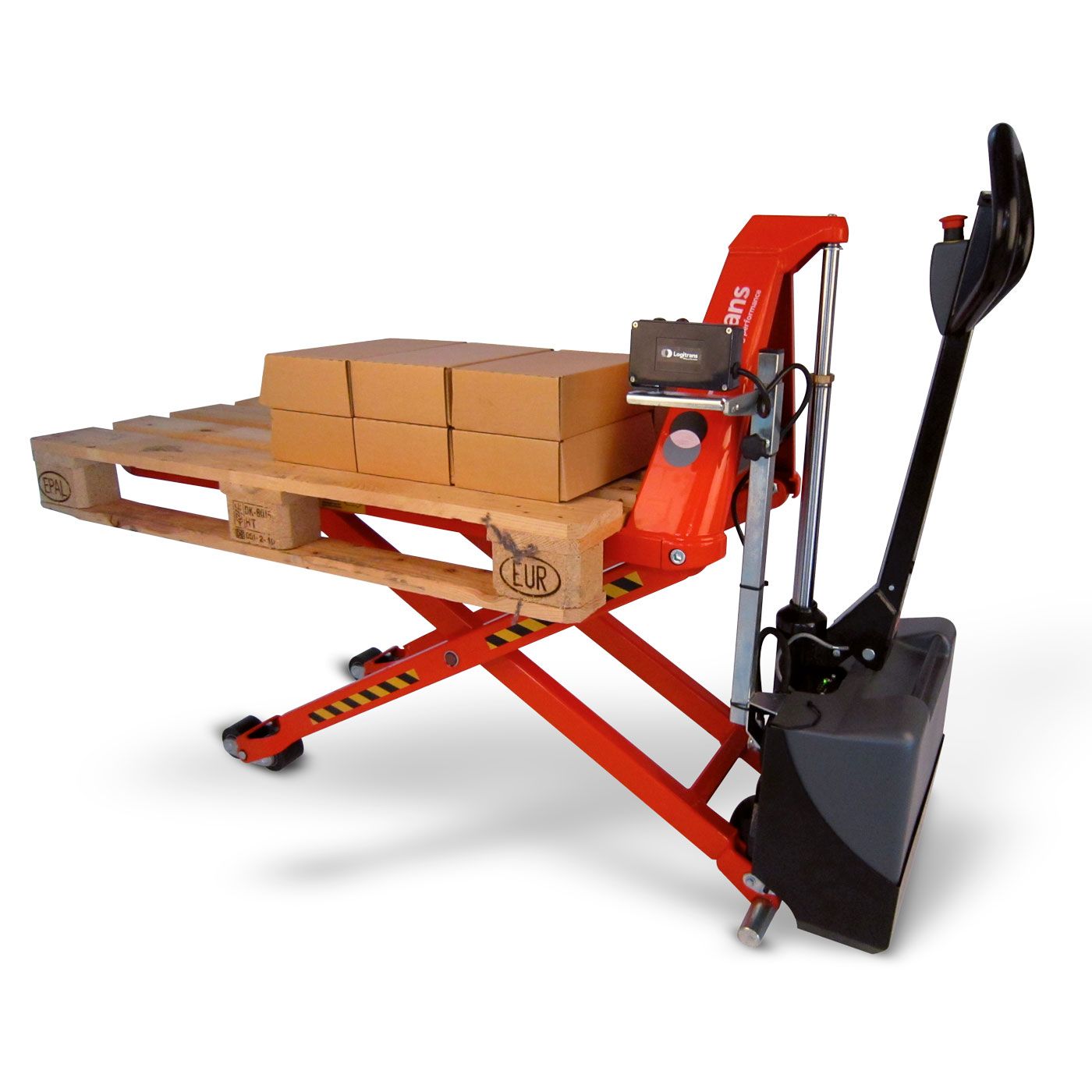

Stacker EHL - Logitrans®, with position control

The Logitrans® EHL scissor lift truck with position control impresses with its quality, safety and effectiveness. It can be used to pick up pallets, transport them easily and conveniently or to load, unload or process material at the correct working height.

Position control:

The ideal ergonomic working height is set on the scissor lift truck and the position control keeps the forks at the set working height with the help of a sensor.  The forks lower when the pallet is loaded and rise when the pallet is unloaded.

All of our scissor lift truck models can be used as a manual pallet truck, lifting table, supply table or workbench. < /span>

Product details: < /span>

• 1500 kg can be transported and lifted up to 400 mm - from 400 mm the load capacity is reduced to 1000 kg
• Automatically functioning supports (HL+EHL) wheels are fully relieved and only start working again after lowering the forks
• wheel equipment black polyamide
• NDIIThane wheels on request at no extra charge! (particularly resistant to sharp-edged objects, e.g. iron filings)

ERGONOMIC

• Automatically maintains altitude
• Ergonomically correct working height
• Prevention of damage
• Protects the user from overload

EFFECTIVENESS

• Very easy programming
• Small dimensions ensure optimal space for maneuvering
• High effectiveness due to improved working conditions
• The fork rises when unloading
• The fork lowers when loading

SECURITY

• A signal lamp flashes when the fork is raised or lowered
• The instant stop stops the fork quickly and precisely
• A limit switch below protects the feet

FACTS

• Press buttons are protected by foil
• Rotatable sensor
• Adjustable time delay and range
• Top limit switch protects the motor
