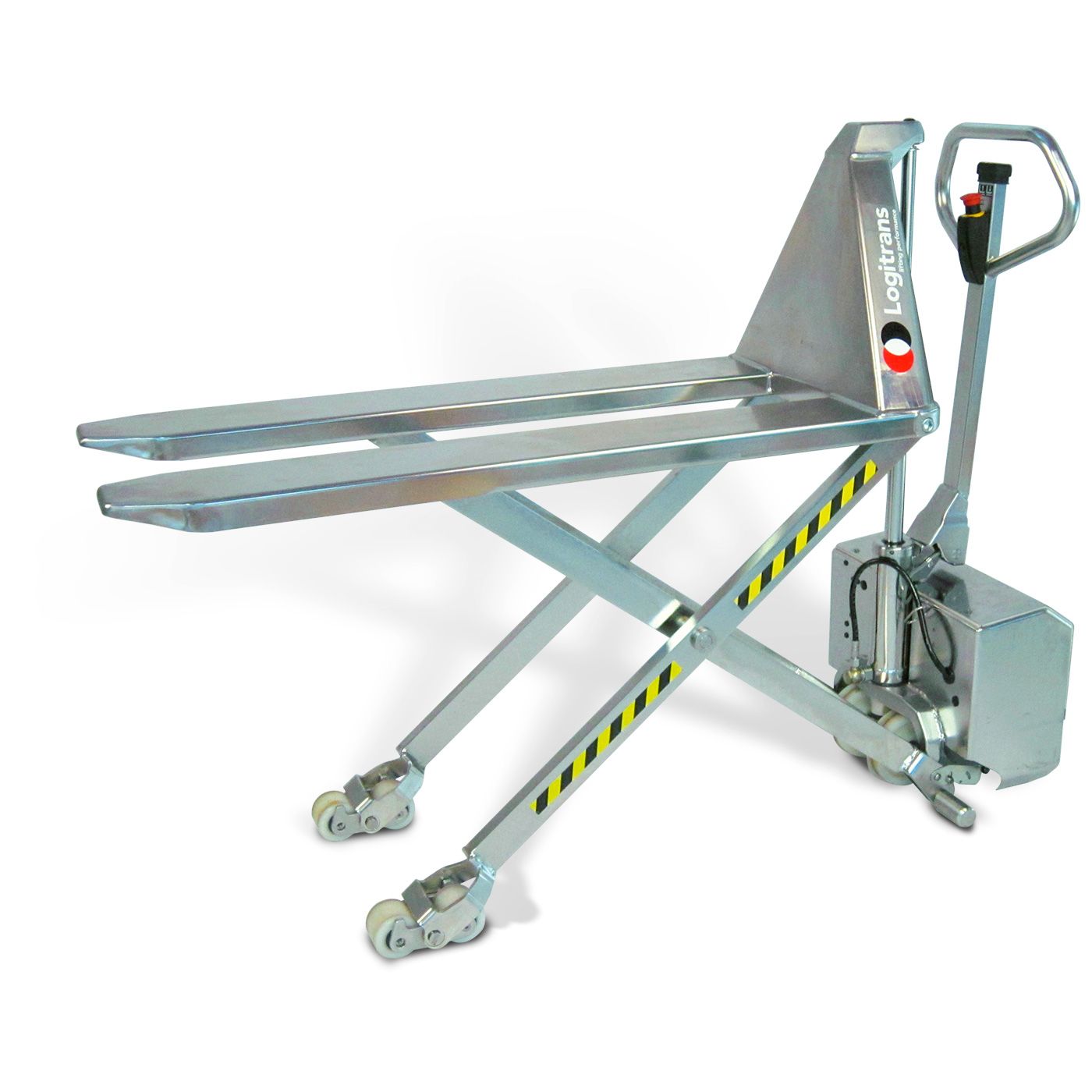

EHL - Logitrans®, stainless steel stacker
EHL - Logitrans®, stainless steel stacker

EHL - Logitrans®, stainless steel stacker

In stock

Item number
UNSPSC

Load-bearing capacity (kg)
1500

Fork length (mm)
1200

Lifting heights min./max. (mm)
85 / 800

Fork width (mm)
163

Steering wheels Ø x width (mm)
150 x 48

Fork rollers Ø x width (mm)
81 x 59,5

Total length x width (mm)
1645 x 540

Load center (mm)
600

Fork load-carrying width (mm)
540
Lifting speed with/without load
0,05 / 0,08

Handle height (mm)
1240

Lowering speed with/without load
0,05 / 0,07

Steering lock
180°

Weight (kg)
132
Grouped product items
Product Name Qty
Related Products


We deliver stock items within
24 hours free of charge*!

*Within Austria from € 250,-

Where special hygiene is required - stainless steel scissor lift truck EHL

The stainless steel Logitrans® scissor lift truck EHL impresses with quality, safety and effectiveness. In areas where special hygiene regulations apply, this stainless steel scissor lift truck is the ideal transport device. It is primarily used in the food industry, in pharmaceutical companies or in medical, chemical or technical areas.

It can be cleaned easily and intensively, has little tendency to react chemically with other substances and ensures permanent corrosion protection in wet or damp areas. Germs or bacteria cannot settle anywhere on the pallet truck.

Product details: < /strong>

  • For HL-RF-PLUS and RF SEMI chassis made of stainless steel AISI 316
  • More acid resistant
  • Glass bead blasted and electropolished fork carriage
  • Optimum cleaning and durability
  • wear-resistant surface
  • Long service life and low maintenance costs
  • Closed fork tines for effective cleaning (no hiding places for bacteria)
  • EHL RF-PLUS
  • IP54
  • Battery cover, drawbar, legs and cylinder housing made of stainless steel
  • with external charger 12 V / 8 Ah (built-in charger for a surcharge!)

HYGIENE

  • The risk of bacterial contamination is minimized
  • Developed for environments with high demands on hygiene
  • Closed fork
  • Easy cleaning

QUALITY

  • Robust construction
  • AISI 316L for the fork carriage
  • Long service life
  • Low maintenance costs
  • Reliable construction of the cylinder
  • ERGONOMIC
  • Ergonomically correct drawbar
  • Raises pallets to correct working height

FACTS

  • Fork chassis, battery cover, drawbar, scissor legs and cylinder housing made of stainless steel
  • For the food and pharmaceutical industry with high demands on hygiene and cleaning options
  • Electric lifting and manual transport


< /p>
