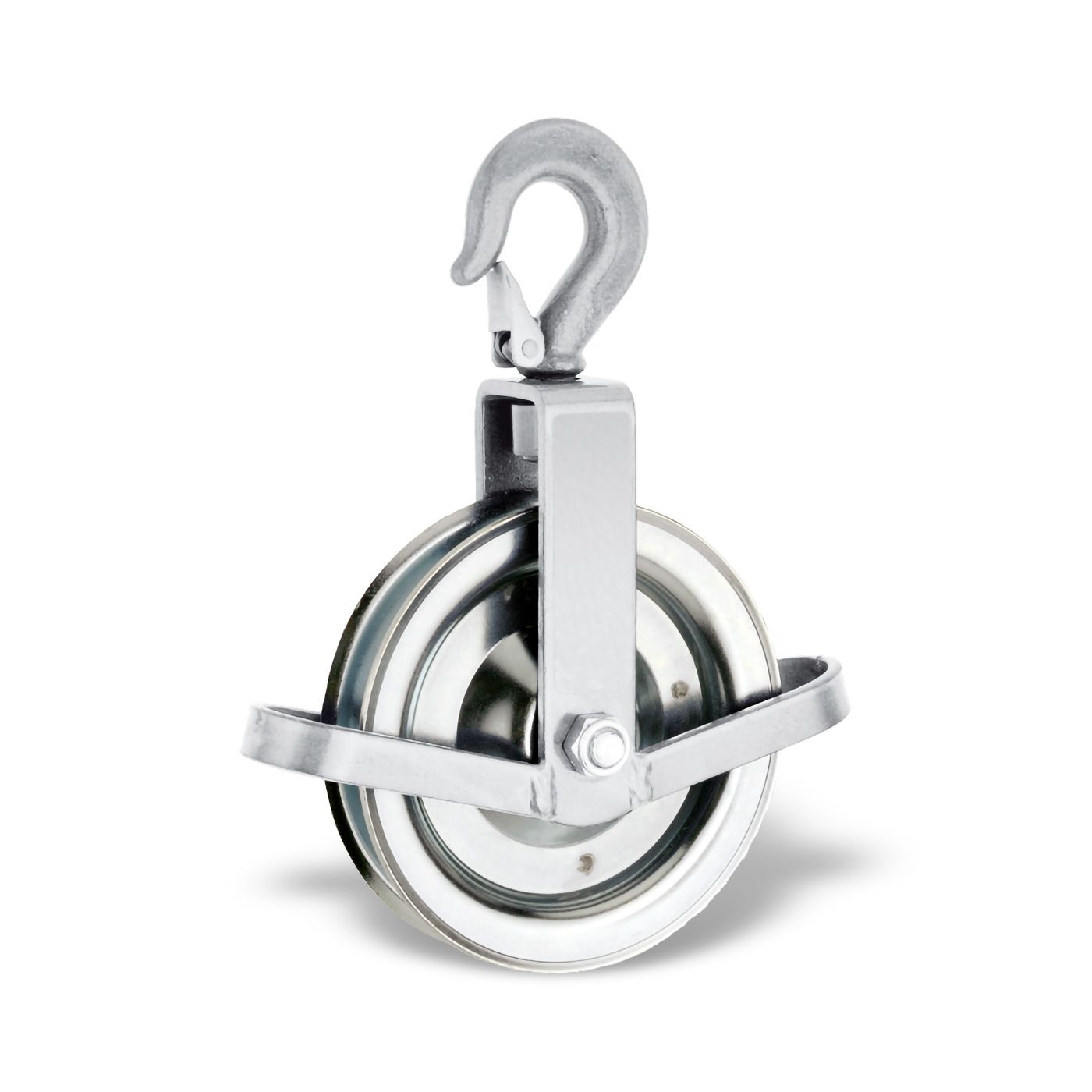

Fiber rope construction rolls

Construction rolls for fiber ropes are used wherever tensile forces have to change direction. For example, when working in agriculture, forestry and construction work, they are used flexibly, easily, quickly and are extremely efficient.
Our construction rolls are characterized above all by their high quality. They have a deep rope groove, which means that the rope is guided in a true-to-track manner.

Please also note:

For all pulleys, the load capacity not only depends on the material, but also on the anchoring in the carrier material!

Product features:

• Roll diameter: 250 mm
• Load capacity on the hook: 250 kg
• Groove for rope Ø: 20 - 25 mm
• groove width: 32 mm
• groove depth: 25 mm
• Load ring for direct attachment to scaffold tubes up to Ø 49 mm (1 ½”)
• Material: galvanized steel
• Bracket galvanized with rotating hook and safety spring
• unbreakable pressed steel wheel with plain bearing, galvanized
• with self-lubricating polyamide bush

depending on model*
