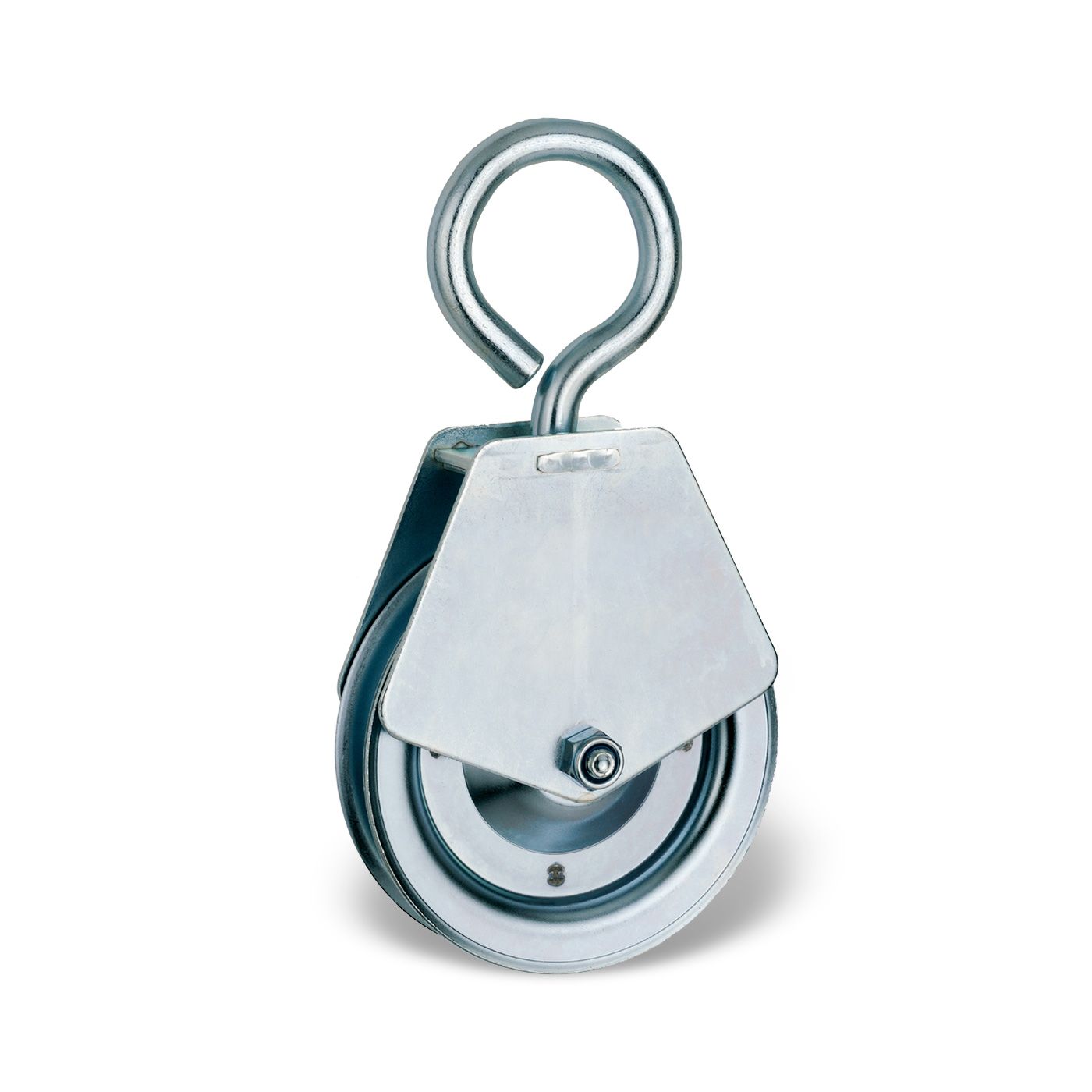

Building draw pulleys with load ring

Building roll with mounting ring

Our assembly rolls are characterized above all by their high quality. They have a deep rope groove, which means that the rope runs true to the line. Assembly pulleys for fiber ropes are used wherever tensile forces have to change direction. For example, when working in agriculture, forestry and construction work, they are used flexibly, easily, quickly and are extremely efficient.

Please also note:

For all pulleys, the load capacity not only depends on the material, but also on the anchoring in the carrier material!

Product features:

• roller diameter*:  140 – 200mm
• groove* for rope Ø: 16 - 25 mm
• Capacity measured for manual operation* : 200 - 250 kg
• Load ring for direct attachment to scaffold tubes up to Ø 49 mm (1 ½”)
• Material: galvanized steel
• Roller with plain bearing

depending on model*
