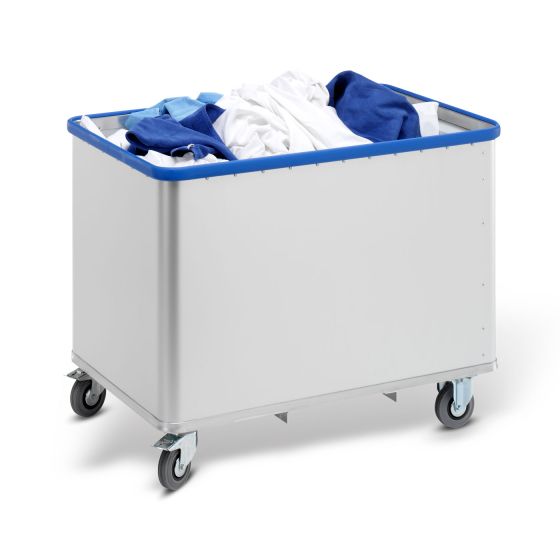

Transport trolley with spring board

The transport trolley with spring floor - for ergonomic handling without bending over.

Back-friendly work is guaranteed with our spring-loaded trolleys. Due to the constant loading and unloading height, the load can always be removed or stacked in an ergonomically favorable position. Of course, your load is also treated with care.
The spring-loaded trolley enables you to work quickly, efficiently and without tiring and prevents incorrect strain on your back and spinal disorders. In addition, the spring force can also be easily and flexibly adjusted to your needs afterwards.

This transport trolley is indispensable in hospital and laundry logistics, in old people's homes, in libraries, in the automotive industry, etc., as well as in intralogistics. In addition, it is particularly easy to clean and is used wherever absolute hygiene standards must be observed.

Product description:

• Smooth and anodized surface
• Walls and aluminum profiles are connected by clinching in a form-fitting manner and are therefore extremely stable
• Smooth side walls reduce the friction of the load, the spring-loaded wagon reacts immediately to any change in weight
• Circumferential, very stable edge profiles at the top and bottom of the trolley edges
• Circumferential, flexible, abrasion-resistant PVC bumper on the upper edge of the car
• Parallel and torsion-free guidance of the lowerable floor, even with one-sided loading, thanks to 8 covered ball bearings
• Constant loading and unloading height, the weight of the load causes the floor to drop continuously. When the wagon is unloaded, the ground rises slowly
• Sturdy undercarriage carrier made of galvanized steel
• Wheel housing made of galvanized steel, wheels with non-marking solid rubber tyres, roller bearings and thread guard
• Roller arrangement B, D, or A
• Castor arrangement B: 2 swivel castors with wheel brakes and 2 fixed castors - wheel brakes on the swivel castors, in accordance with European standard EN 1757-3

For model D 1408 classic:

• Spring force: 25 kg
• Without PVC_bumper
• Conversion of spring force and chassis not possible
• Castor arrangement D: 4 swivel castors, 2 of which have brakes
• No option possible

For model D 1408/350 A SC:

• Castor arrangement A: 2 swivel and 2 fixed castors, arranged in a diamond shape
• Wheels with thermoplastic rubber tread, non-marking, precision ball bearing

Custom designs:

If you need a special size here, just let us know. We always try to realize customer requests.
