156/80

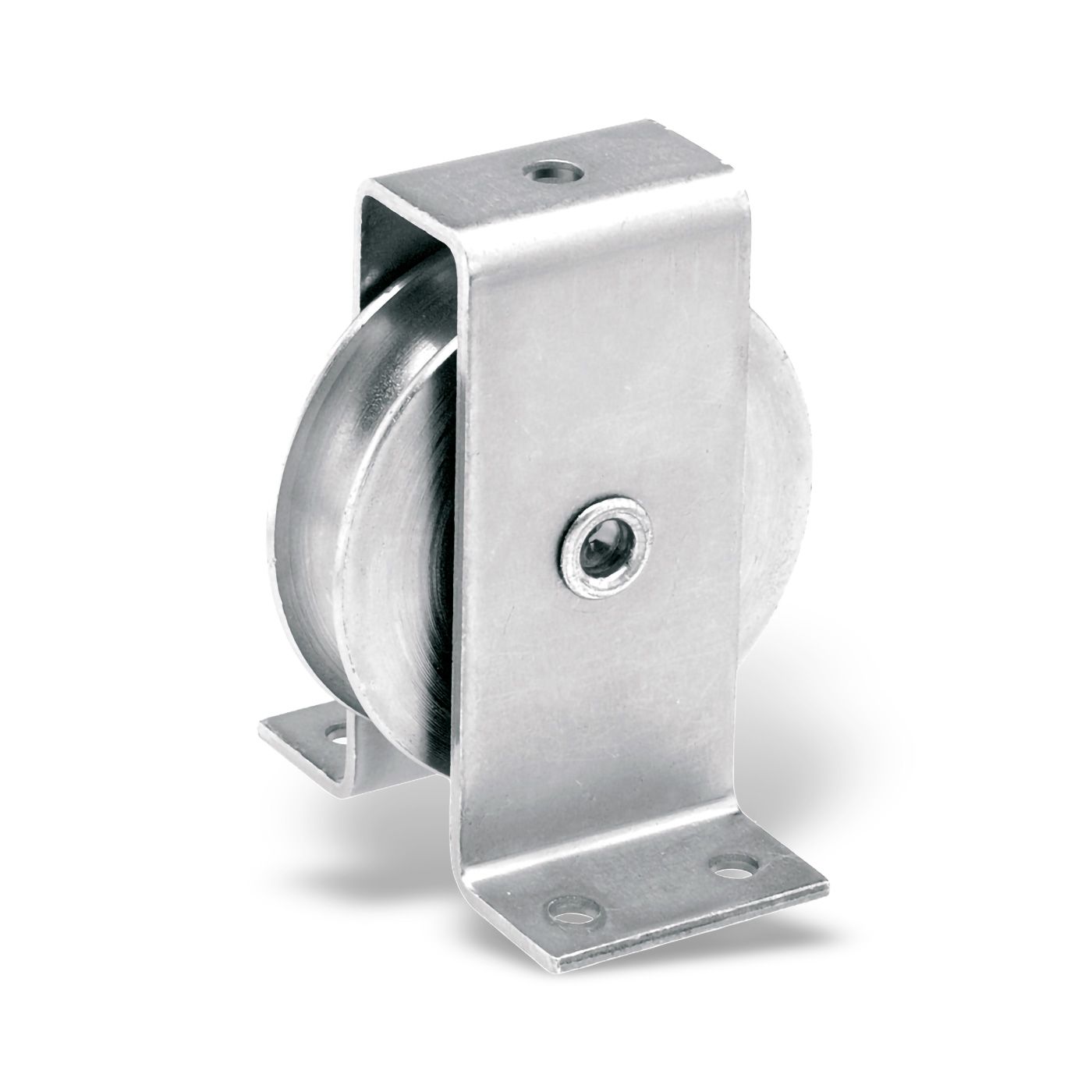

Standing sheaves made of steel/cast iron for fiber ropes

Standing pulleys for fiber ropes are used wherever tensile forces have to change direction. These high-quality pulleys keep ropes reliably and securely in place and are an important component in all work processes involving ropes.

Our steel casters are mainly used for assembly work and construction companies.

But please also note:

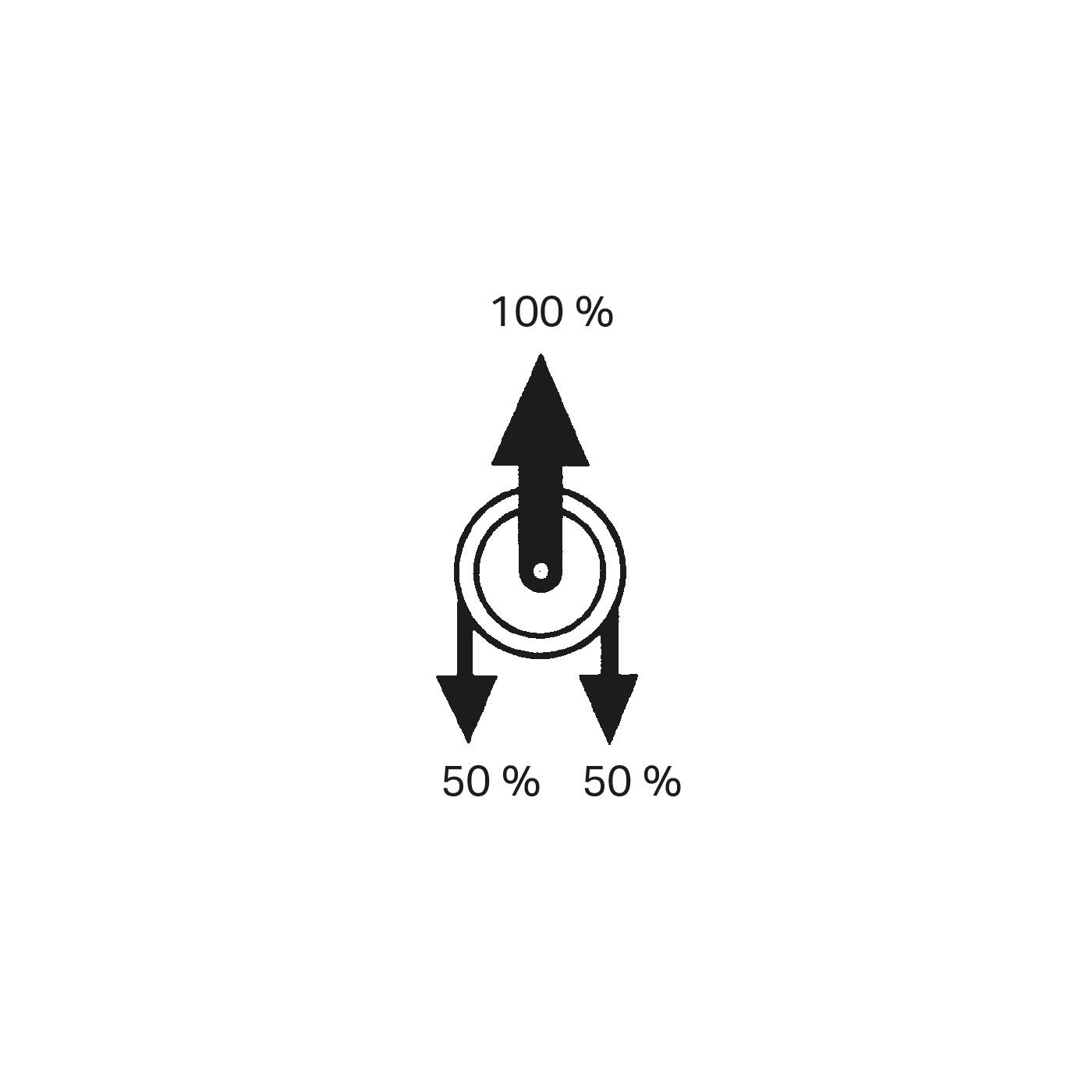

With all pulleys, the load capacity is not only dependent on the material, but also on the anchoring in the carrier material dependent!

Product features:

• Roller diameter: 80 mm
• groove  Ø:  12mm
• Load capacity: 90 kg
• screwing surface: 74x50 mm

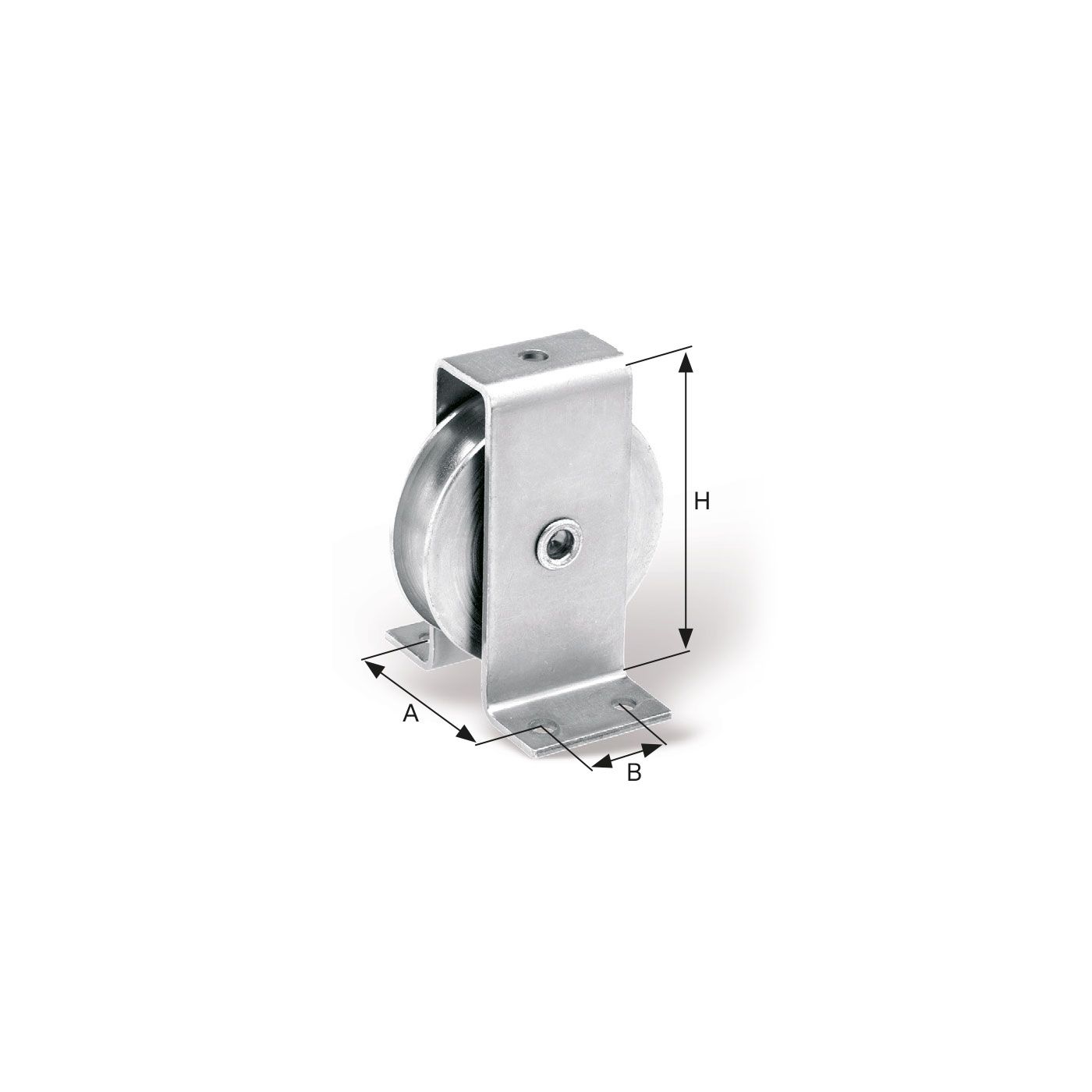

• Dimensions (H / A / W ): 98 / 54 / 30 mm
• For screws Ø: 6 mm
• Material: steel
• Bar: galvanized steel
• Roller with plain bearing

depending on model*
