160/150

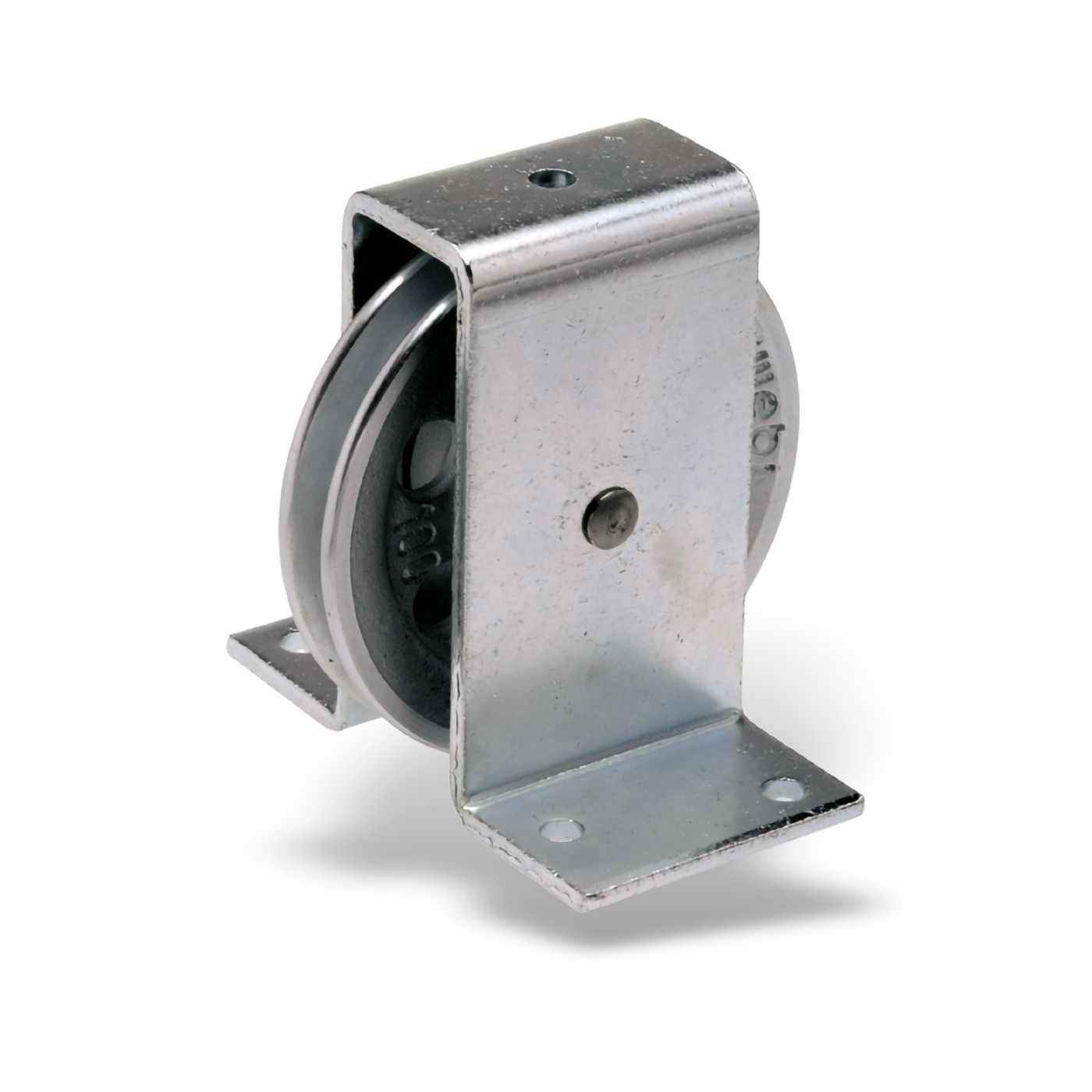

Standing pulley for wire rope - steel/cast iron

Our steel standing pulleys are high-quality pulleys for wire ropes. They hold ropes reliably and securely in the guide and are an important component in working processes with wire ropes. Find the ideal pulley for your application at Gesa.

Our standing casters are equipped with a ball bearing and a galvanised, stable steel bracket. These wire rope pulleys are mainly used in construction companies, cable cars or in forestry.

Product features:

• Roll diameter: 150 mm
• Groove for wire rope: 6.5 mm
• Load capacity: 500 kg
• screwing surface: 115x80 mm

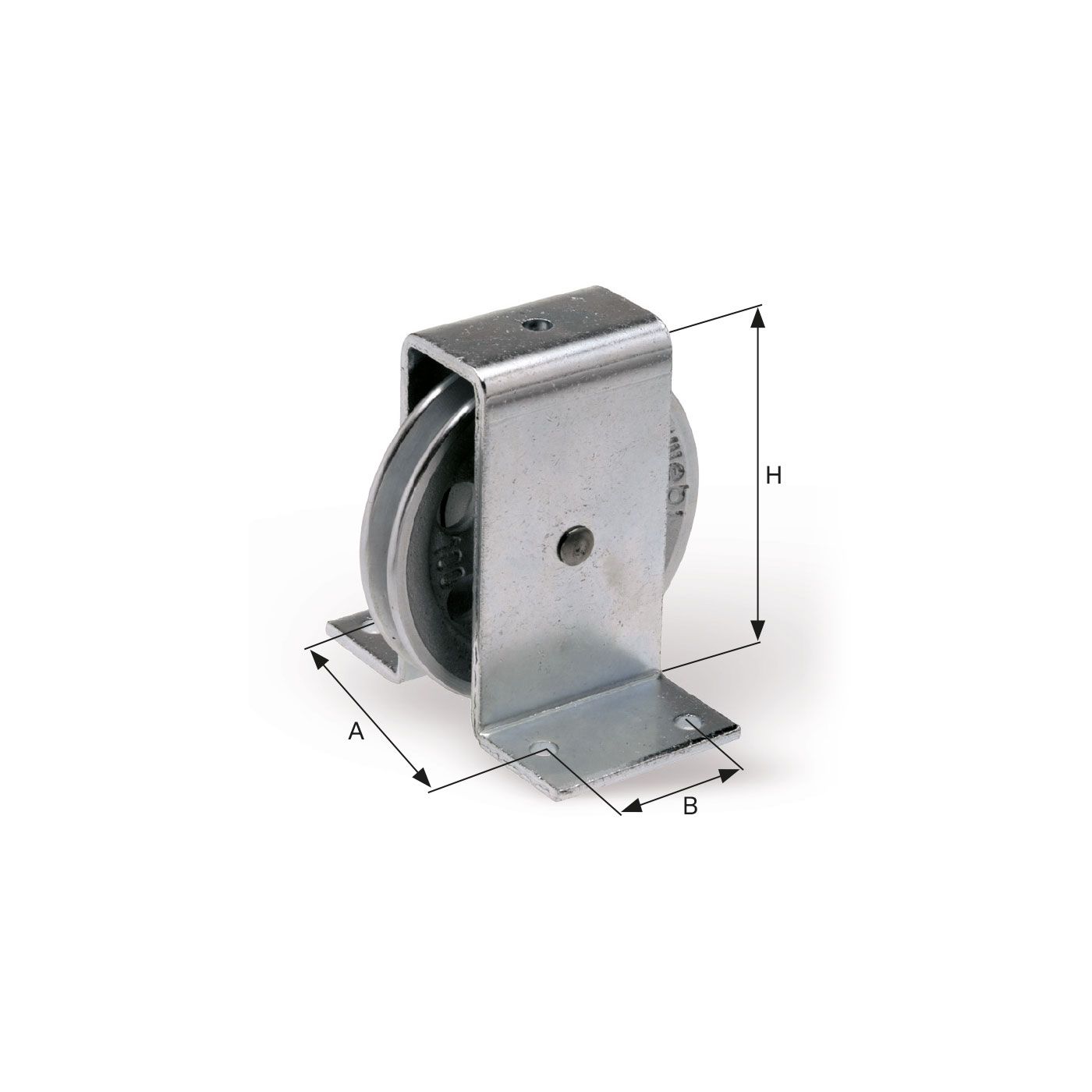

• Dimensions (A / B / H): 90 / 56* / 160 mm
• For screws Ø 10 mm
• Weight per piece: 2.7 kg
• Material: steel/cast iron
• Roller with ball bearing, galvanized
• Roller and bracket steel, galvanized*Perforation offset by 10 mm

depending on model*
