160/100

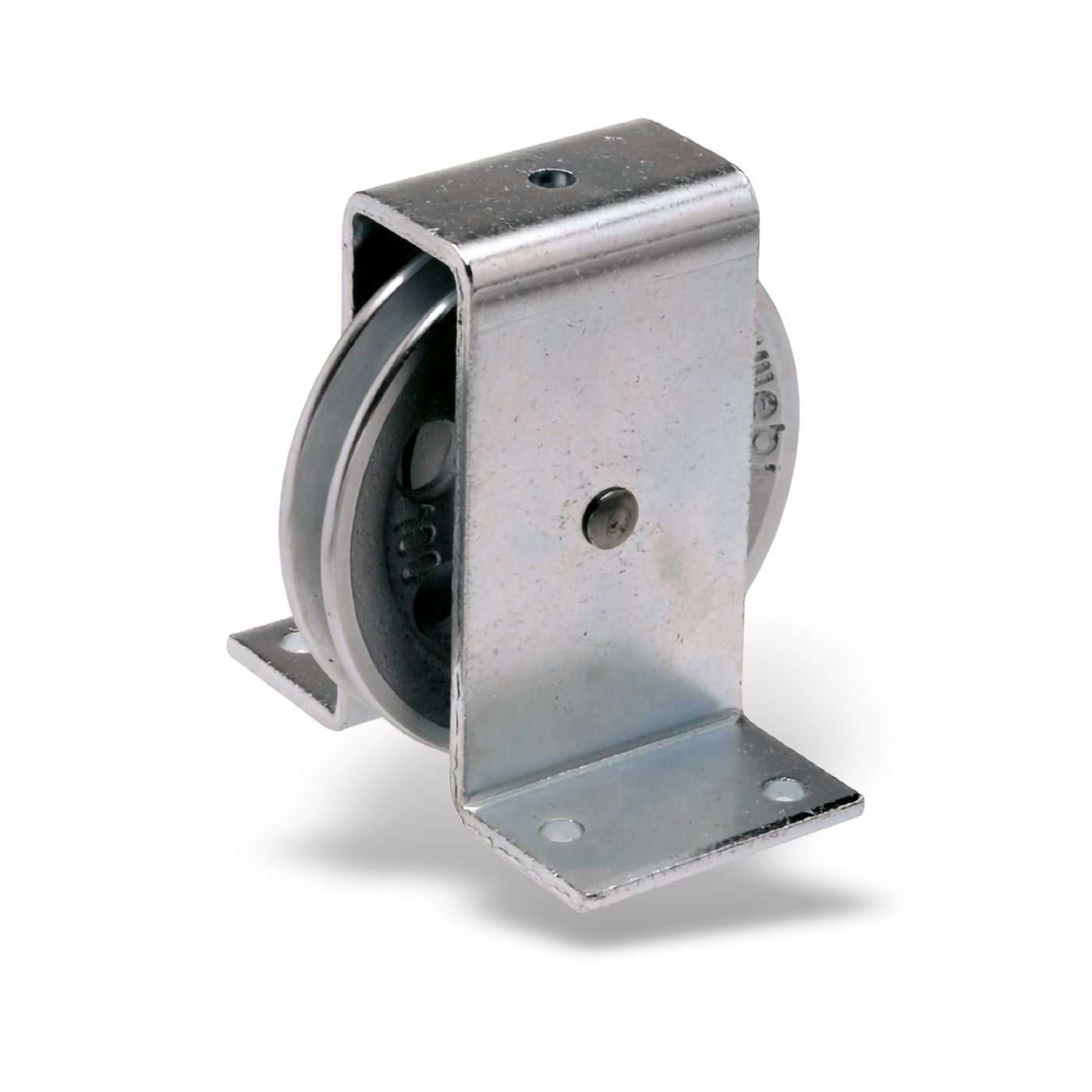

Standing pulley for wire rope - steel/cast iron

Our steel standing pulleys are high-quality pulleys for wire ropes. They hold ropes reliably and securely in the guide and are an important component in working processes with wire ropes. Find the ideal pulley for your application at Gesa.

Our standing casters are equipped with a ball bearing and a galvanised, stable steel bracket. These wire rope pulleys are mainly used in construction companies, cable cars or in forestry.

Product features:

• Roll diameter: 100 mm
• Groove for wire rope: 4 mm
• Load capacity: 300 kg
• screwing surface: 110x60 mm

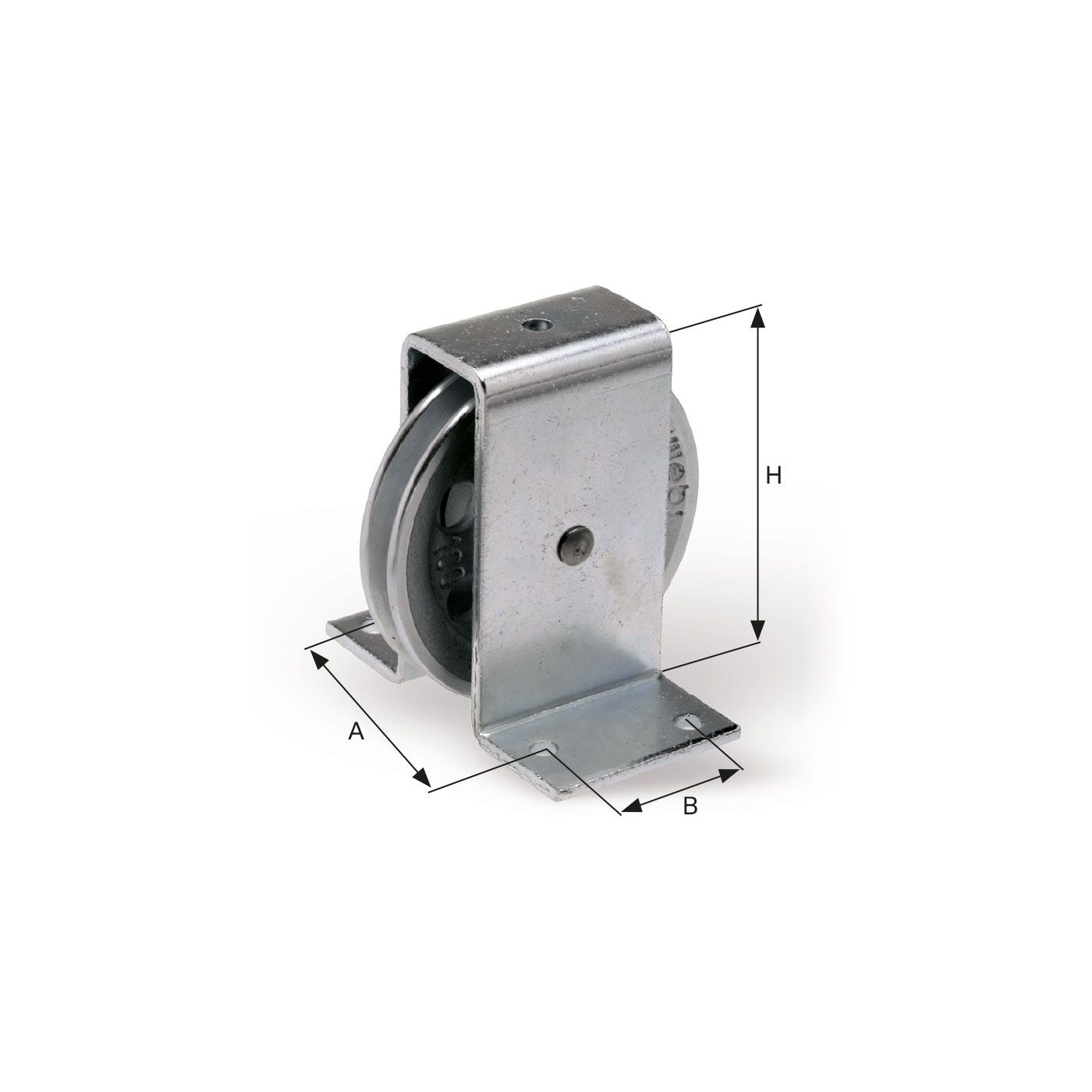

• Dimensions (A / B / H): 78* / 42 / 109 mm
• For screws Ø 7 mm
• Weight per item: 1.1 kg
• Material: steel/cast iron
• Roller with ball bearing, galvanized
• Roller and bracket steel, galvanized*Perforation offset by 10 mm

depending on model*
