156P/50

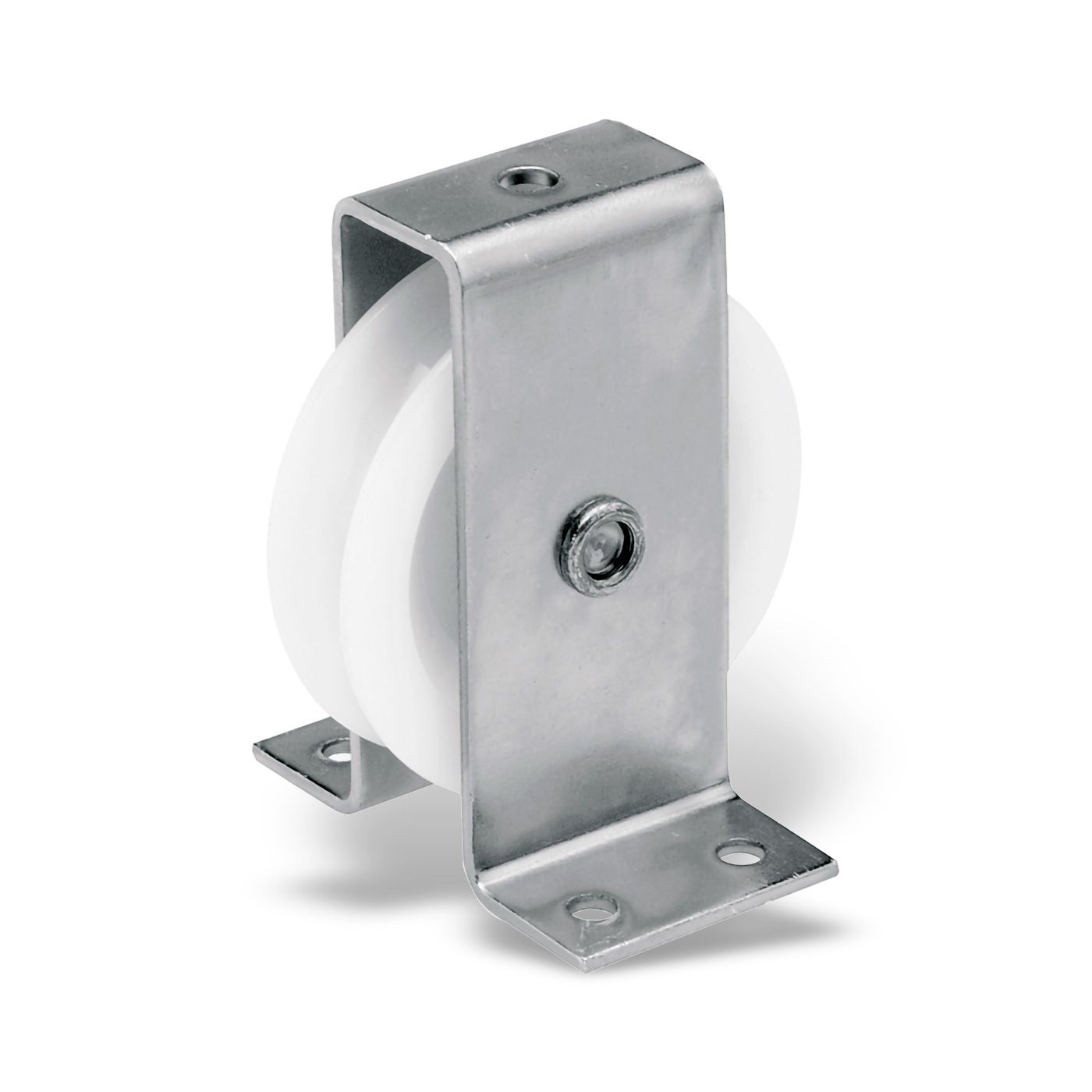

Standing pulleys made of polyamide for chemical fiber ropes

Standing pulleys for fiber ropes are used wherever tensile forces have to change direction. These high-quality pulleys keep ropes reliably and securely in place and are an important component in all work processes involving ropes.

Our standing casters made of polyamide are mainly used in assembly work and construction companies.

Please also note:

For all pulleys, the load capacity not only depends on the material, but also on the anchoring in the carrier material!

Product features:

• roller diameterD : 50  mm
• groove for rope Ø: 8 mm
• Load capacity: 40 kg
• screwing surface: 60x35 mm
• Dimensions (H / A / W): 66 / 42 / 20 mm
• For screws Ø: 5 mm
• Material: Polyamide
• Bar: galvanized steel
• Roller with plain bearing

depending on model*
