116P/50

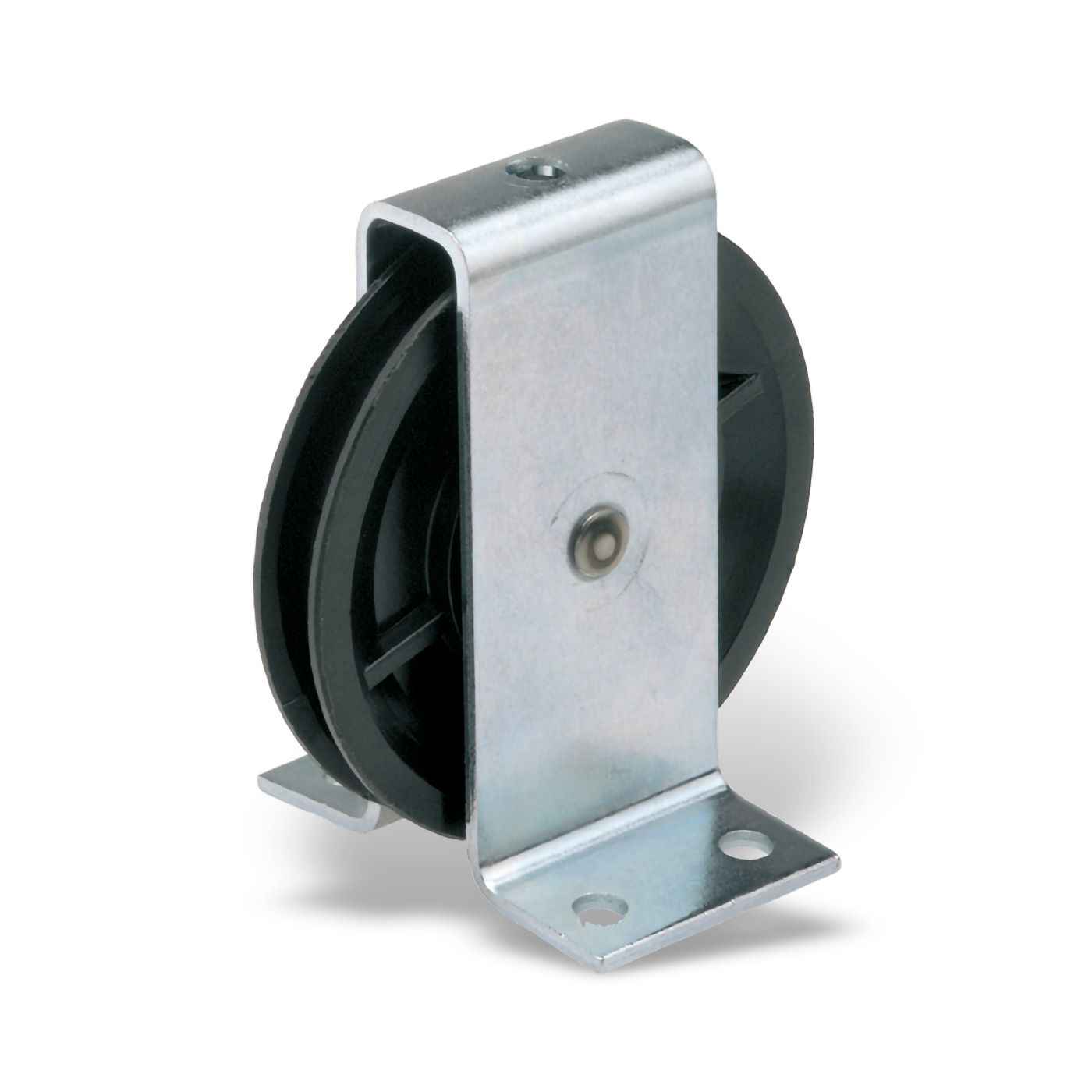

Rope pulleys for wire ropes - standing pulley made of polyamide

Our plastic standing pulleys are high-quality pulleys for wire ropes. They hold ropes reliably and securely in the guide and are an important component in working processes with wire ropes. Find the ideal pulley for your application at Gesa.

Our standing roll made of Ultramid is equipped with a ball bearing and a galvanised, stable bracket. These wire rope pulleys are mainly used for assembly work.

Product features:

• Roll diameter: 50 mm
• Groove for wire rope: 3 mm
• Load capacity: 60 kg
• screwing surface: 57x35 mm

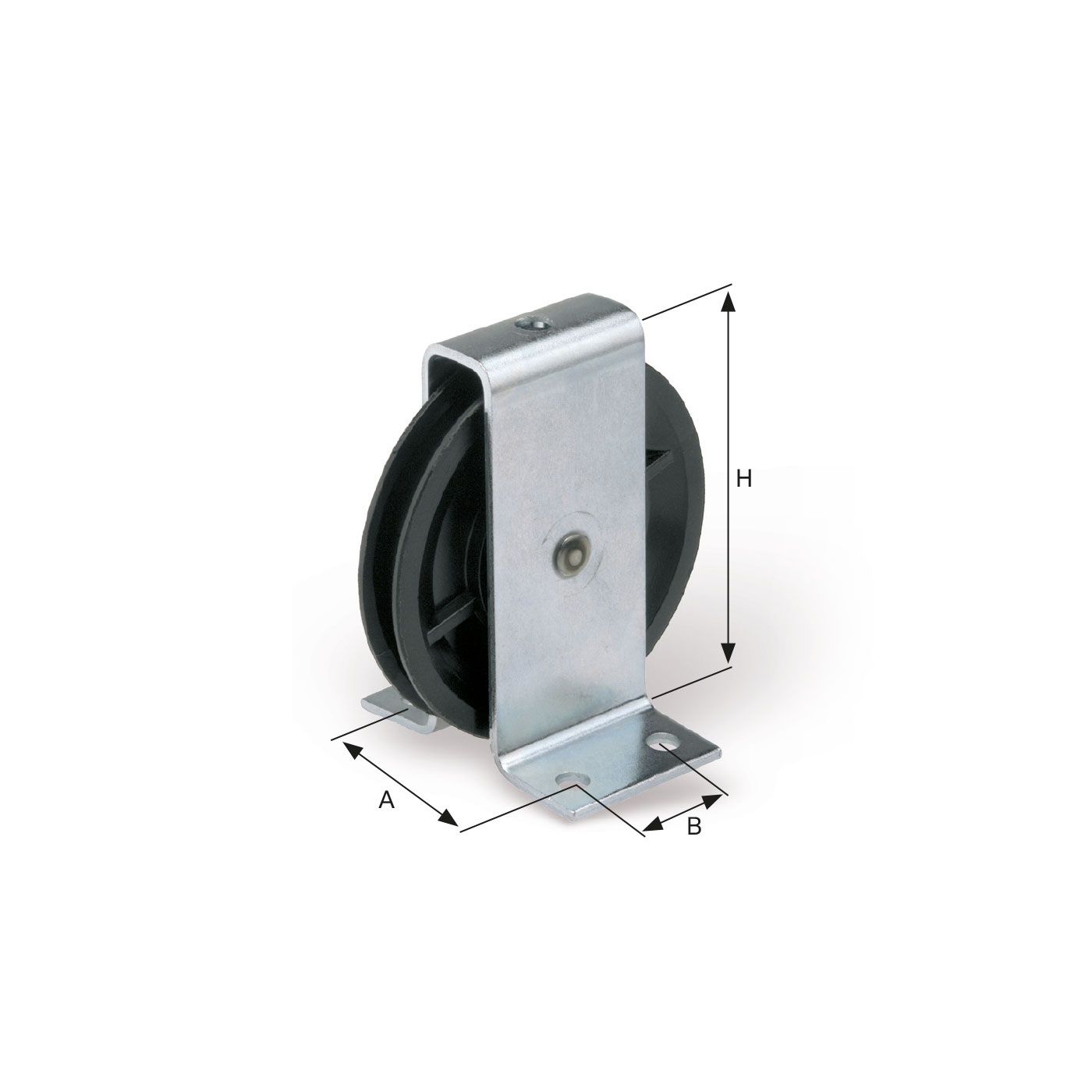

• Dimensions (A / B / H): 41 / 20 / 56 mm
• for screws Ø : 5 mm
• Weight per item: 0.14 kg
• Material: Polyamide/Ultramid
• Ball bearings
• Bracket galvanized steel
