166P/50

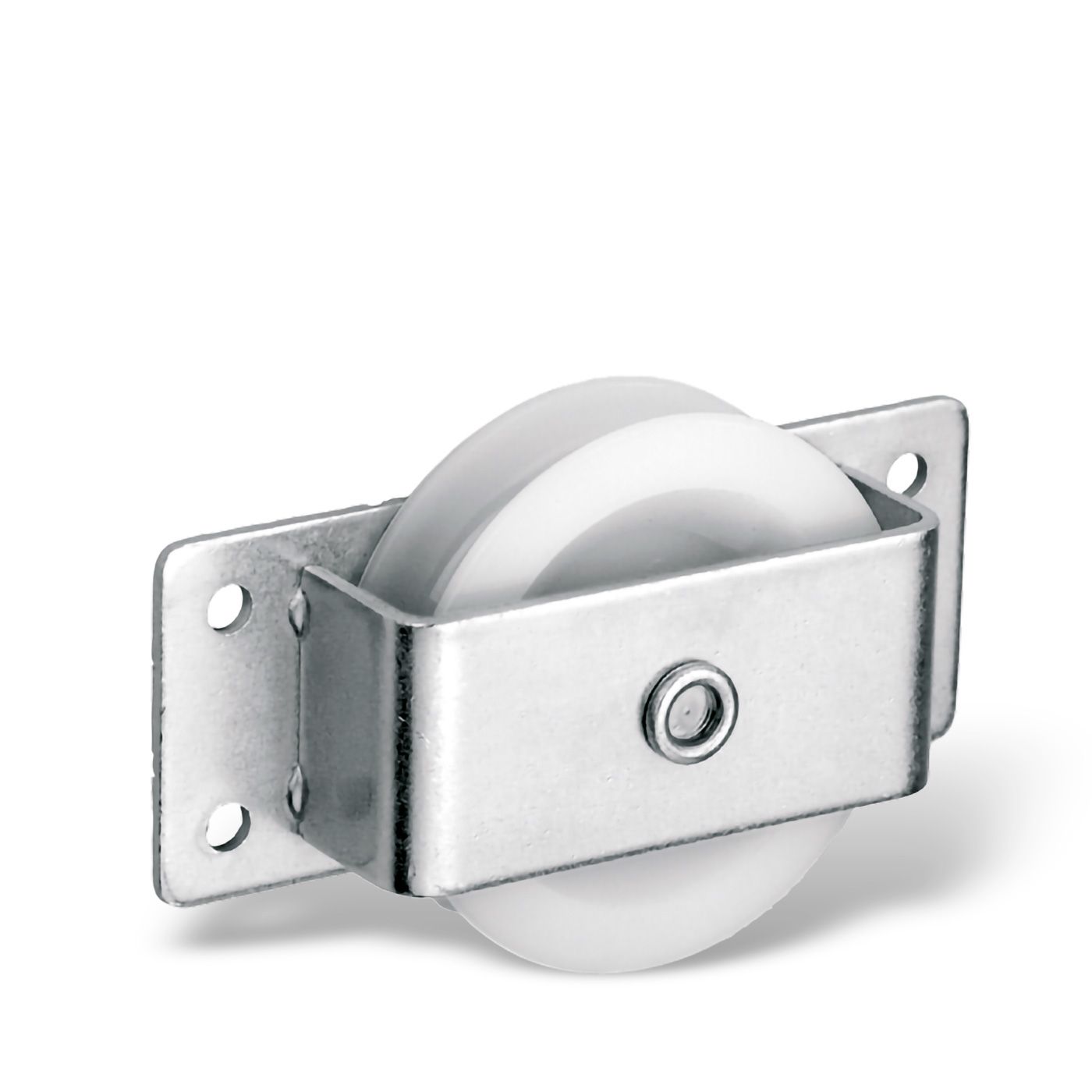

Side rollers made of polyamide for chemical fiber ropes

Side pulleys for fiber ropes are used wherever tensile forces have to change direction. These high-quality pulleys keep ropes reliably and securely in place and are an important component in all work processes involving ropes.

Our side rollers made of polyamide are mainly used for assembly work and construction companies.

Please also note:

For all pulleys, the load capacity not only depends on the material, but also on the anchoring in the carrier material!

Product features:

• roller diameter D: 50 mm
• groove for rope Ø: 8 mm
• Load capacity: 40 kg
• Mounting plate: 90x35 mm

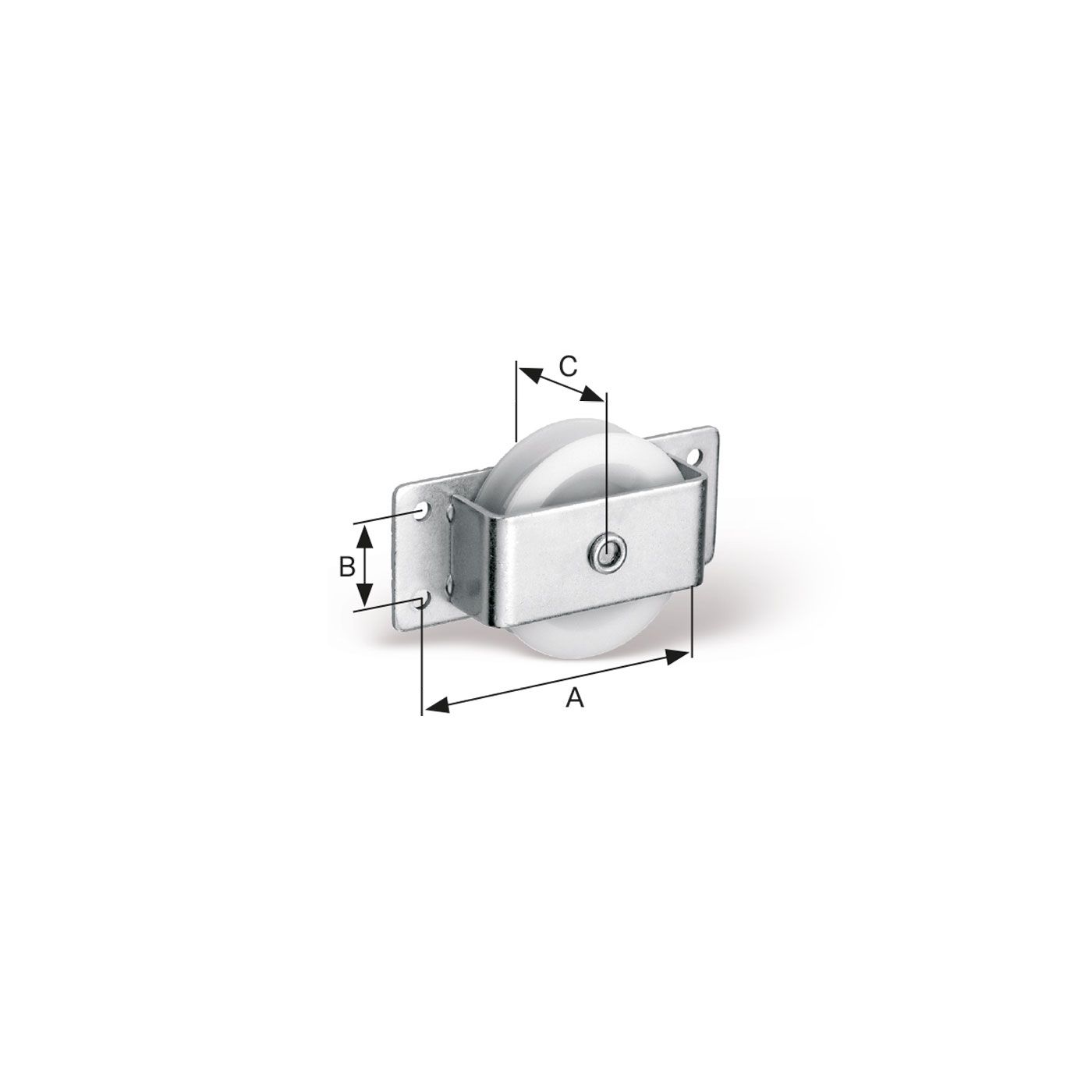

• Dimensions (A / B / C): 74 / 20 / 23 mm
• For screws Ø: 5 mm
• Material: Polyamide
• Bar: galvanized steel
• Roller with plain bearing

depending on model*
