120P/50

Side pulley for wire ropes – Ultramid

Our plastic side pulleys are high-quality pulleys for wire ropes. They hold ropes reliably and securely in the guide and are an important component in working processes with wire ropes. Find the ideal pulley for your application at Gesa.

Our side roll made of Ultramid is equipped with a ball bearing and a galvanised, stable steel bracket. These wire rope pulleys are mainly used for assembly work.

Product features:

• Roll diameter: 50 mm
• Groove for wire rope: 3 mm
• Load capacity: 60 kg
• Mounting plate: 90x35 mm

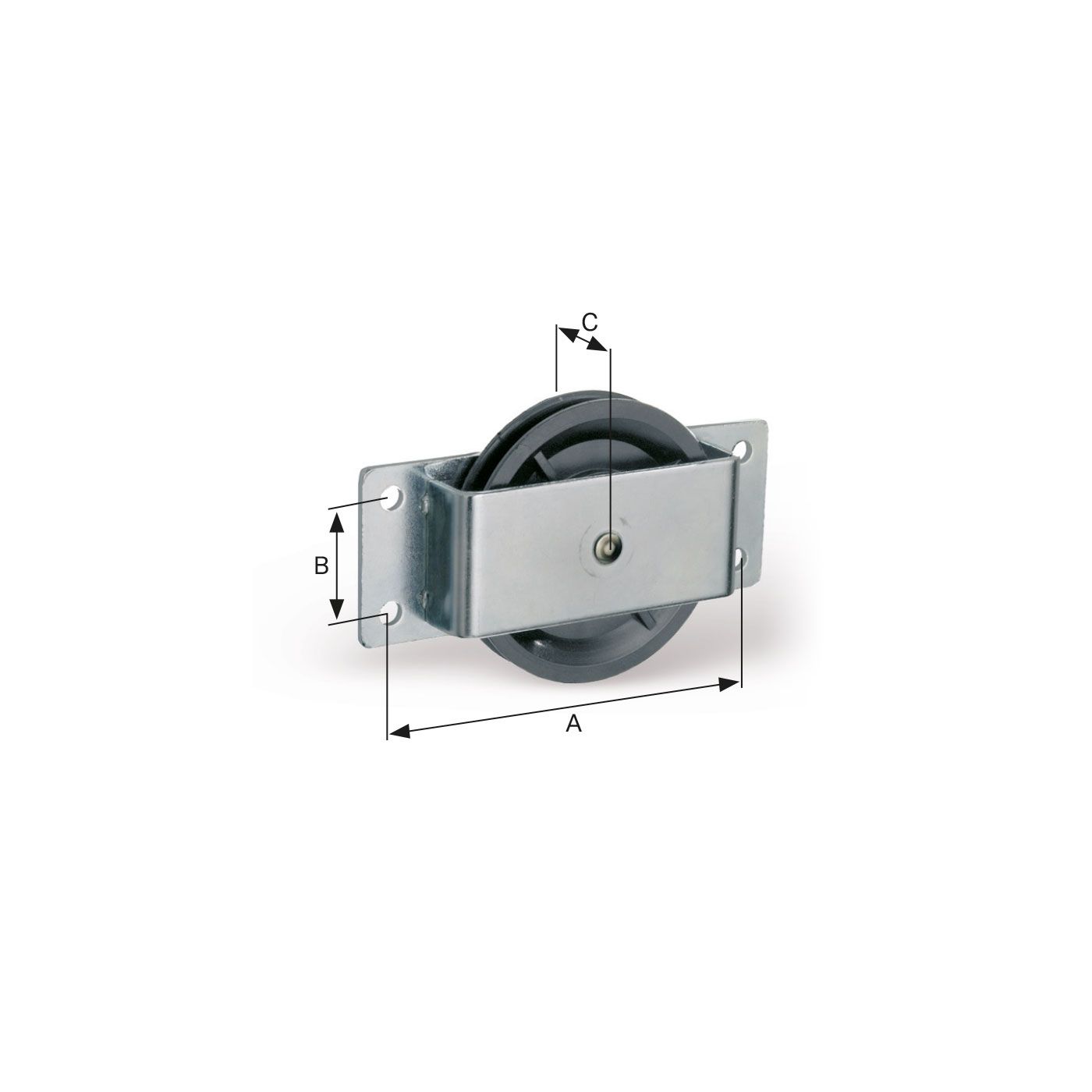

• Dimensions (A / B / C): 74 / 20 / 21 mm
• for screws Ø : 5 mm
• Weight per piece: 0.15 kg
• Material: Ultamid
• Ball bearings
• Bracket galvanized
