190P/20

Rope pulleys made of polyamide PA 6 - for chemical fiber ropes and hemp ropes

Our polyamide pulleys are high-quality pulleys for hemp and chemical fiber ropes. They hold ropes reliably and securely in the guide and are an important component in all work processes with ropes. Find the ideal pulley for your application at Gesa.

Hemp and chemical fiber rope pulleys are mainly used in assembly work, in larger industrial plants, in forestry, in agriculture or in cable car systems. Our pulleys made of polyamide PA 6 are mainly used for assembly work.

Please also note:

For all pulleys, the load capacity not only depends on the material, but also on the anchoring in the carrier material!

Product features:

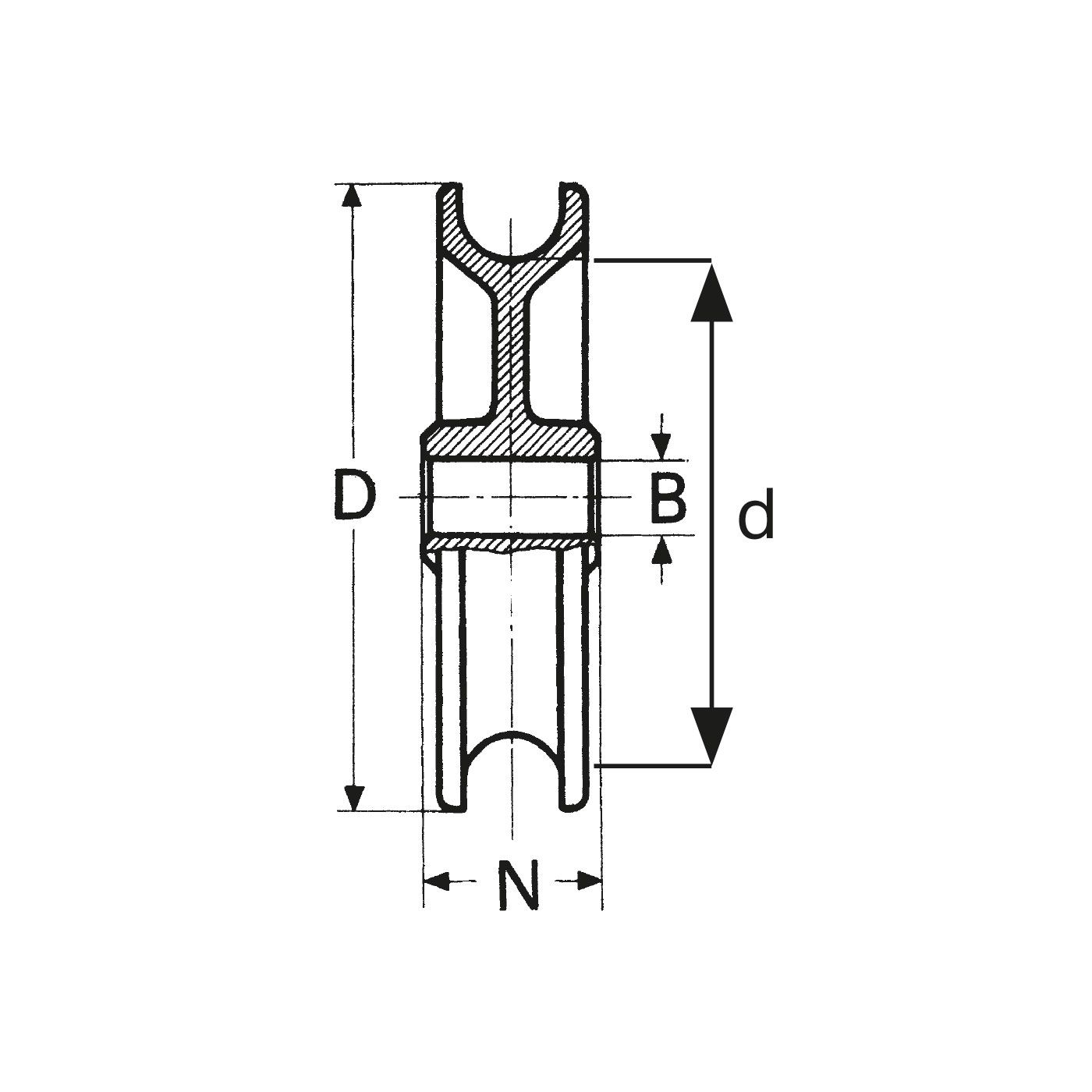

• roller diameter D/d : 20  mm / 11 mm
• groove for rope Ø: 4 mm
• Load capacity: 20 kg
• Installation width N: 8 mm
• Bore B: 5.2 mm
• Material: Polyamide PA 6 white
• Roller with plain bearing

depending on model*
