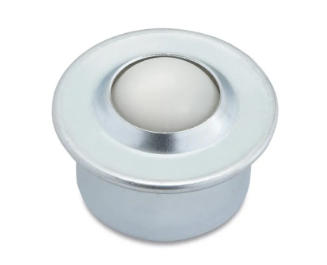

SM 15 KU
Price On Demand
exkl. MwSt./Stk.
5% Online-Rabatt
You save 0 €
Available immediately
SM 15 KU
Item number
6572
Part description
SM 15 KU
UNSPSC
24101701
Outside Ø (mm)
31
Housing Ø (mm)
24
Ball Ø (mm)
15,8
Load capacity dynamic (kg)
10
Ball bearing housing material
Sheet steel, galvanized
Ball material
Plastic
Weight (kg)
0,026
Overhang height (mm)
9,5
SM 15 KU
Price On Demand
5% Online-Rabatt
You save 0 €
Available immediately
Price On Demand
exkl. MwSt./Stk.
5% Online-Rabatt
You save 0 €
Available immediately
We deliver stock items within
24 hours free of charge*!
*Within Austria from € 250,-

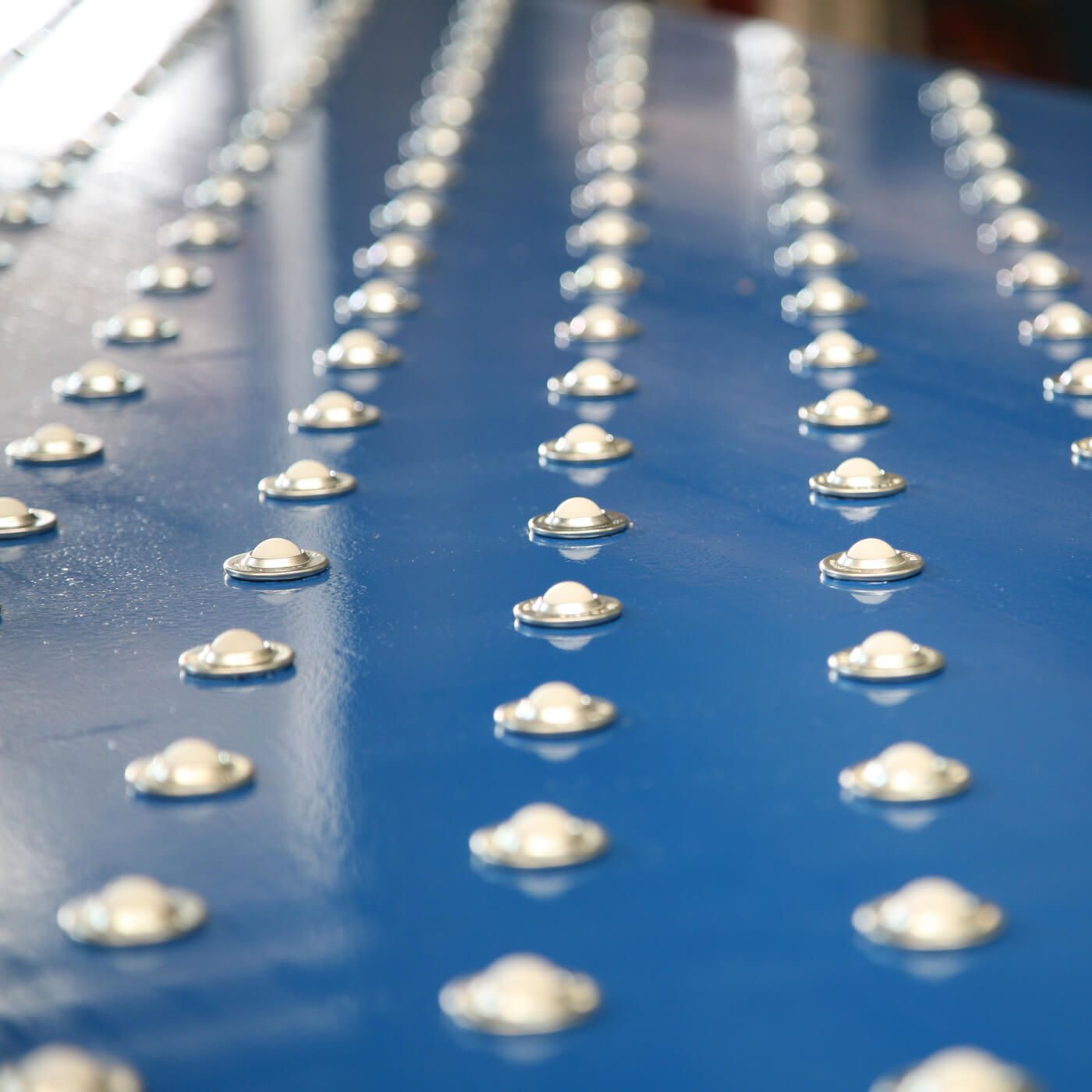

Ball transfer units with sheet steel housing and plastic ball
galvanized sheet steel housing
Ball transfer unit with sheet metal cover
Ball polyamide 15 mm
D = 24
D1 = 31
H = 21
h = 9.5
Load capacity 10 kg
All load capacity specifications apply to use with the ball in the upright position, with overhead installation the load capacity is reduced. On request, seals for higher requirements can also be used at an additional cost.
