ROLLTAINER ADB BASIC 5-SEITIG MIT 2 ZWB

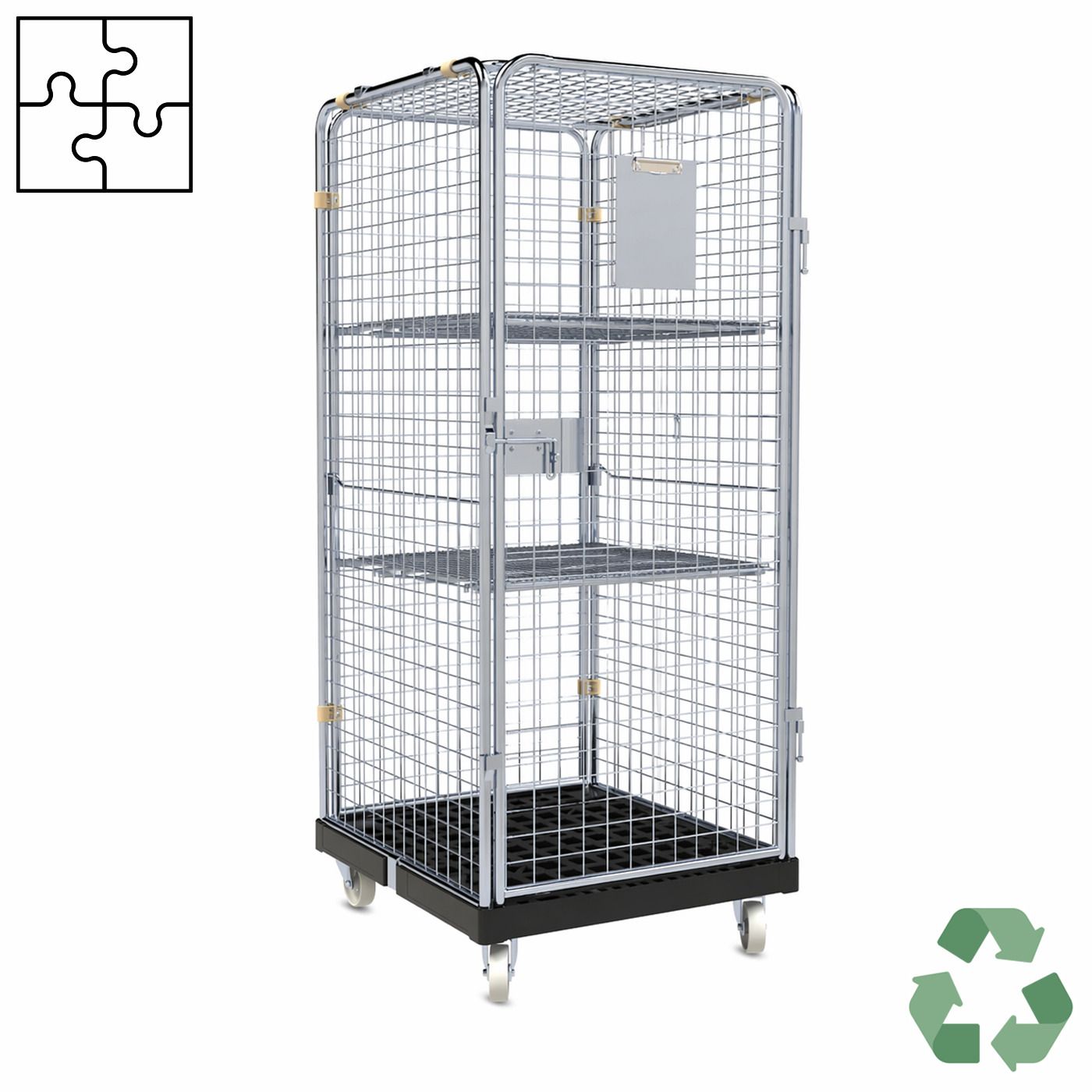

Ecoflex Modular Roll Container System – Base Platform with 4 Side Panels, Top Grid and 2 Intermediate Shelves

Maximum protection and structure across multiple levels

This version of the Ecoflex modular system combines the robust base platform with four side panels, a top grid, and two intermediate shelves. The result is a nearly fully enclosed, multi-level transport solution that ensures maximum protection and highly structured organization of goods.

Ideal for applications where items need to be securely contained, clearly separated, and efficiently handled across multiple levels.



Product components

This configuration consists of:

Ecoflex base platform

• Load capacity up to 500 kg
• Dimensions: 724 × 815 × 192 mm
• Platform made from recycled plastic
• Wheel body made of polypropylene
• Wheels Ø 108 mm
• 2 swivel castors / 2 fixed castors
• fully compatible with the Ecoflex modular system

4 side panels (fully enclosed)

• height: 1350 mm
• width: 790 mm
• surface: galvanized
• provide complete enclosure of the load
• prevent goods from slipping or falling
• ideal for loose, sensitive, or higher-value goods
• robust and durable construction
• easy integration into the Ecoflex system

Top grid

• adds upper protection
• prevents goods from falling out from above
• increases transport safety during movement
• durable and stable design
• easy installation

2 intermediate shelves

• dimensions: 710 × 778 mm
• suitable for 2-, 3-, or 4-sided configurations
• reinforced with 3 flat steel bars
• create two additional loading levels
• improve organization and space utilization
• stable and durable design
• quick and easy installation



Maximum efficiency in daily operations

The combination of a closed design and two intermediate shelves allows goods to be clearly structured across multiple levels. Items can be separated, organized, and picked efficiently, improving workflow and reducing handling errors.

At the same time, the 5-sided configuration ensures that goods remain securely contained – even during movement, on uneven surfaces, or in demanding daily operations.

This setup delivers maximum protection and optimal operational efficiency.

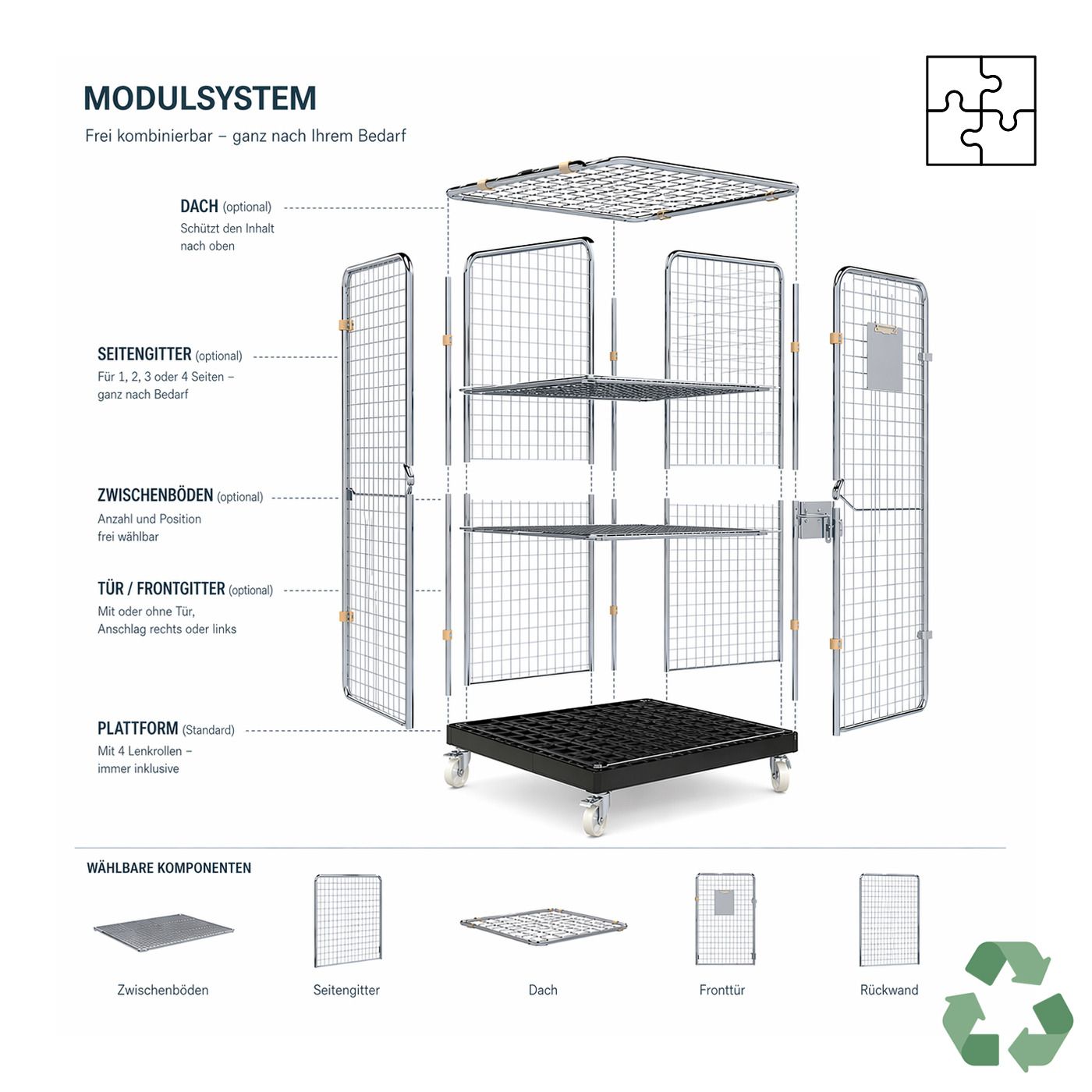

Part of the Ecoflex modular system

This configuration represents one of the most advanced solutions within the Ecoflex modular system, combining protection, stability, and structure at the highest level.

At the same time, the system remains flexible: the roll container can be further adapted at any time – for example with doors for controlled access or additional components depending on your requirements.

This allows you to build a system that evolves with your operations.

Ecoflex adapts to your material flow – modular, flexible, and future-proof.



Your benefits at a glance

Maximum all-around protection
4 side panels and top grid fully secure the load.

Highest level of organization
Two shelves allow clear separation and structured storage.

Efficient order picking
Multi-level design improves speed and workflow efficiency.

Optimized space utilization
Maximum use of available transport volume.

High load capacity
Base platform supports up to 500 kg.

Robust & durable
Recycled plastic platform and galvanized steel construction for daily use.

Expandable system
Fully compatible with all Ecoflex components.



Typical applications

• Warehousing and intralogistics
• Order picking and route preparation
• Production and internal supply
• Transport of sensitive or mixed goods
• Goods staging and distribution



Conclusion

The Ecoflex base platform with 4 side panels, top grid, and 2 intermediate shelves is the premium solution for demanding intralogistics operations. It offers maximum protection, highest structural organization, and efficient workflows – while remaining fully adaptable within the Ecoflex modular system.
