ROLLTAINER ADB BASIC 5-SEITIG MIT ZWB

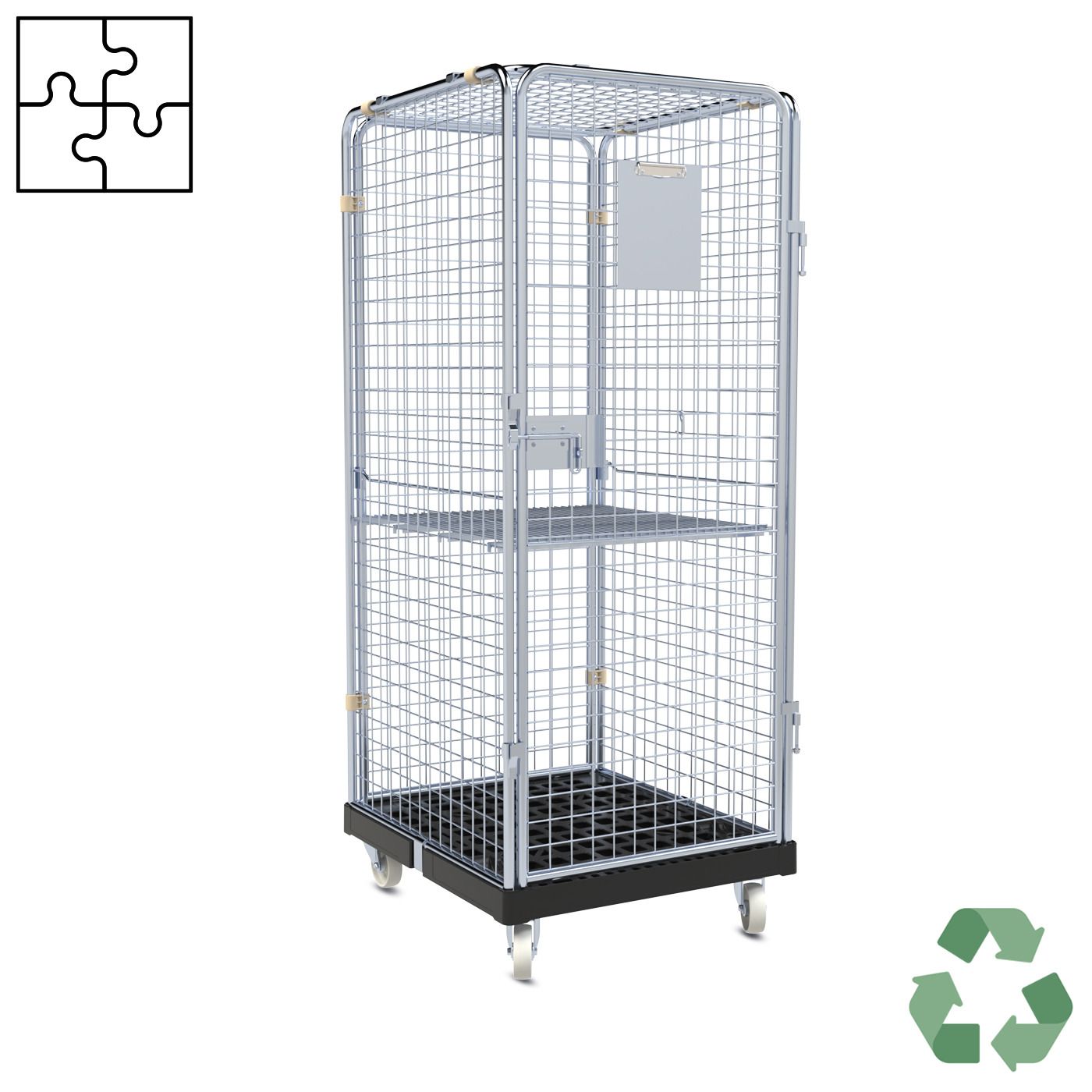

Ecoflex Modular Roll Container System – Base Platform with 4 Side Panels, Top Grid and Intermediate Shelf

Enclosed solution with added structure

This version of the Ecoflex modular system combines the robust base platform with four side panels, a top grid, and an intermediate shelf. The result is a nearly fully enclosed transport solution with an additional level, ensuring both maximum protection and structured organization of goods.

Ideal for applications where items need to be securely contained, separated, and efficiently handled within a closed system.



Product components

This configuration consists of:

Ecoflex base platform

• Load capacity up to 500 kg
• Dimensions: 724 × 815 × 192 mm
• Platform made from recycled plastic
• Wheel body made of polypropylene
• Wheels Ø 108 mm
• 2 swivel castors / 2 fixed castors
• fully compatible with the Ecoflex modular system

4 side panels (fully enclosed)

• height: 1350 mm
• width: 790 mm
• surface: galvanized
• provide complete enclosure of the load
• prevent goods from slipping or falling
• ideal for loose, sensitive, or higher-value goods
• robust and durable construction
• easy integration into the Ecoflex system

Top grid

• adds upper protection
• prevents goods from falling out from above
• increases transport safety during movement
• durable and stable design
• easy installation

Intermediate shelf

• dimensions: 710 × 778 mm
• suitable for 2-, 3-, or 4-sided configurations
• reinforced with 3 flat steel bars
• creates an additional loading level
• improves organization and space utilization
• stable and durable design
• quick and easy installation



Protection and structure in daily operations

The 5-sided design ensures maximum safety during transport. Goods are fully enclosed and additionally secured from above, reducing the risk of loss or damage.

The intermediate shelf adds an extra level, allowing goods to be separated, clearly organized, and efficiently handled. This improves order picking, reduces handling time, and ensures smoother workflows.

The combination of protection and structure makes this configuration especially effective in demanding logistics environments.

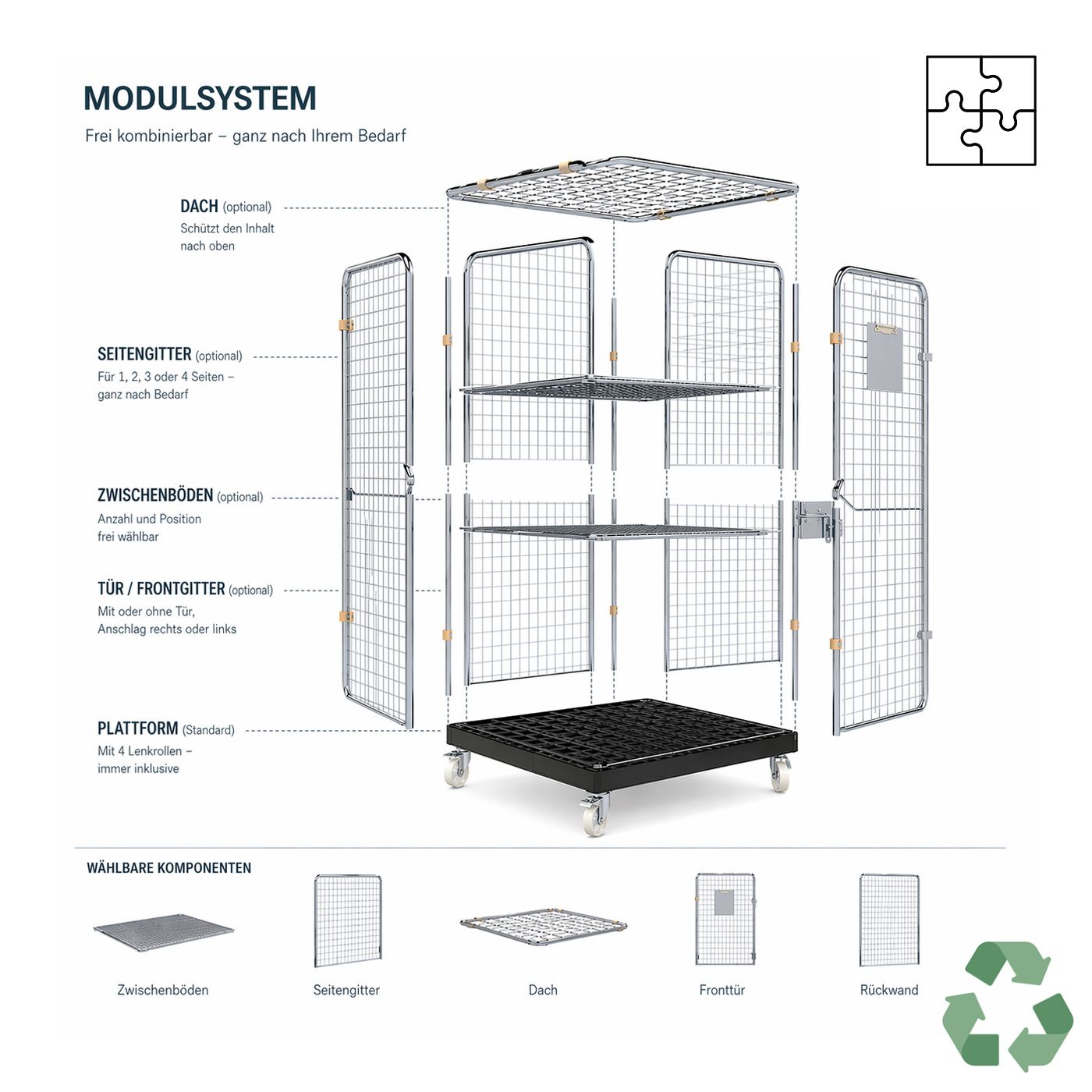

Part of the Ecoflex modular system

This configuration represents an advanced solution within the Ecoflex modular system, combining protection, stability, and structured organization.

At the same time, the system remains fully flexible: the roll container can be further expanded at any time – for example with additional shelves or doors for controlled access.

This allows you to build a system that evolves with your operational needs.

Ecoflex adapts to your material flow – modular, flexible, and future-proof.



Your benefits at a glance

All-around protection
4 side panels and top grid ensure maximum load security.

Structured organization
Intermediate shelf enables clear separation and improved visibility.

Efficient workflows
Additional level supports faster and more efficient order picking.

Optimized space utilization
Better use of available transport volume.

High load capacity
Base platform supports up to 500 kg.

Robust & durable
Recycled plastic platform and galvanized steel construction for daily use.

Expandable system
Fully compatible with all Ecoflex components.



Typical applications

• Warehousing and intralogistics
• Order picking
• Production and internal supply
• Transport of sensitive or mixed goods
• Goods staging and distribution



Conclusion

The Ecoflex base platform with 4 side panels, top grid, and intermediate shelf combines maximum protection with structured organization. It ensures safe and efficient transport while remaining fully adaptable within the Ecoflex modular system.
