ROLLTAINER ADB BASIC 4-SEITIG MIT 2 ZWB

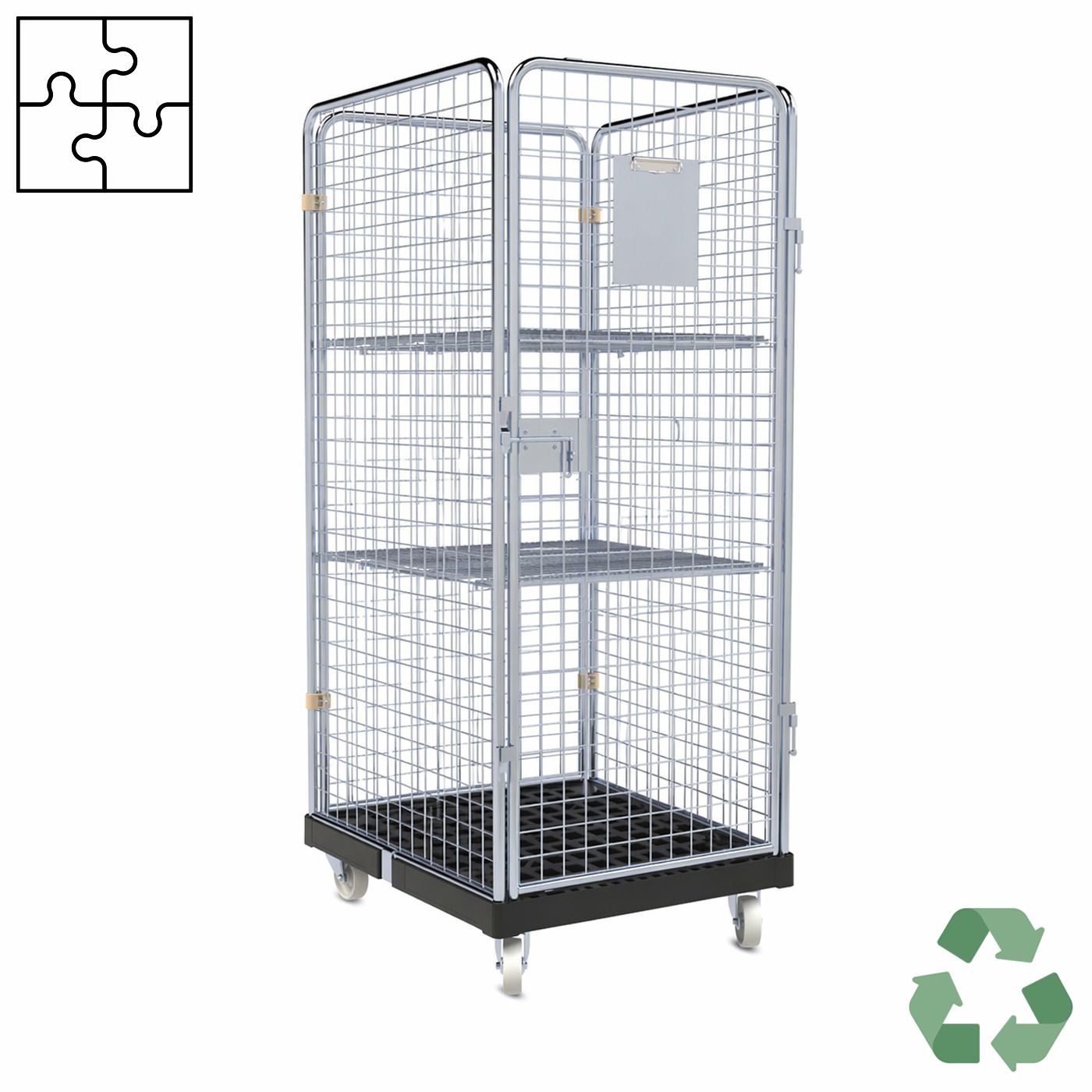

Ecoflex Modular Roll Container System – Base Platform with 4 Side Panels and 2 Intermediate Shelves

Enclosed solution with maximum structure

This version of the Ecoflex modular system combines the robust base platform with four side panels and two intermediate shelves. The result is a fully enclosed, multi-level transport solution that provides both maximum protection and highly structured organization of goods.

Ideal for applications where items need to be securely contained, clearly separated, and efficiently handled across multiple levels.



Product components

This configuration consists of:

Ecoflex base platform

• Load capacity up to 500 kg
• Dimensions: 724 × 815 × 192 mm
• Platform made from recycled plastic
• Wheel body made of polypropylene
• Wheels Ø 108 mm
• 2 swivel castors / 2 fixed castors
• fully compatible with the Ecoflex modular system

4 side panels (fully enclosed)

• height: 1350 mm
• width: 790 mm
• surface: galvanized
• provide complete enclosure of the load
• prevent goods from slipping or falling
• ideal for loose, sensitive, or higher-value goods
• robust and durable construction
• easy integration into the Ecoflex system

2 intermediate shelves

• dimensions: 710 × 778 mm
• suitable for 2-, 3-, or 4-sided configurations
• reinforced with 3 flat steel bars
• create two additional loading levels
• improve organization and space utilization
• stable and durable design
• quick and easy installation



Maximum efficiency across multiple levels

The two intermediate shelves allow goods to be clearly structured and separated across multiple levels. This enables efficient order picking, reduces search time, and improves handling accuracy.

Combined with the 4-sided enclosed design, goods remain securely contained while being optimally organized – even during movement or intensive daily use.

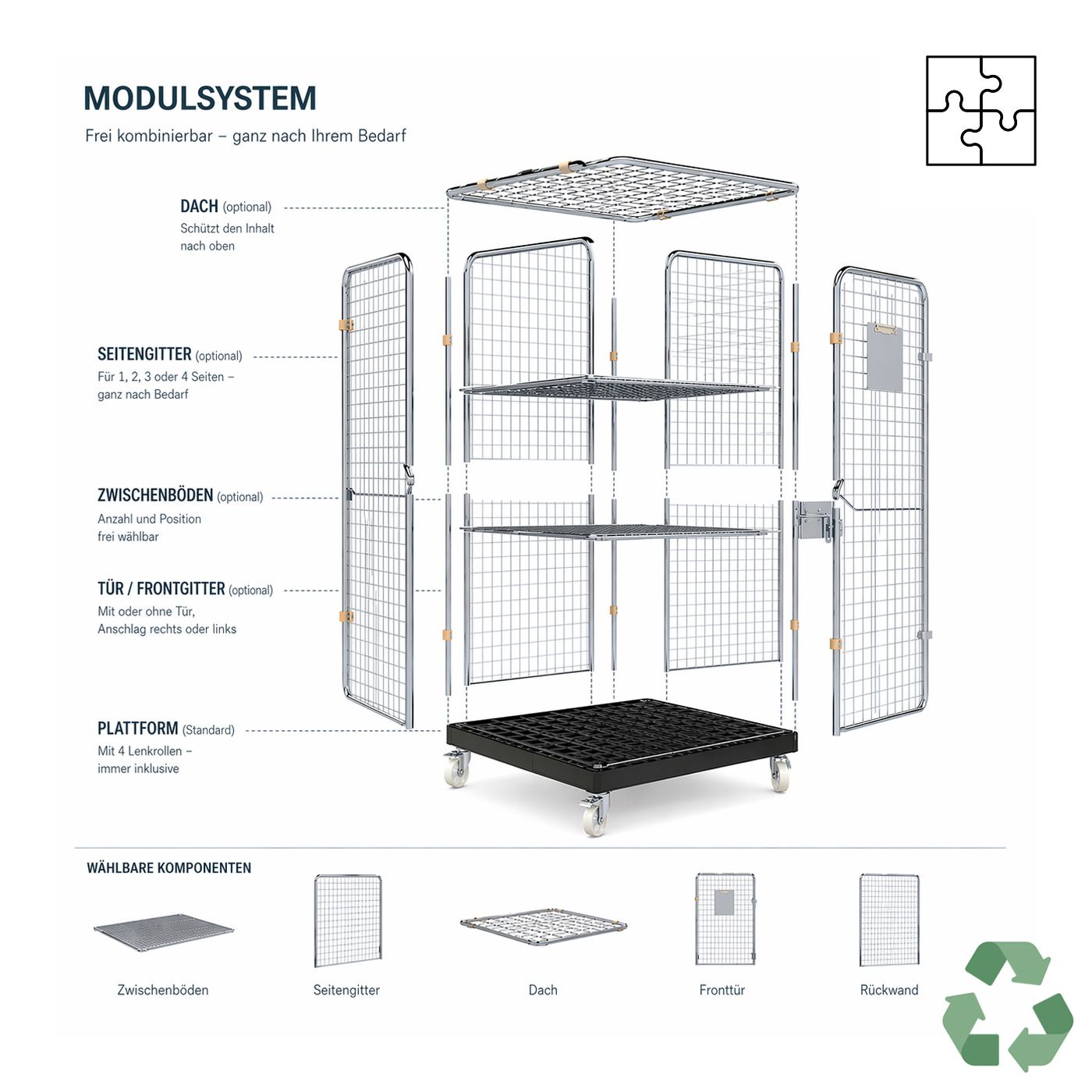

Part of the Ecoflex modular system

This configuration represents one of the most advanced setups within the Ecoflex modular system, combining protection, structure, and efficiency in a single solution.

At the same time, the system remains fully flexible: the roll container can be expanded at any time – for example with doors for controlled access or a top grid for additional security from above.

This allows you to build a system that perfectly fits your operational requirements.

Ecoflex adapts to your material flow – modular, flexible, and future-proof.



Your benefits at a glance

Maximum protection
4-sided enclosed design ensures secure transport.

Highest level of organization
Two shelves enable clear separation and structured storage.

Efficient order picking
Multi-level design improves workflow and productivity.

Optimized space utilization
Better use of available transport volume.

High load capacity
Base platform supports up to 500 kg.

Robust & durable
Recycled plastic platform and solid steel construction for daily use.

Expandable system
Fully compatible with all Ecoflex components.

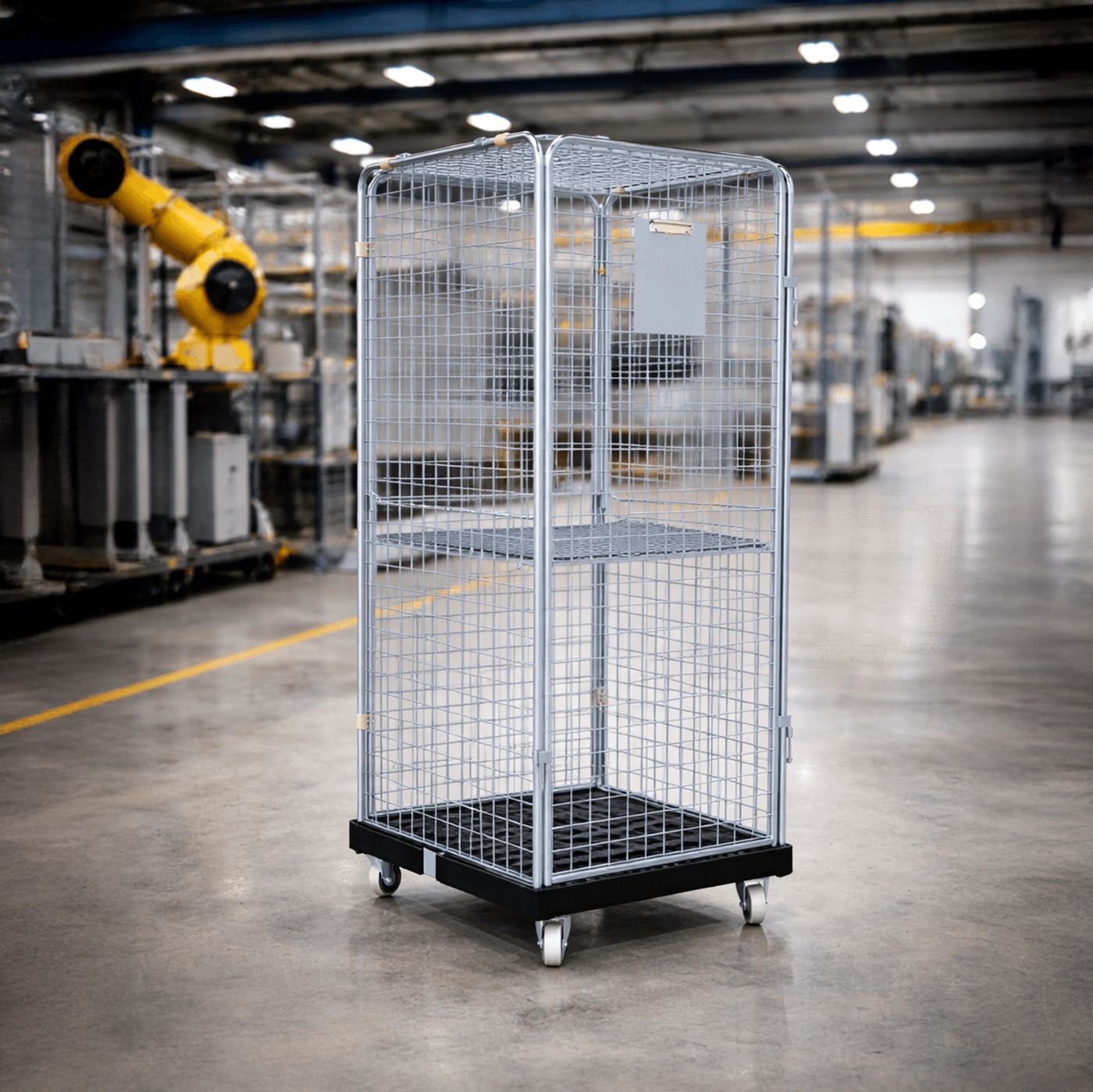

Typical applications

• Warehousing and intralogistics
• Order picking and route preparation
• Production and internal supply
• Transport of mixed or sensitive goods
• Goods staging and distribution



Conclusion

The Ecoflex base platform with 4 side panels and 2 intermediate shelves offers maximum structure and protection for demanding logistics operations. It enables efficient multi-level organization while ensuring secure transport – fully expandable within the Ecoflex modular system.
