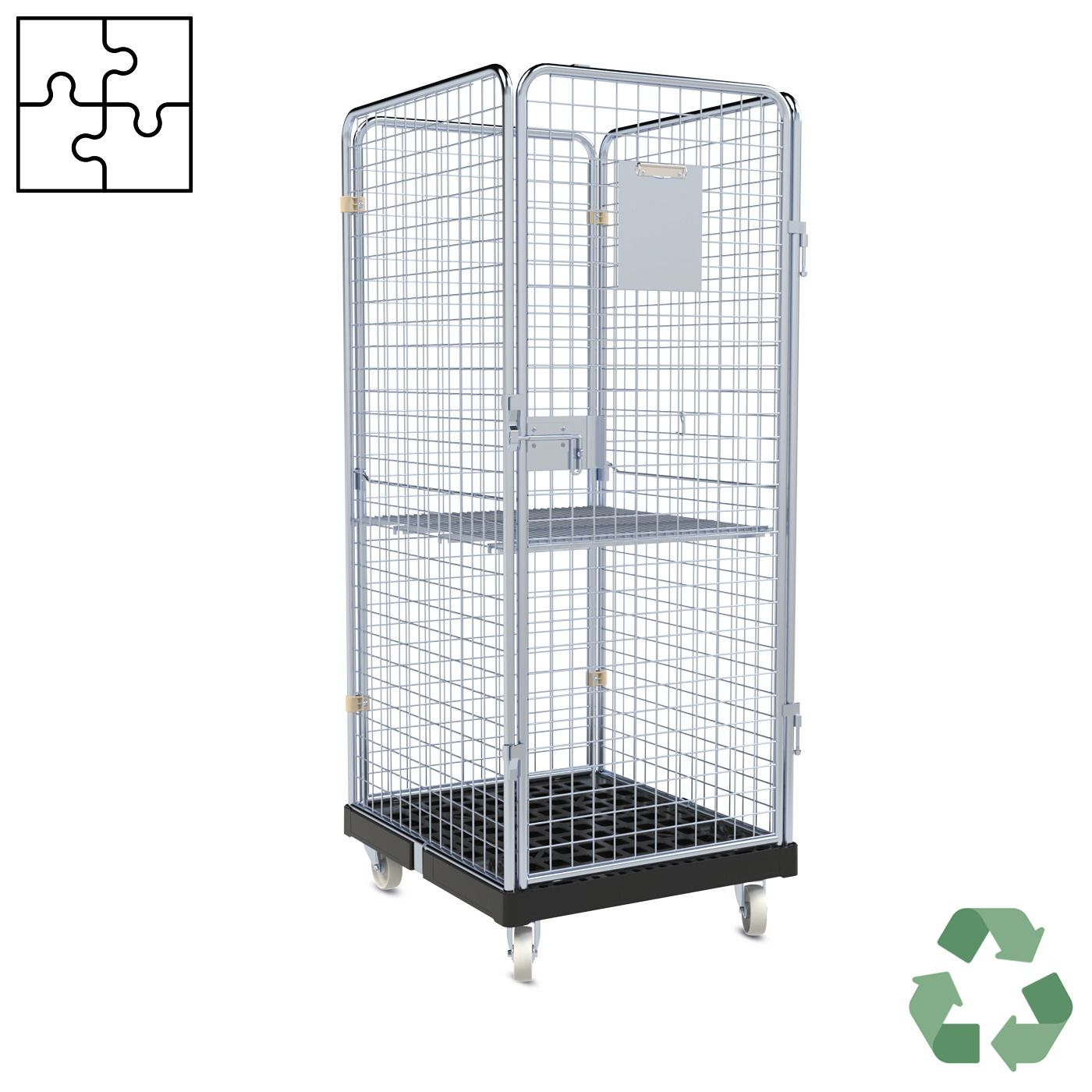

ROLLTAINER ADB BASIC 4-SEITIG MIT ZWB

Ecoflex Modular Roll Container System – Base Platform with 4 Side Panels and Intermediate Shelf

Enclosed solution with an additional loading level

This version of the Ecoflex modular system combines the robust base platform with four side panels and an intermediate shelf. The result is a fully enclosed transport solution with an additional level, offering both maximum protection and structured organization of goods.

Ideal for applications where items need to be securely contained, separated, and efficiently handled across multiple levels.



Product components

This configuration consists of:

Ecoflex base platform

• Load capacity up to 500 kg
• Dimensions: 724 × 815 × 192 mm
• Platform made from recycled plastic
• Wheel body made of polypropylene
• Wheels Ø 108 mm
• 2 swivel castors / 2 fixed castors
• fully compatible with the Ecoflex modular system

4 side panels (fully enclosed)

• height: 1350 mm
• width: 790 mm
• surface: galvanized
• provide complete enclosure of the load
• prevent goods from slipping or falling
• ideal for loose, sensitive, or higher-value goods
• robust and durable construction
• easy integration into the Ecoflex system

Intermediate shelf

• dimensions: 710 × 778 mm
• suitable for 2-, 3-, or 4-sided configurations
• reinforced with 3 flat steel bars
• creates an additional loading level
• improves organization and space utilization
• stable and durable design
• quick and easy installation



Protection and structure in daily operations

The 4-sided design ensures maximum safety during transport. Goods remain securely contained within the roll container – even during movement, direction changes, or uneven surfaces.

The additional intermediate shelf enhances functionality by adding another level. This allows goods to be separated, clearly organized, and handled more efficiently.

The combination of protection and structure makes this configuration especially versatile for demanding logistics environments.

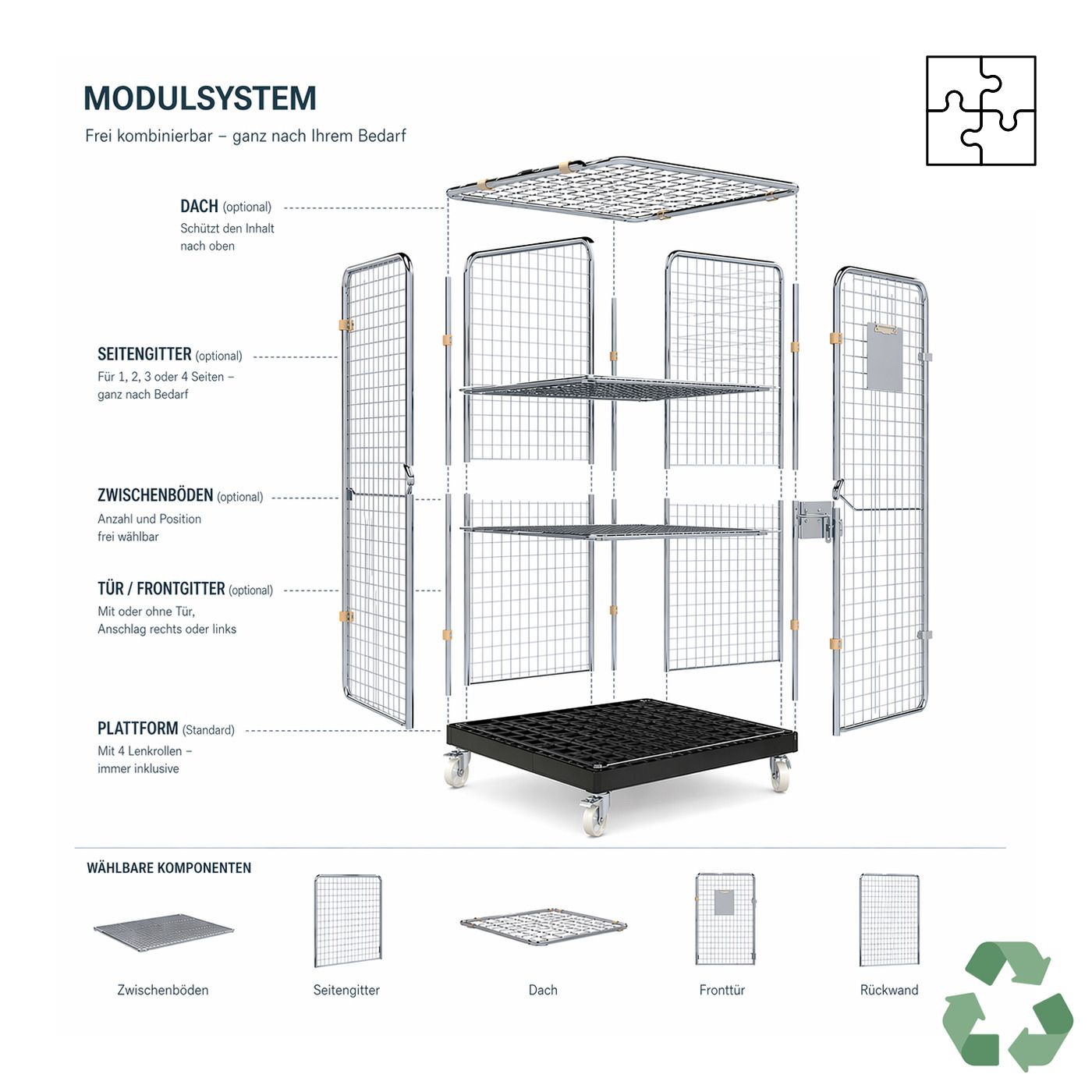

Part of the Ecoflex modular system

This configuration represents an advanced version within the Ecoflex modular system, combining protection, stability, and structure in one solution.

At the same time, the system remains fully flexible: the roll container can be expanded at any time – for example with doors for controlled access or a top cover for a fully enclosed setup.

This allows you to gradually build a solution that perfectly matches your operational requirements.

Ecoflex adapts to your material flow – modular, flexible, and future-proof.



Your benefits at a glance

Maximum protection
4-sided design ensures safe and enclosed transport.

Improved structure
Intermediate shelf allows clear separation and organization of goods.

Optimized space utilization
Additional level increases transport efficiency.

High load capacity
Base platform supports up to 500 kg.

Robust & durable
Recycled plastic platform and solid steel construction for daily use.

Expandable system
Fully compatible with all Ecoflex components.



Typical applications

• Warehousing and intralogistics
• Order picking
• Production and internal supply
• Transport of sensitive or mixed goods
• Goods staging and distribution



Conclusion

The Ecoflex base platform with 4 side panels and intermediate shelf offers the ideal combination of protection and structure. It ensures safe transport while enabling efficient organization of goods – fully expandable within the Ecoflex modular system.
