ROLLTAINER ADB BASIC 3-SEITIG MIT 2 ZWB

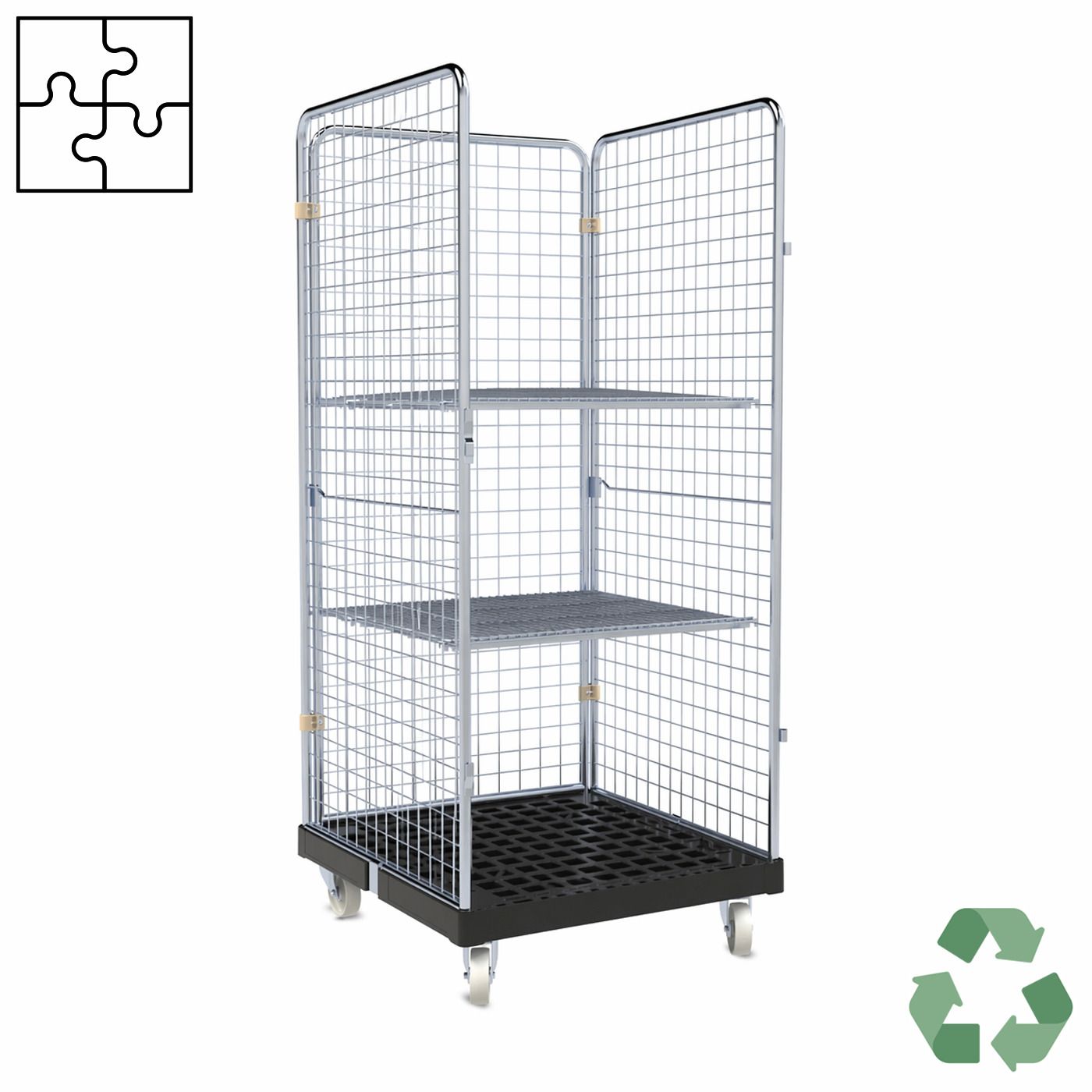

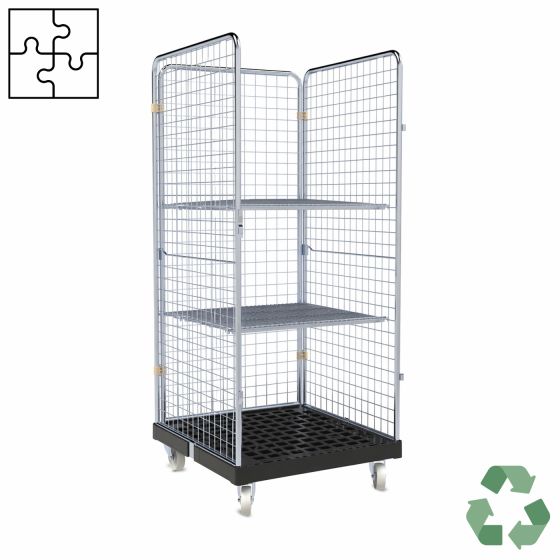

Ecoflex Modular Roll Container System – Base Platform with 3 Side Panels and 2 Intermediate Shelves

Maximum structure for efficient order picking

This version of the Ecoflex modular system combines the robust base platform with three side panels and two intermediate shelves. The result is a stable, multi-level transport solution that enables clear separation and structured organization of your goods.

Ideal for applications where different items need to be stored, picked, and transported efficiently across multiple levels.



Product components

This configuration consists of:

Ecoflex base platform

• Load capacity up to 500 kg
• Dimensions: 724 × 815 × 192 mm
• Platform made from recycled plastic
• Wheel body made of polypropylene
• Wheels Ø 108 mm
• 2 swivel castors / 2 fixed castors
• fully compatible with the Ecoflex modular system

3 side panels (including rear panel)

• height: 1350 mm
• width: 790 mm
• surface: galvanized
• provide lateral and rear stability
• prevent goods from slipping or falling
• ideal for bulky, tall, or loose goods
• robust and durable construction
• easy integration into the Ecoflex system

2 intermediate shelves

• dimensions: 710 × 778 mm
• suitable for 2-, 3-, or 4-sided configurations
• reinforced with 3 flat steel bars
• create two additional loading levels
• improve organization and space utilization
• stable and durable design
• quick and easy installation



Structured workflows across multiple levels

The two intermediate shelves allow clear separation of goods across multiple levels. This makes it easier to organize, access, and transport items efficiently.

It reduces search times, minimizes handling errors, and ensures stable transport – especially when dealing with mixed or differently sized goods.

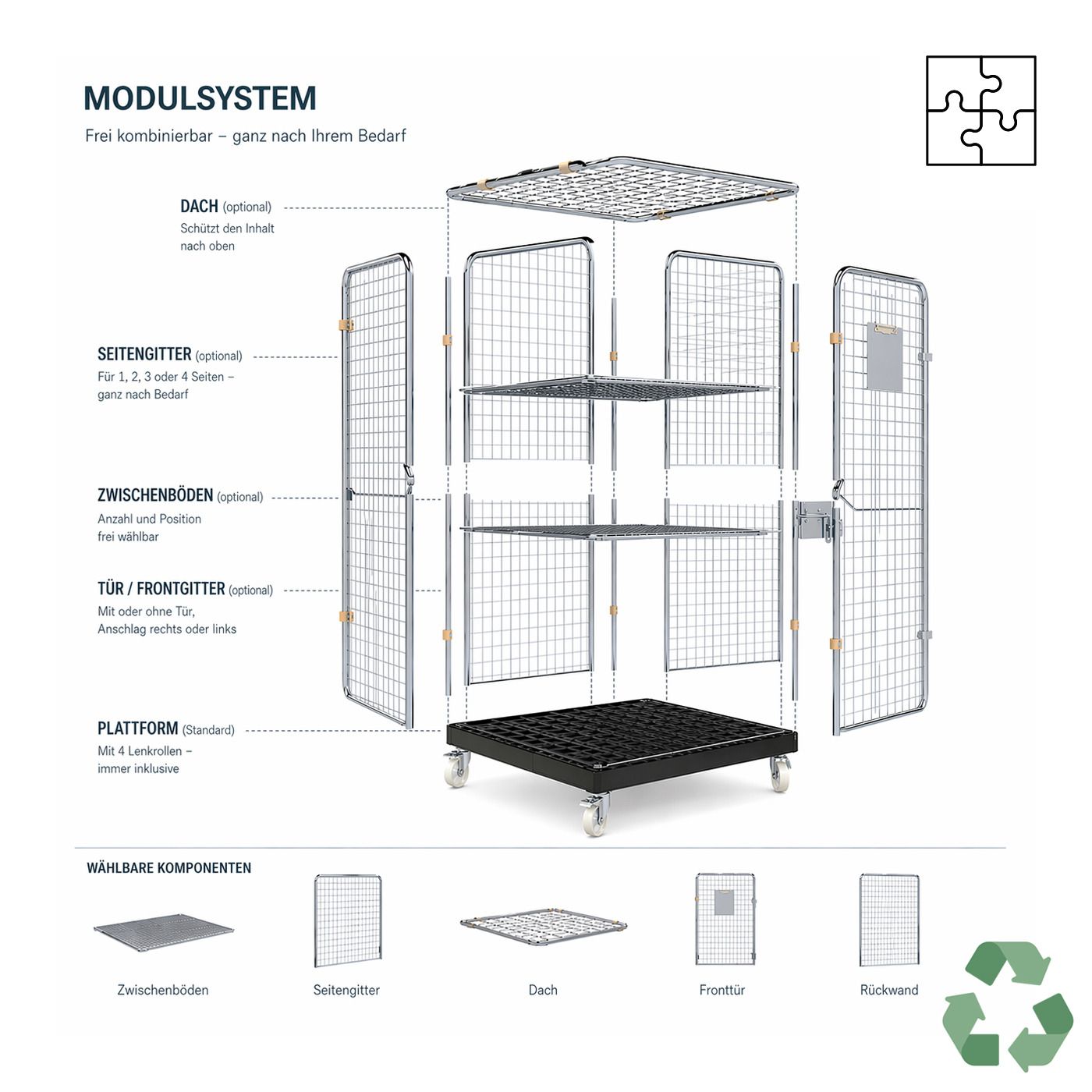

Part of the Ecoflex modular system

This configuration represents an advanced version within the Ecoflex modular system, offering a high level of structure and control within your material flow.

At the same time, the system remains fully expandable: the roll container can be further enhanced at any time – for example with doors for controlled access or a top cover for a fully enclosed solution.

This allows you to gradually build a system that perfectly matches your operational requirements.

Ecoflex adapts to your material flow – modular, flexible, and future-proof.



Your benefits at a glance

Maximum organization
Two intermediate shelves enable clear separation and structured storage.

Efficient order picking
Multiple levels improve speed and clarity in daily operations.

High stability
3-sided design with rear panel ensures secure load handling.

Optimized space utilization
Better use of available transport volume.

High load capacity
Base platform supports up to 500 kg.

Robust & durable
Recycled plastic platform and solid steel construction for daily use.

Expandable system
Fully compatible with all Ecoflex components.



Typical applications

• Warehousing and intralogistics
• Order picking and route preparation
• Production and internal supply
• Transport of mixed goods
• Goods staging and distribution



Conclusion

The Ecoflex base platform with 3 side panels and 2 intermediate shelves offers maximum structure and efficiency for intralogistics operations. It enables organized multi-level transport while remaining fully expandable within the Ecoflex modular system.
