ROLLTAINER ADB BASIC 3-SEITIG MIT ZWB

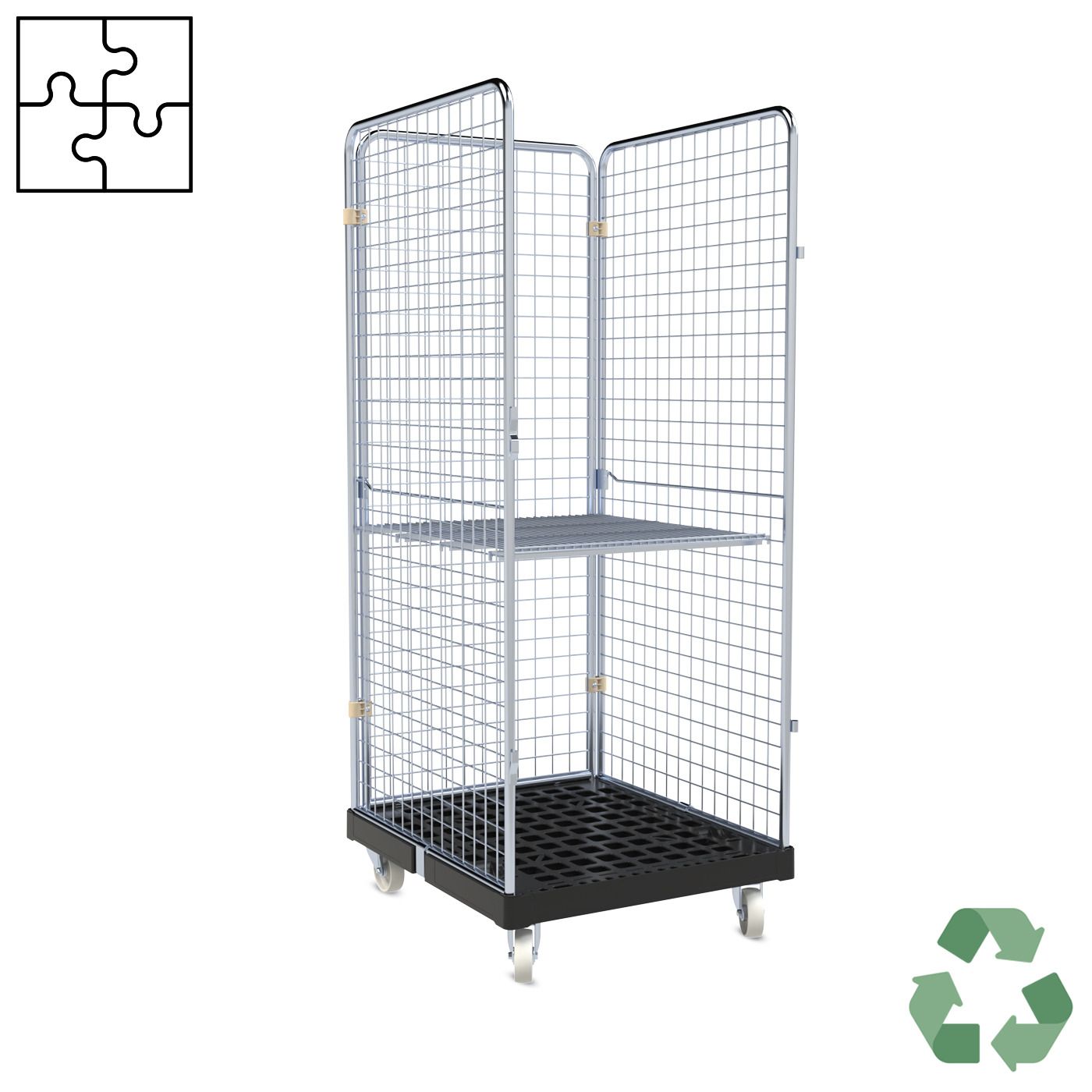

Ecoflex Modular Roll Container System – Base Platform with 3 Side Panels and Intermediate Shelf

Controlled load handling with an additional storage level

This version of the Ecoflex modular system combines the robust base platform with three side panels and an intermediate shelf. The result is a stable, partially enclosed transport solution with an additional level for structured and efficient handling of goods.

Ideal for applications where items need to be secured, separated, and organized across multiple levels during transport.



Product components

This configuration consists of:

Ecoflex base platform

• Load capacity up to 500 kg
• Dimensions: 724 × 815 × 192 mm
• Platform made from recycled plastic
• Wheel body made of polypropylene
• Wheels Ø 108 mm
• 2 swivel castors / 2 fixed castors
• fully compatible with the Ecoflex modular system

3 side panels (including rear panel)

• height: 1350 mm
• width: 790 mm
• surface: galvanized
• provide lateral and rear stability
• prevent goods from slipping or falling
• ideal for bulky, tall, or loose goods
• robust and durable construction
• easy integration into the Ecoflex system

Intermediate shelf

• dimensions: 710 × 778 mm
• suitable for 2-, 3-, or 4-sided configurations
• reinforced with 3 flat steel bars
• creates an additional loading level
• improves organization and space utilization
• stable and durable design
• quick and easy installation



Improved structure and control in daily operations

The combination of a rear panel and intermediate shelf significantly enhances control over your goods. Items are not only securely guided but can also be clearly separated and organized across multiple levels.

This improves order picking efficiency, reduces shifting during transport, and allows better use of available space – especially when handling mixed or differently sized goods.

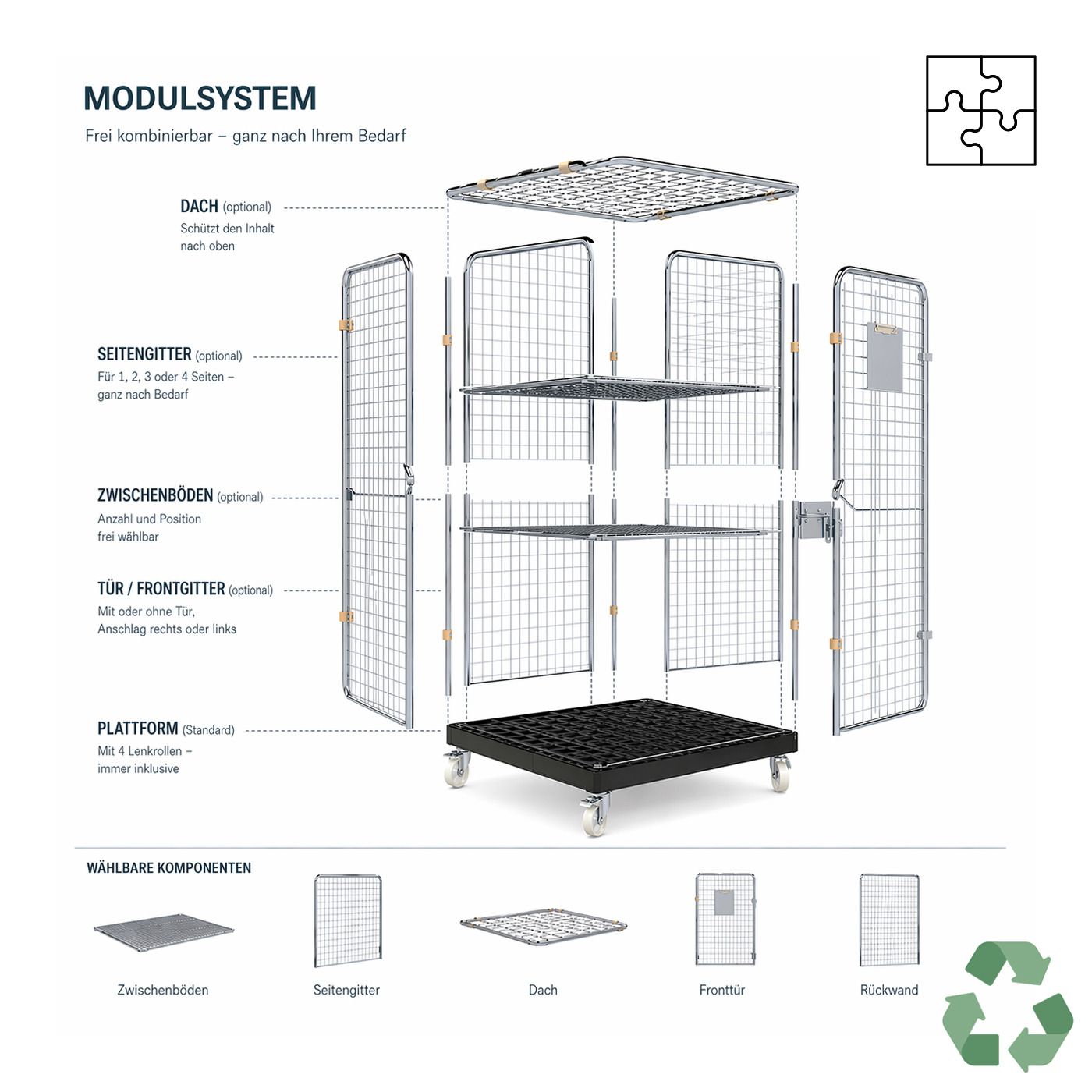

Part of the Ecoflex modular system

This configuration represents an advanced version within the Ecoflex modular system, combining stability, structure, and flexibility in one solution.

At the same time, the system remains fully expandable: the roll container can be further upgraded at any time – for example with doors for controlled access or a top cover for a more enclosed setup.

This allows you to gradually build a solution that perfectly fits your operational requirements.

Ecoflex adapts to your material flow – modular, flexible, and future-proof.



Your benefits at a glance

Maximum organization
Intermediate shelf allows clear separation and structured storage.

High stability
3-sided configuration with rear panel for secure load handling.

Optimized space utilization
Additional level for more efficient use of transport volume.

High load capacity
Base platform supports up to 500 kg.

Robust & durable
Recycled plastic platform and solid steel construction for daily use.

Expandable system
Fully compatible with all Ecoflex components.



Typical applications

• Warehousing and intralogistics
• Order picking and route preparation
• Production and internal supply
• Transport of mixed or sensitive goods
• Goods staging and distribution

Conclusion

The Ecoflex base platform with 3 side panels and intermediate shelf offers a well-balanced combination of stability, structure, and efficiency. It enables controlled load handling and optimal space utilization while remaining fully expandable within the Ecoflex modular system.



Would you like to learn more about this product?
Our team will be happy to advise you and help find the right solution for your operations.

Call us: +43 463 34114-0
or use our GESA webshop live chat.

GESA – your partner for intralogistics in Austria
