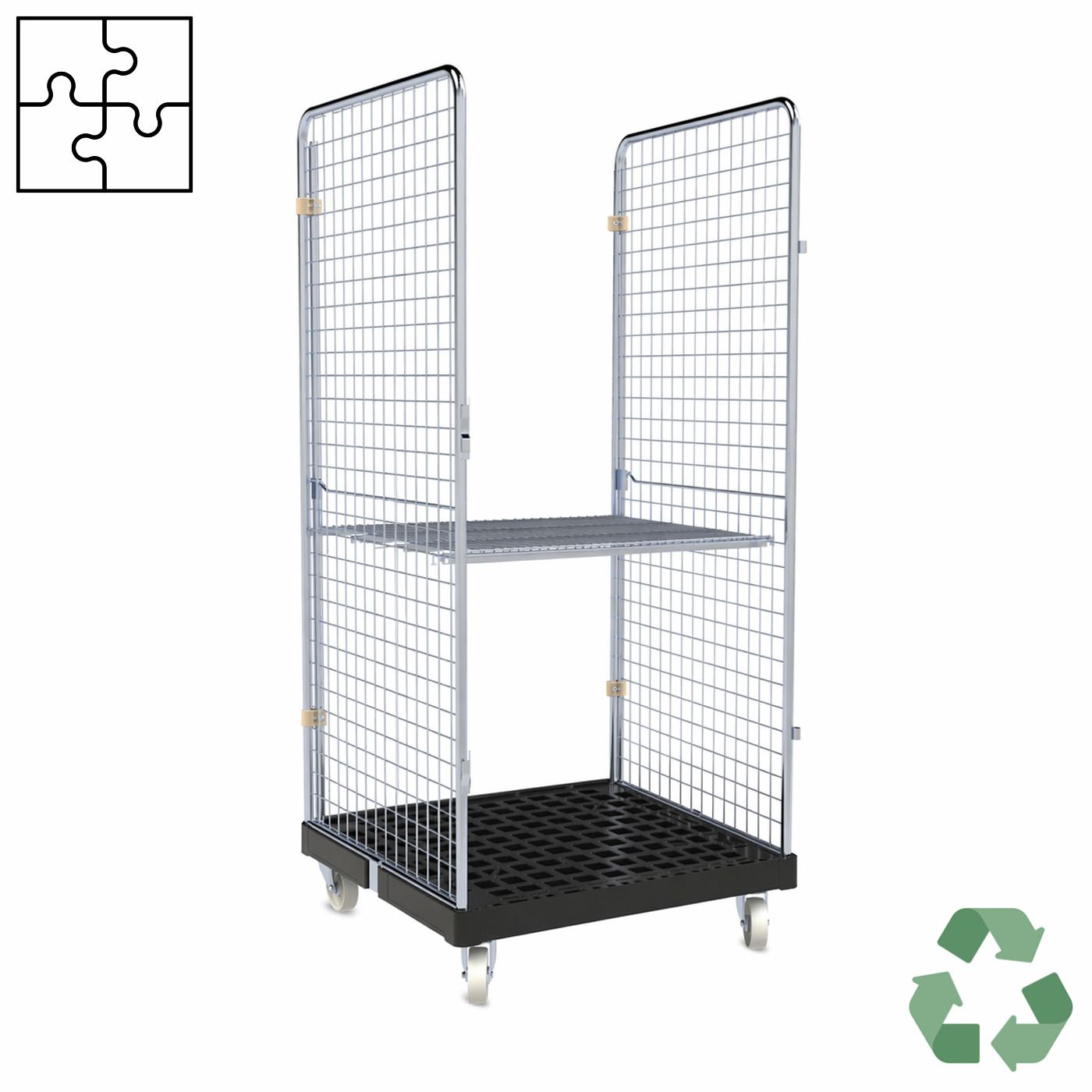

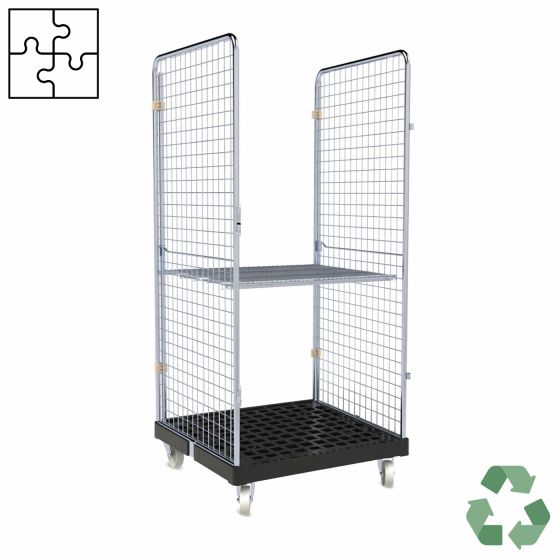

ROLLTAINER ADB BASIC 2-SEITIG MIT ZWB

Ecoflex Modular Roll Container System – Base Platform with 2 Side Panels and Intermediate Shelf

More structure and additional storage level for efficient transport

This version of the Ecoflex modular system combines the robust base platform with two side panels and an intermediate shelf. The result is a flexible transport solution with an additional loading level, enabling structured and organized handling of goods.

Ideal for applications where different items need to be separated, stacked, or transported efficiently on multiple levels.



Product components

This configuration consists of:

Ecoflex base platform

• Load capacity up to 500 kg
• Dimensions: 724 × 815 × 192 mm
• Platform made from recycled plastic
• Wheel body made of polypropylene
• Wheels Ø 108 mm
• 2 swivel castors / 2 fixed castors
• fully compatible with the Ecoflex modular system

2 side panels

• height: 1350 mm
• width: 790 mm
• surface: galvanized
• provide lateral stability and secure load guidance
• ideal for bulky, tall, or loose goods
• robust and durable construction
• easy integration into the Ecoflex system

Intermediate shelf

• dimensions: 710 × 778 mm
• suitable for 2-, 3-, or 4-sided configurations
• reinforced with 3 flat steel bars
• creates an additional loading level
• improves organization and space utilization
• stable and durable design
• quick and easy installation



Efficient use of available space

The integrated intermediate shelf significantly enhances the functionality of the roll container. It creates an additional level for separating and organizing goods more effectively.

This reduces shifting during transport, improves order picking efficiency, and allows better use of the available loading volume – especially when handling mixed or differently sized items.

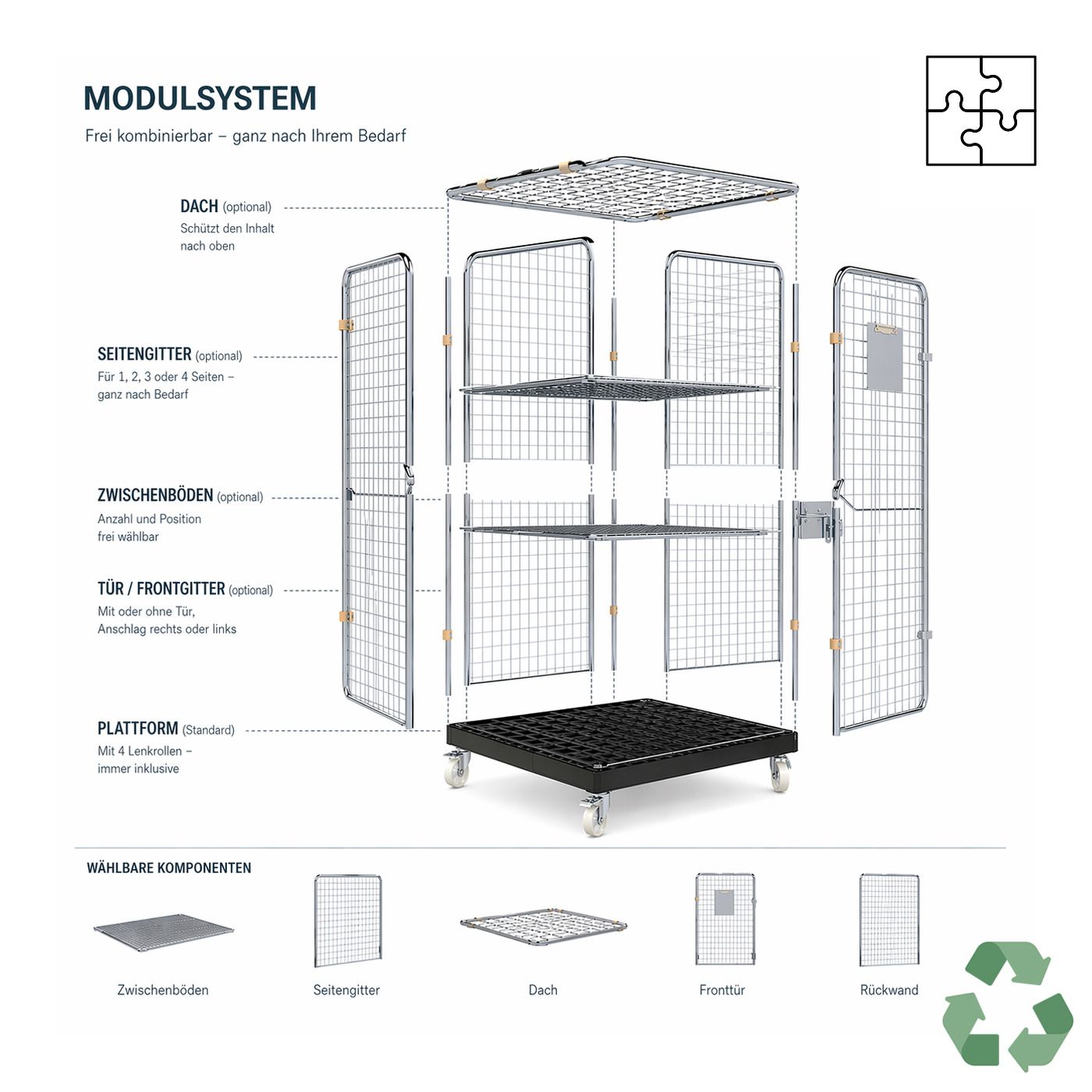

Part of the Ecoflex modular system

This configuration represents an extended version within the Ecoflex modular system, combining lateral stability with improved structure through the intermediate shelf.

At the same time, the system remains fully flexible: the roll container can be expanded at any time – for example with a rear panel for additional protection, doors for controlled access, or a top cover for a more enclosed solution.

This allows you to gradually build a solution that perfectly matches your requirements.

Ecoflex adapts to your material flow – modular, flexible, and future-proof.



Your benefits at a glance

Improved organization
Intermediate shelf enables clear separation and structured storage of goods.

Optimized space utilization
Additional level for more efficient loading and unloading.

Lateral stability
Side panels securely support and guide the load.

High load capacity
Base platform supports up to 500 kg.

Robust & durable
Recycled plastic platform and solid steel construction for daily use.

Expandable system
Fully compatible with all Ecoflex components.



Typical applications

• Warehousing and intralogistics
• Order picking and route preparation
• Production and internal supply
• Transport of mixed goods
• Goods staging and distribution

Conclusion

The Ecoflex base platform with 2 side panels and intermediate shelf offers an ideal combination of stability and structure. It enables efficient use of transport capacity while remaining fully expandable within the Ecoflex modular system.
