ROLLTAINER ADB BASIC 5-SEITIG

Ecoflex Modular Roll Container System – Base Platform with 4 Side Panels and Top Grid (5-Sided)

Full protection – including top security

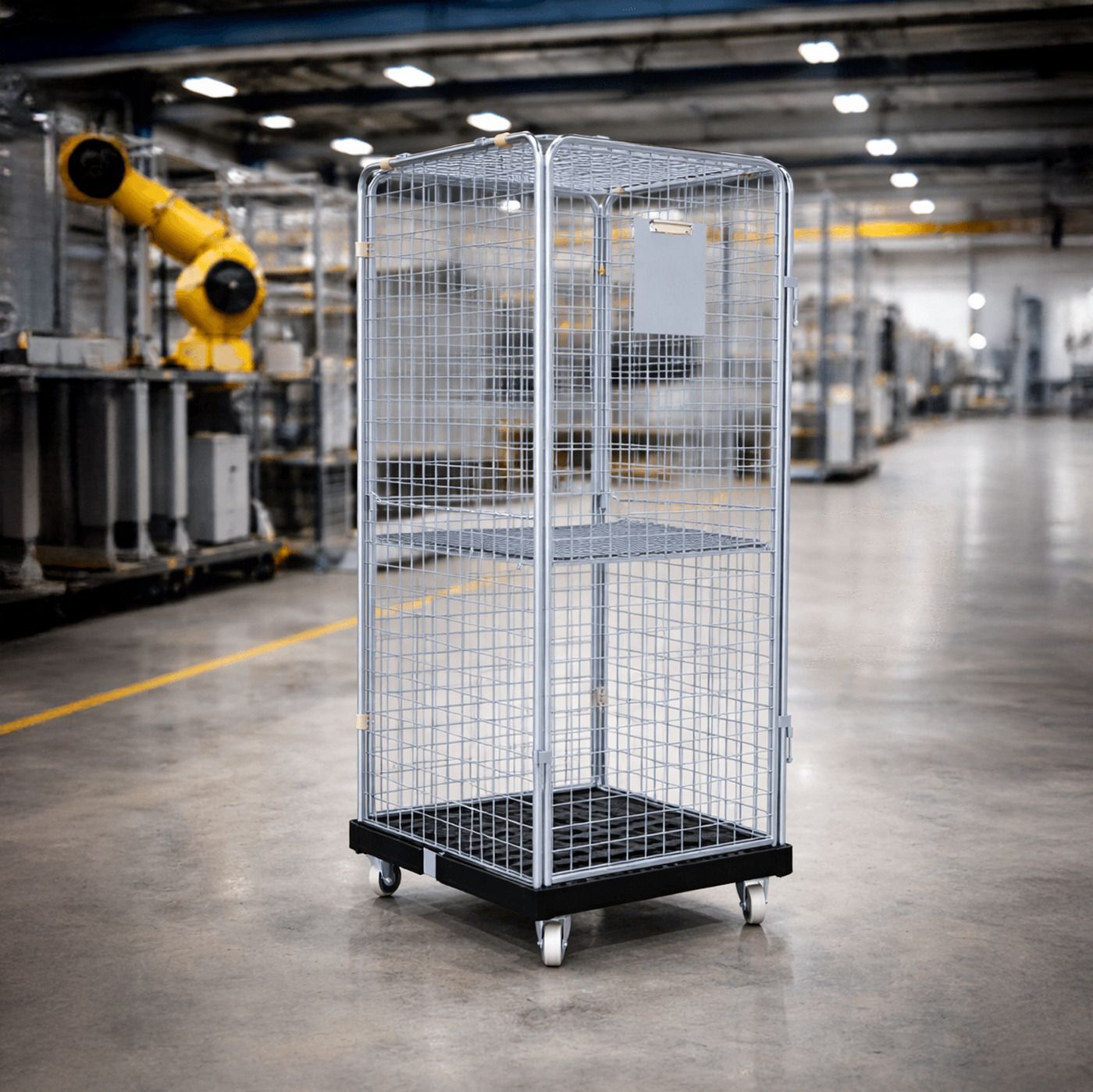

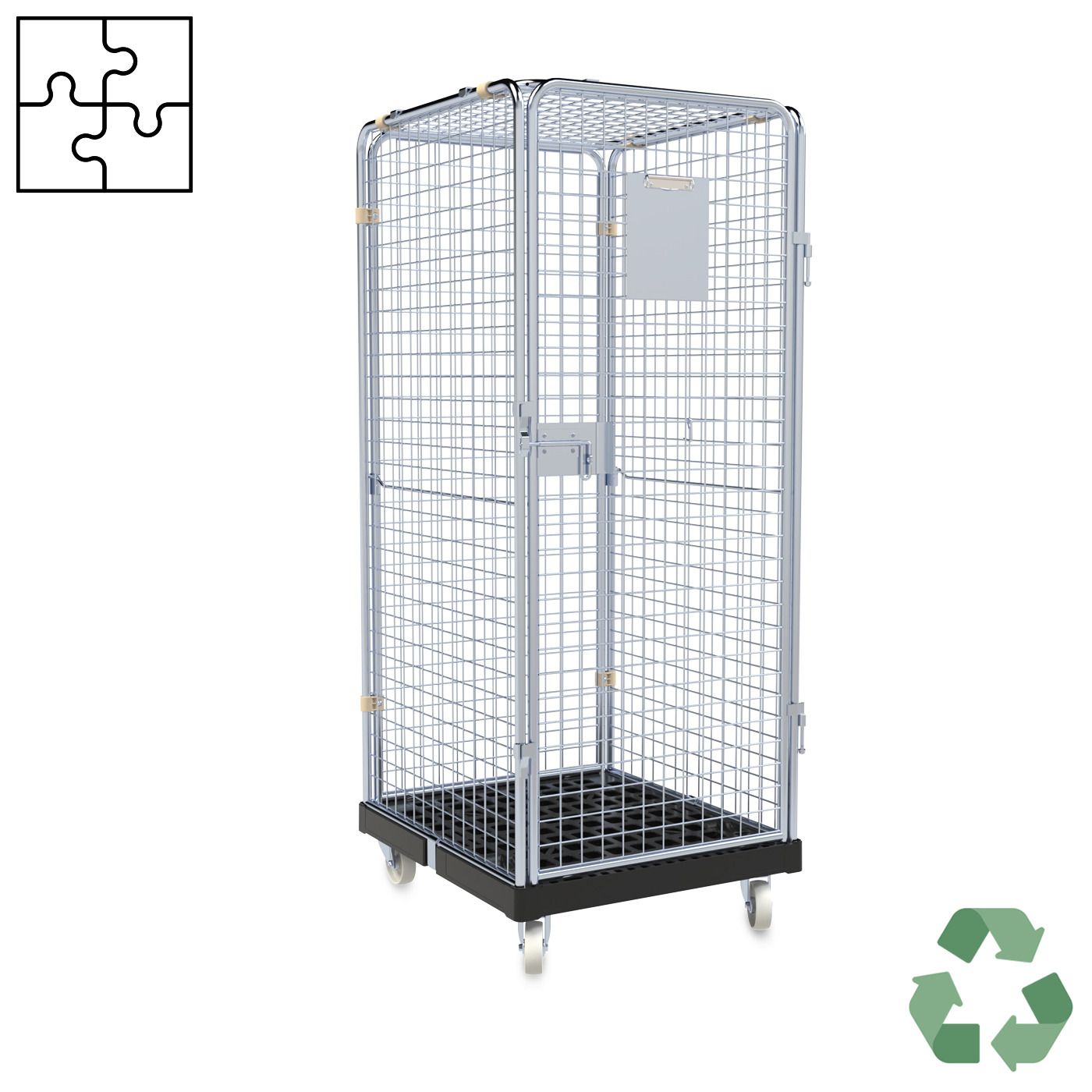

This version of the Ecoflex modular system combines the robust base platform with four side panels and an additional top grid. The result is a nearly fully enclosed transport solution that protects your goods on all sides – including from above.

Ideal for applications where items need to be securely contained and additionally protected against shifting, falling, or external access from the top.



Product components

This configuration consists of:

Ecoflex base platform

• Load capacity up to 500 kg
• Dimensions: 724 × 815 × 192 mm
• Platform made from recycled plastic
• Wheel body made of polypropylene
• Wheels Ø 108 mm
• 2 swivel castors / 2 fixed castors
• fully compatible with the Ecoflex modular system

4 side panels (fully enclosed)

• height: 1350 mm
• width: 790 mm
• surface: galvanized
• provide complete enclosure of the load
• prevent goods from slipping or falling
• ideal for loose, sensitive, or higher-value goods
• robust and durable construction
• easy integration into the Ecoflex system

Top grid

• adds an upper level of protection
• prevents goods from falling out from above
• increases transport safety during movement
• durable and stable design
• easy to install and integrate



Maximum safety in daily operations

The 5-sided design creates a nearly fully enclosed transport unit. Goods are not only secured on all sides but also protected from above – a key advantage when handling loose, sensitive, or valuable items.

This ensures maximum safety during transport, especially in dynamic environments, on uneven surfaces, or during frequent handling.

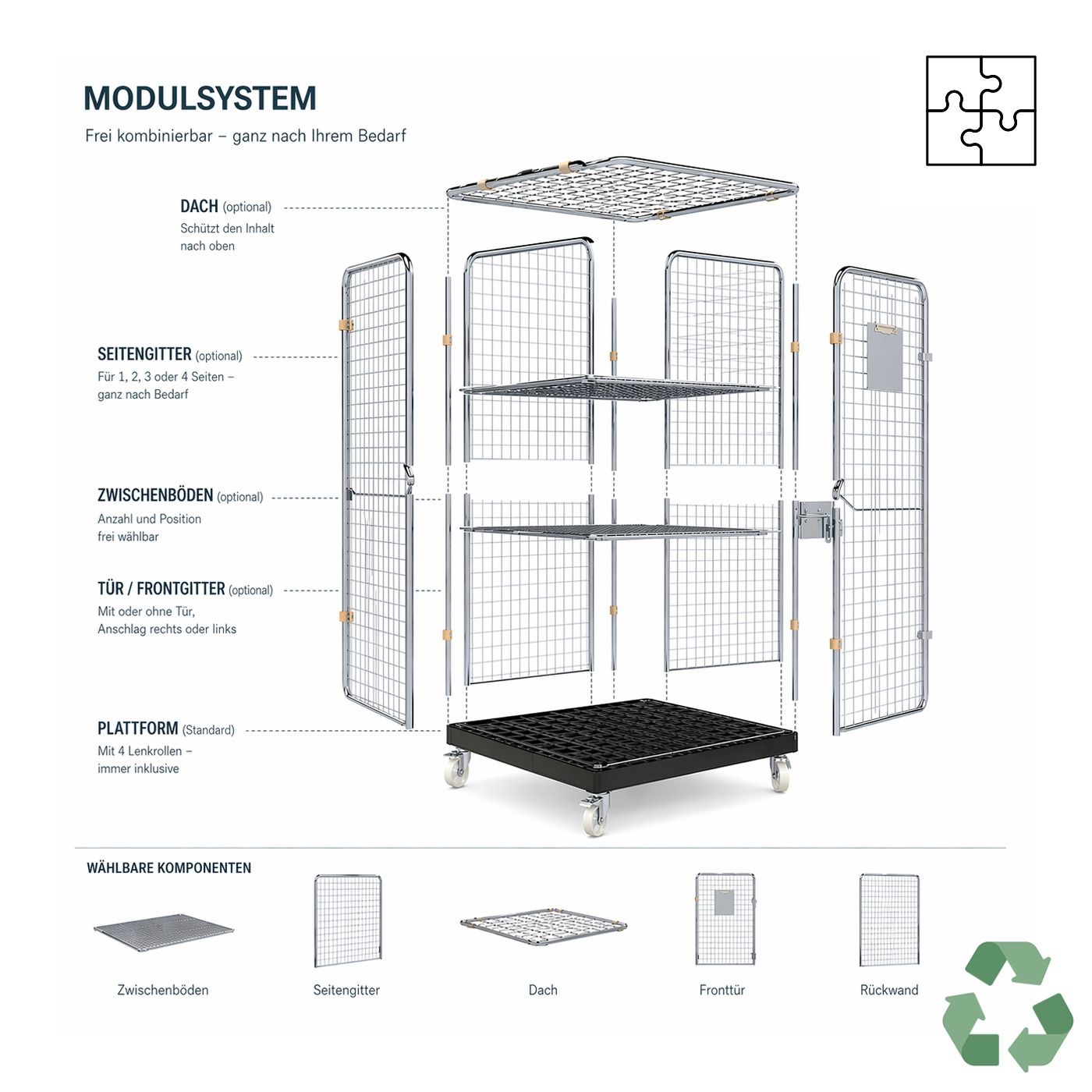

Part of the Ecoflex modular system

This configuration represents one of the most advanced setups within the Ecoflex modular system, offering maximum protection and stability.

At the same time, the system remains flexible: the roll container can be further adapted at any time – for example with doors for controlled access or intermediate shelves for additional levels and structured organization.

This allows you to build a solution that perfectly fits your operational needs.

Ecoflex adapts to your material flow – modular, flexible, and future-proof.



Your benefits at a glance

All-around protection
5-sided design with top grid for maximum load security.

Enhanced transport safety
Prevents slipping, falling, and uncontrolled movement of goods.

High load capacity
Base platform supports up to 500 kg.

Robust & durable
Recycled plastic platform and galvanized steel construction for daily use.

Expandable system
Fully compatible with all Ecoflex components.



Typical applications

• Warehousing and intralogistics
• Order picking
• Production and internal supply
• Transport of sensitive or valuable goods
• Goods staging and distribution



Conclusion

The Ecoflex base platform with 4 side panels and top grid offers maximum protection for transporting goods. It ensures secure and controlled processes while remaining fully adaptable within the Ecoflex modular system.



Would you like to learn more about this product?
Our team will be happy to advise you and help find the right solution for your operations.

Call us: +43 463 34114-0
or use our GESA webshop live chat.

GESA – your partner for intralogistics in Austria
