ROLLTAINER BASIC 3-SEITIG MIT 2 ZWB

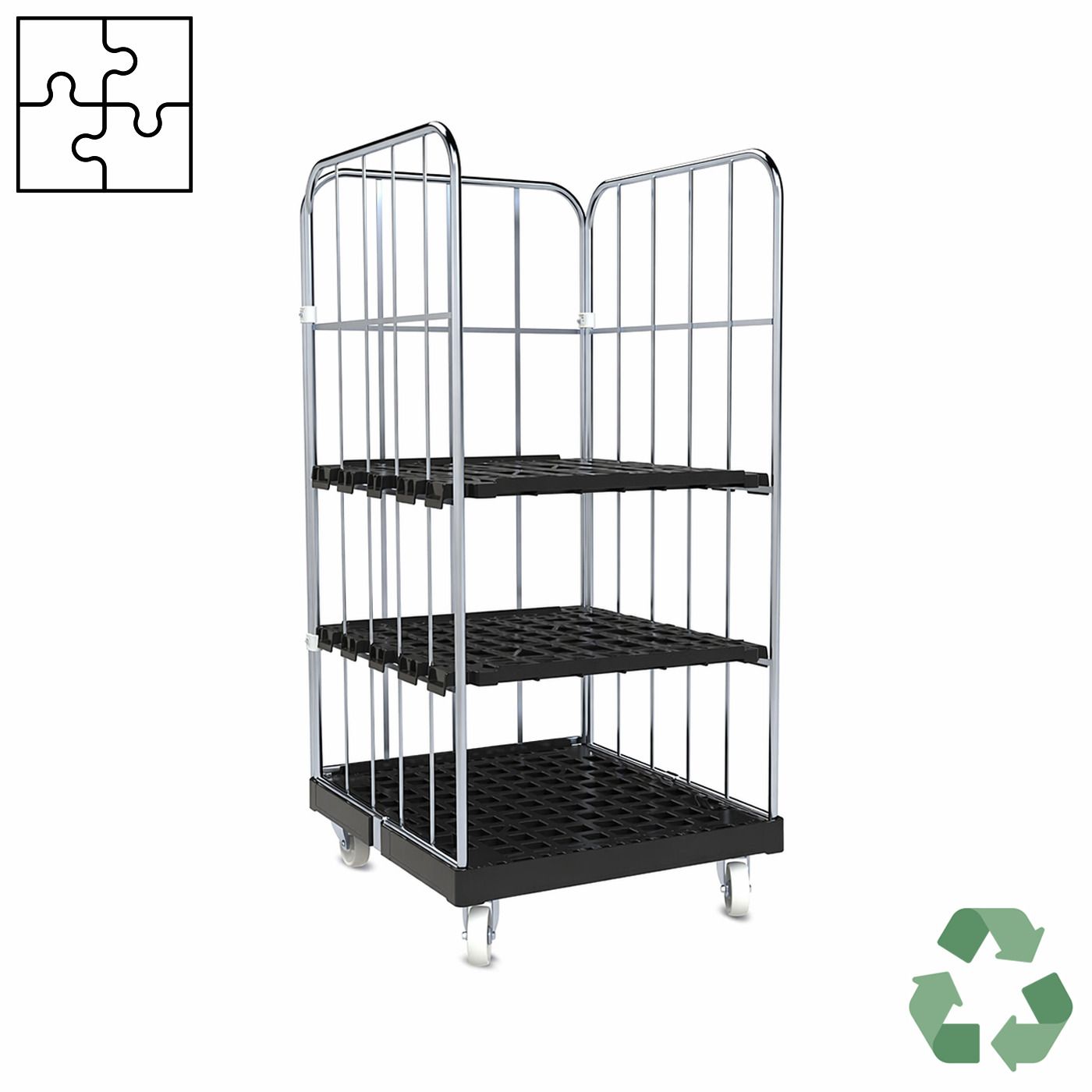

Ecoflex Modular Roll Container System Basic – Base Platform with 3 Side Panels and 2 Plastic Shelves

Maximum structure with enhanced stability

This version of the Ecoflex Basic modular system combines the robust base platform with three side panels and two plastic intermediate shelves. The result is a stable, multi-level transport solution that enables structured and efficient organization of goods.

Ideal for applications where items need to be clearly separated, securely guided, and efficiently handled across multiple levels.



Product components

This configuration consists of:

Base platform

• Load capacity up to 500 kg
• Dimensions: 724 × 815 × 192 mm
• Platform made from recycled plastic
• Wheels Ø 108 mm made of polypropylene
• 2 swivel castors / 2 fixed castors
• expandable within the Ecoflex system
• robust and durable for daily use

3 side panels including rear panel

• surface: Cr 3 blue galvanized
• increase transport safety, especially towards the rear
• provide stable load guidance
• ideal for taller or sensitive goods
• robust and durable construction
• easy integration into the Ecoflex Basic system

2 plastic intermediate shelves

• Load capacity per shelf: up to 150 kg
• Dimensions: 710 × 778 mm
• suitable for 2-, 3-, or 4-sided configurations
• reinforced with 3 flat steel bars
• create two additional loading levels
• improve organization and space utilization
• stable and durable design
• quick and easy installation



Efficient organization across multiple levels

The two intermediate shelves allow goods to be clearly structured across multiple levels. Items can be separated, organized, and picked efficiently, improving workflow and reducing handling time.

Combined with the rear panel, goods remain securely positioned during transport, minimizing shifting and ensuring stable processes.

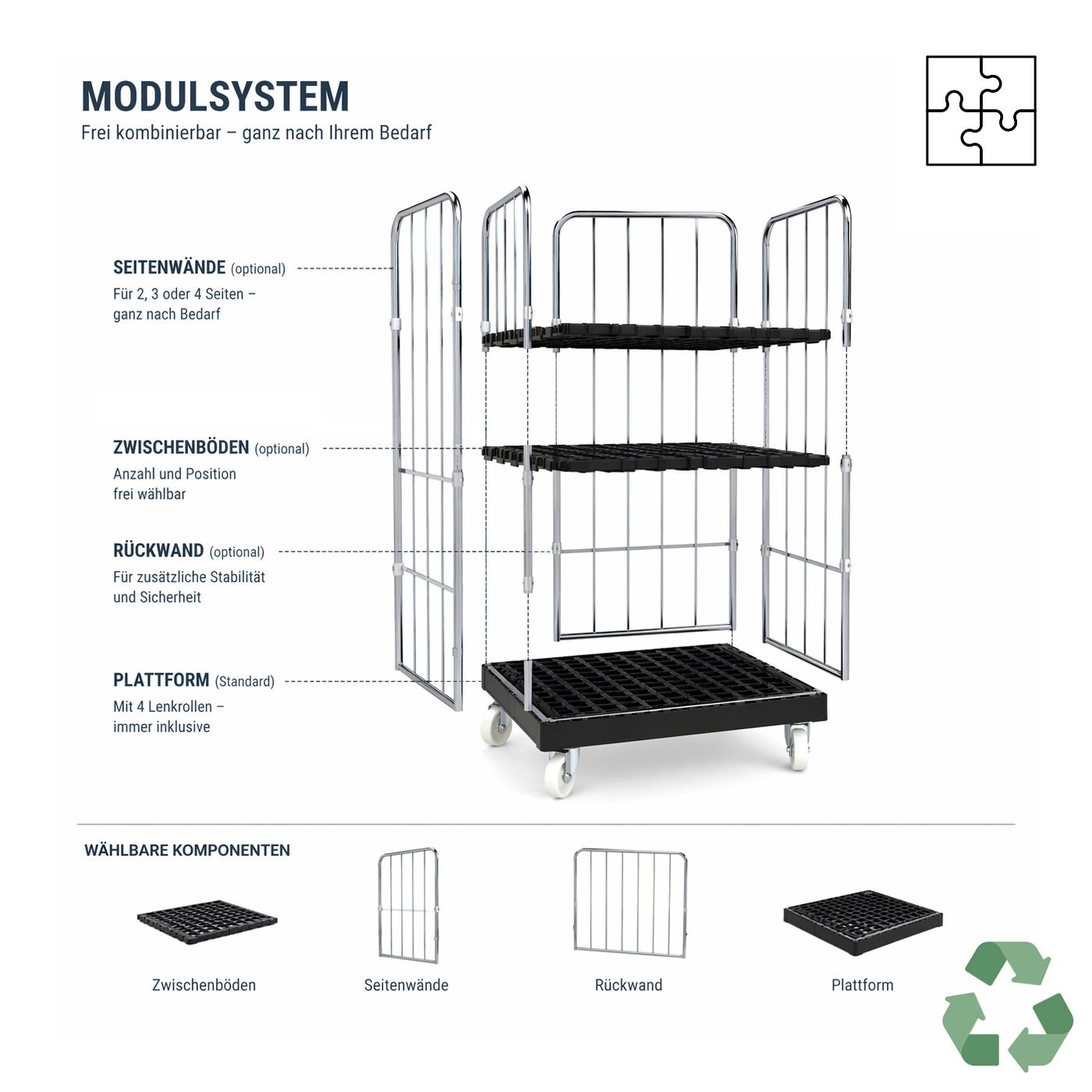

Part of the Ecoflex Basic system

This configuration is an advanced solution within the Ecoflex Basic system, combining stability with maximum structural organization.

At the same time, the system remains fully flexible: the roll container can be expanded at any time – for example with doors, additional shelves, or a top grid for increased protection.

This allows you to build a solution tailored precisely to your operational requirements.

Ecoflex adapts to your material flow – modular, flexible, and future-proof.



Your benefits at a glance

Maximum structure
Two shelves enable clear separation and optimal organization.

Improved transport stability
Rear panel prevents goods from shifting backwards.

Efficient order picking
Multi-level design improves workflows and visibility.

Optimized space utilization
Better use of available transport volume.

High load capacity
Base platform supports up to 500 kg.

Robust & durable
Recycled plastic platform and galvanized steel construction.

Expandable system
Fully compatible with all Ecoflex Basic components.

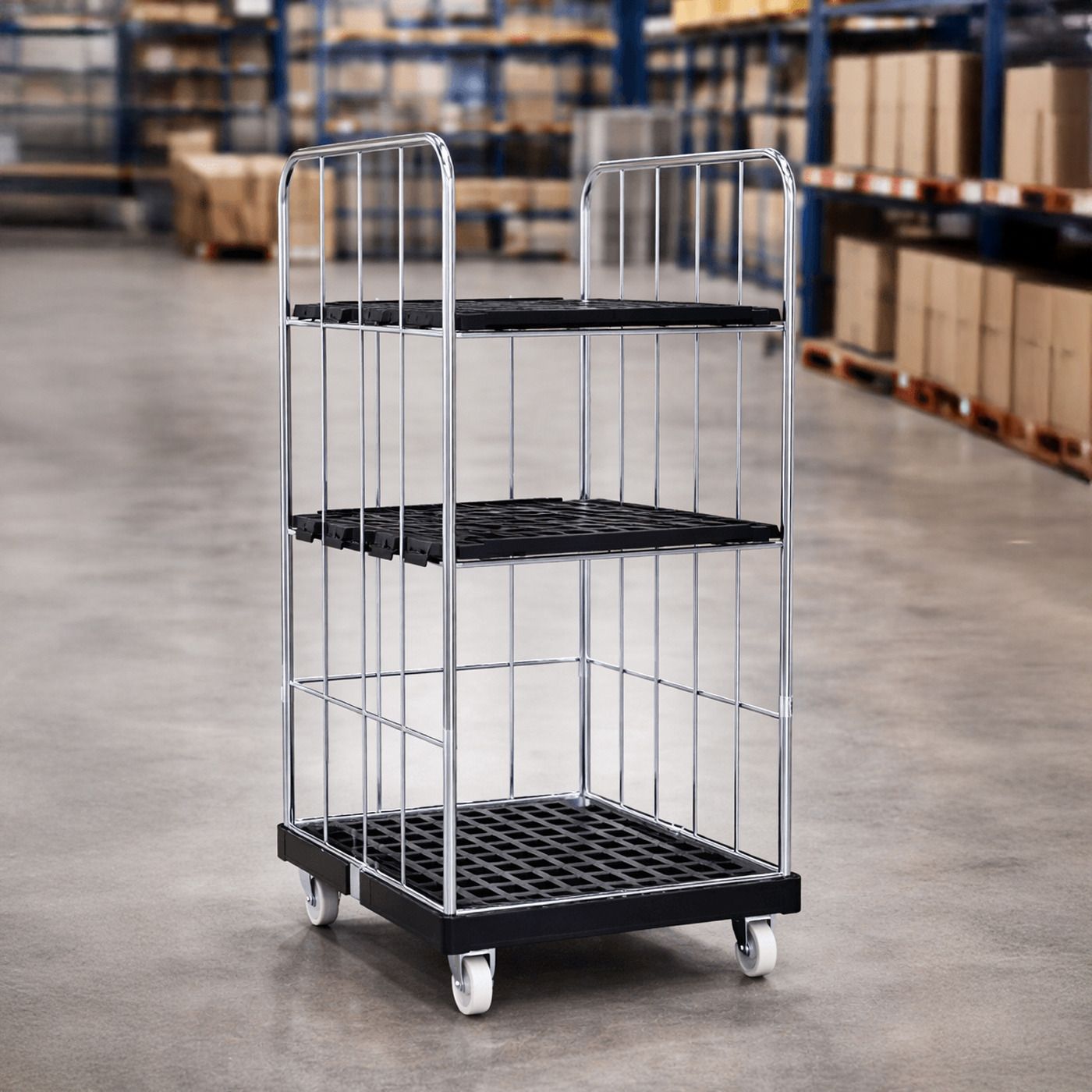

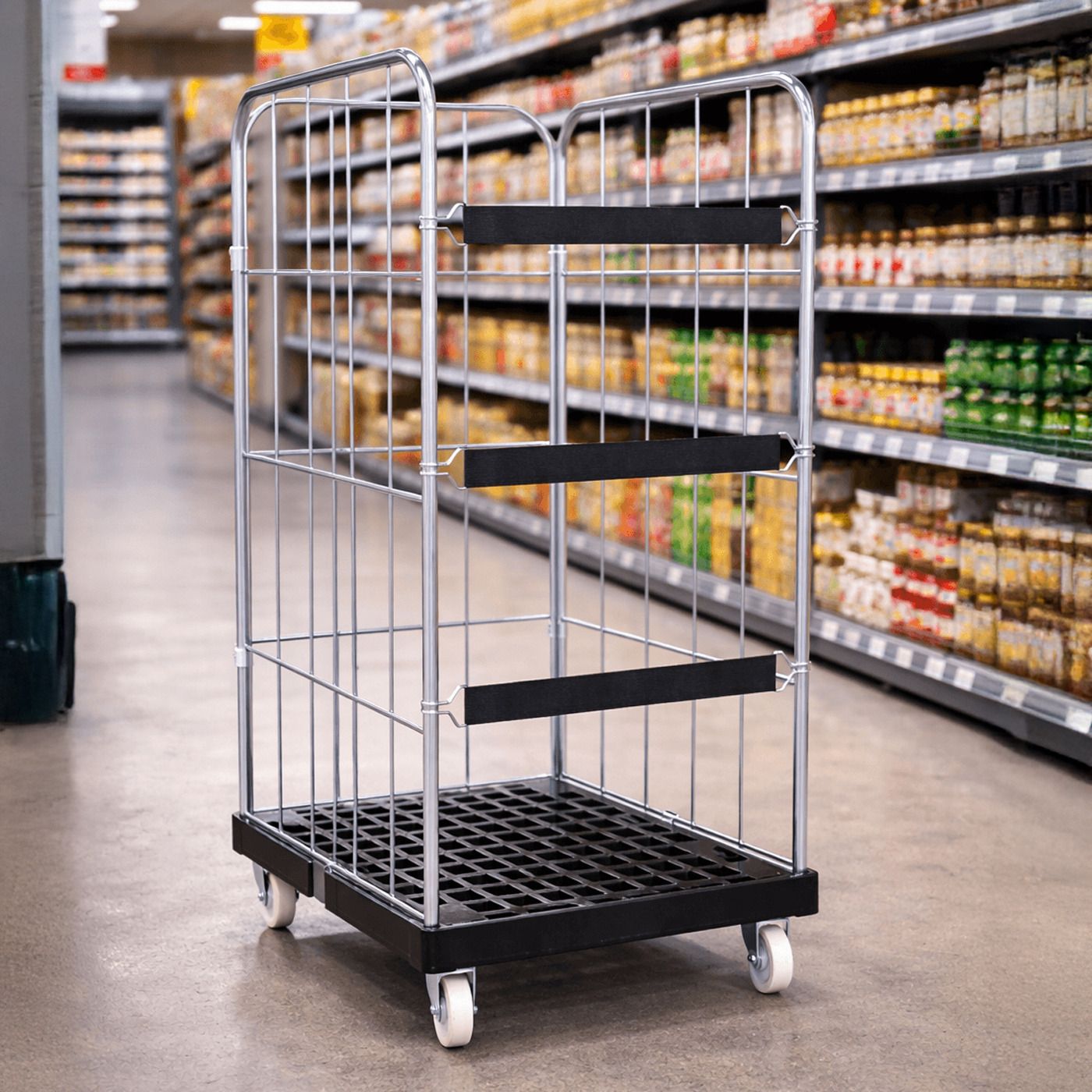

Typical applications

• Warehousing and intralogistics
• Order picking and route preparation
• Production and internal supply

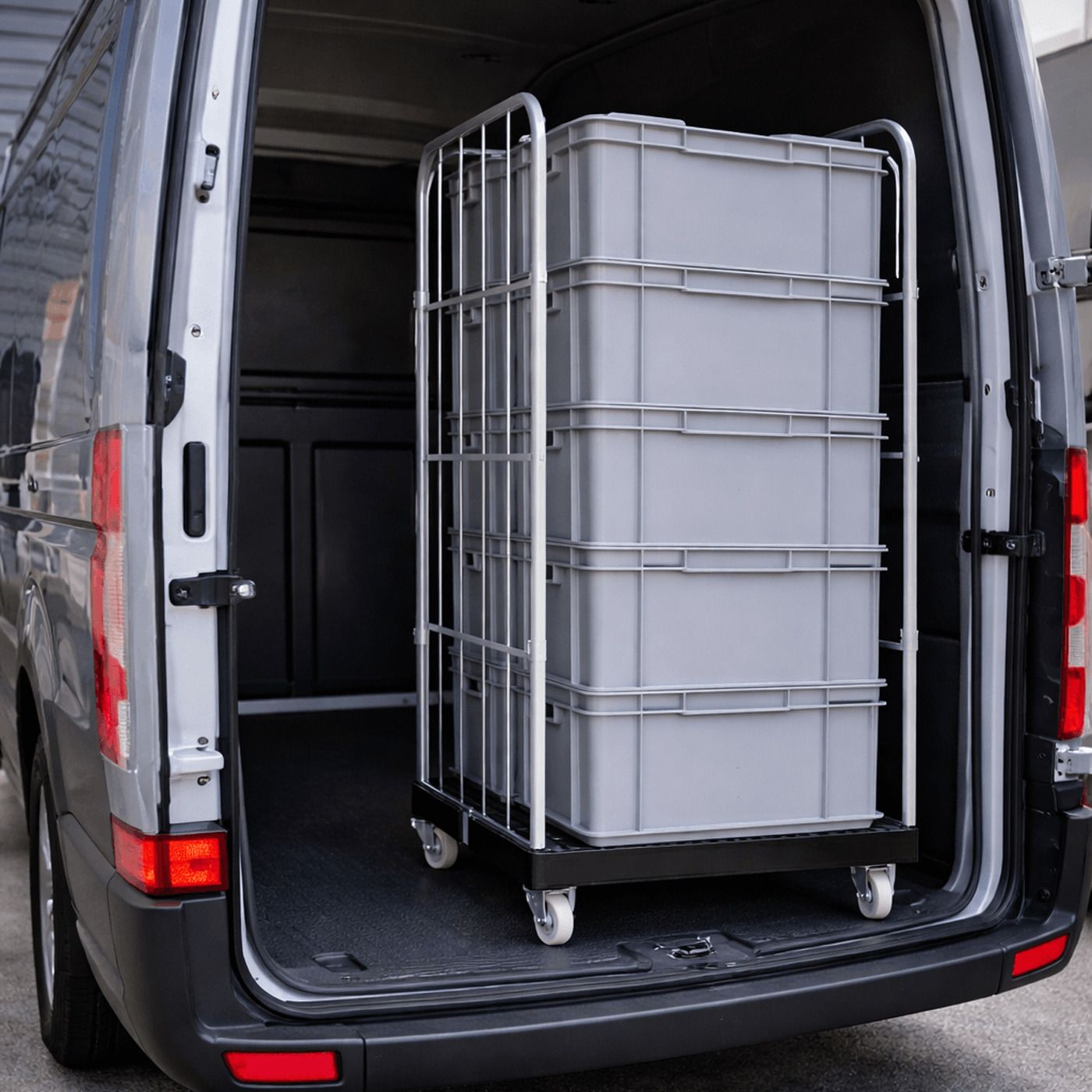

• Internal transport
• Transport of mixed or sensitive goods

Conclusion

The Ecoflex Basic roll container with base platform, 3 side panels and 2 plastic shelves offers maximum structure combined with enhanced stability. It ensures efficient workflows while remaining fully expandable within the Ecoflex system.
